CC1v2

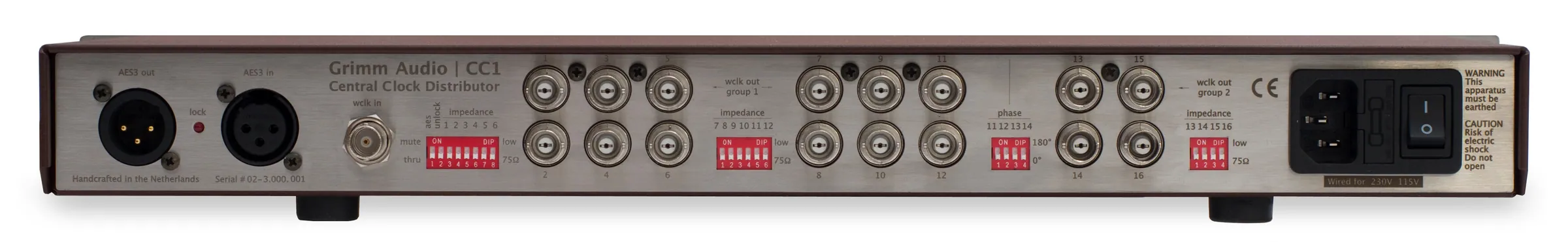

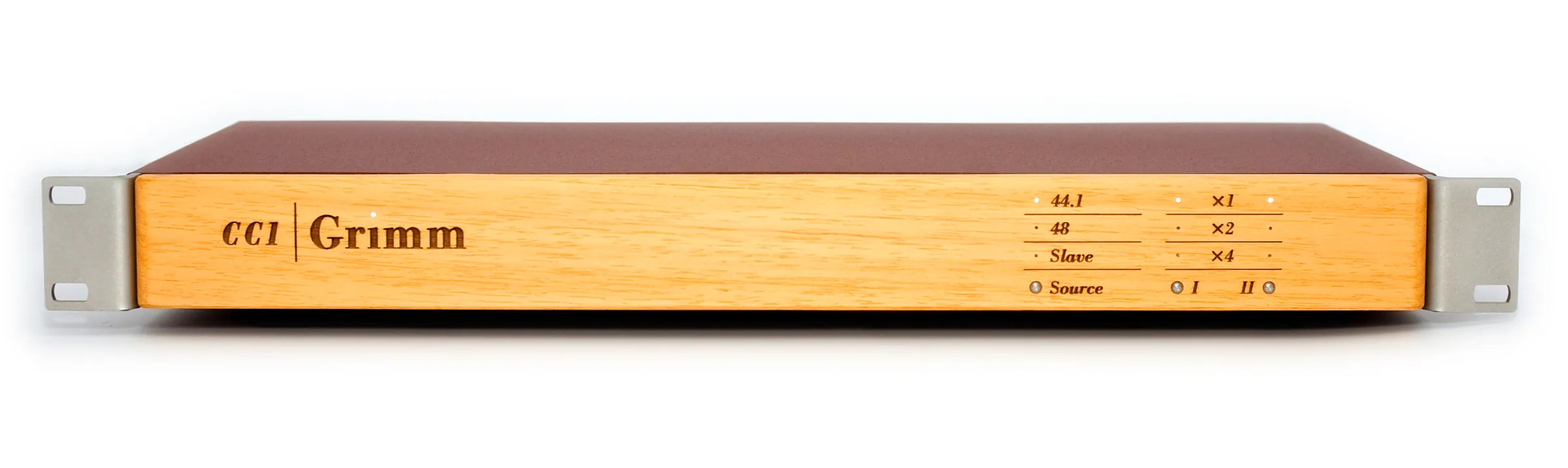

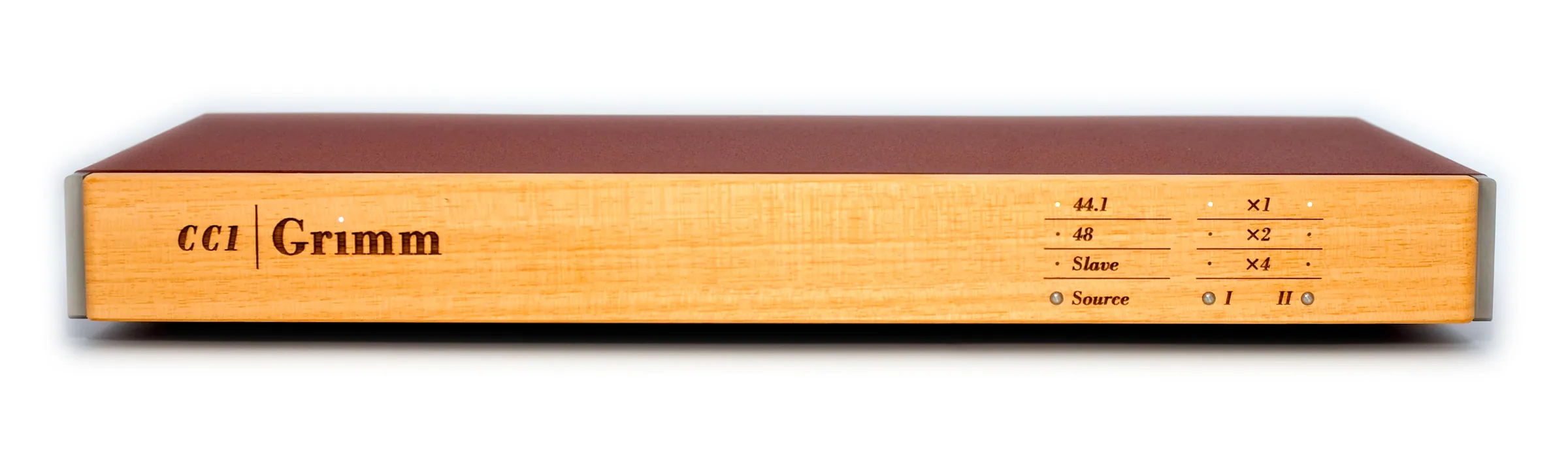

Grimm Audio CC1v2 reference word clock and AES3 sync distributor with ultra-low-jitter discrete oscillator.
fig. 01 · master clocks
CC1v2
7 photographs · 5 shown
From Grimm Audio
The CC1v2 distributes word clock and AES3 sync signals from a discrete crystal oscillator with stability beyond standard test equipment. In slave mode, its PLL suppresses jitter by 90 dB at 10 Hz. Base rates of 44.1 and 48 kHz with 2x and 4x multiples, plus an AES/EBU reclocker output.
Specifications
| Product type | Reference clock |
|---|---|
| Oscillator | Discrete crystal, ultra-low jitter |
| PLL jitter suppression | 90 dB at 10 Hz |
| PLL slope | 60 dB/decade |
| Base rates | 44.1 kHz and 48 kHz |
| Multiples | 1x, 2x, 4x (two selectable groups) |
| Outputs | Word clock and AES3 sync |
| Reclocker | AES/EBU |
