Grimm Audio · Master Clocks
CC2
Grimm Audio CC2 compact reference clock with sub-picosecond jitter for studio and audiophile digital audio.
fig. 01 · master clocks
CC2
From Grimm Audio

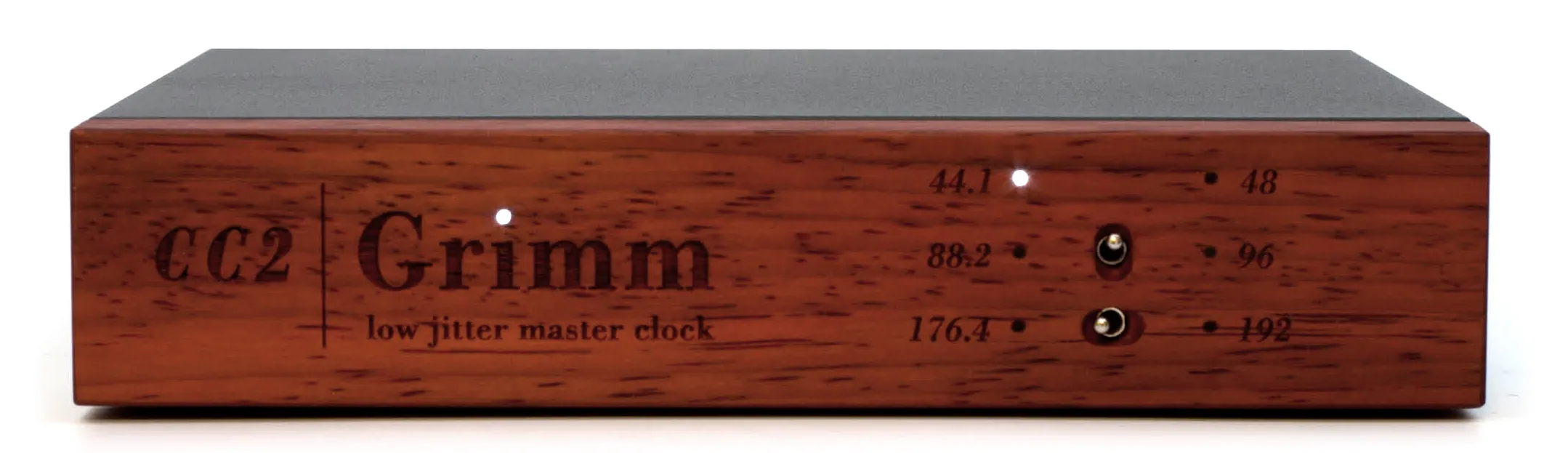

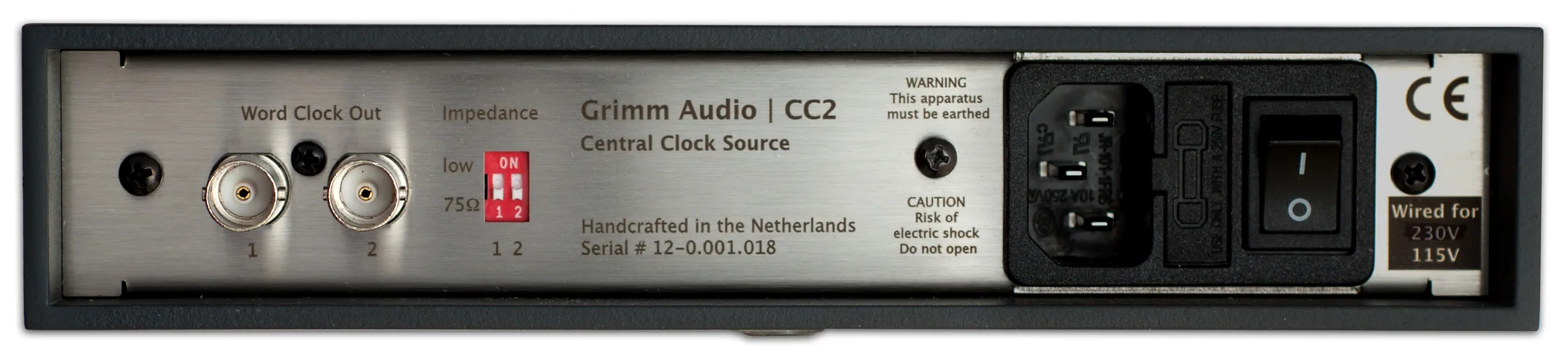

The CC2 puts Grimm's ultra-low-jitter clock oscillator (below 1 ps RMS from 10 Hz upward) into a compact chassis with a real wood front. Two BNC 75 ohm / 10 ohm outputs support all standard sample rates. Dimensions are 200 x 40 x 140 mm, with an optional 19-inch rack mount.
Specifications
| Product type | Reference clock |
|---|---|
| Jitter | <1 ps RMS (from 10 Hz) |
| Outputs | 2 BNC (75 ohm / 10 ohm) |
| Sample rates | All standard rates |
| Dimensions | 200 x 40 x 140 mm (W x H x D) |
| Front | Real wood |
| Rack mount | Optional 19-inch |
| Warranty | 5 years |
