Grimm Audio · Speakers · Active Speakers
LS1v2

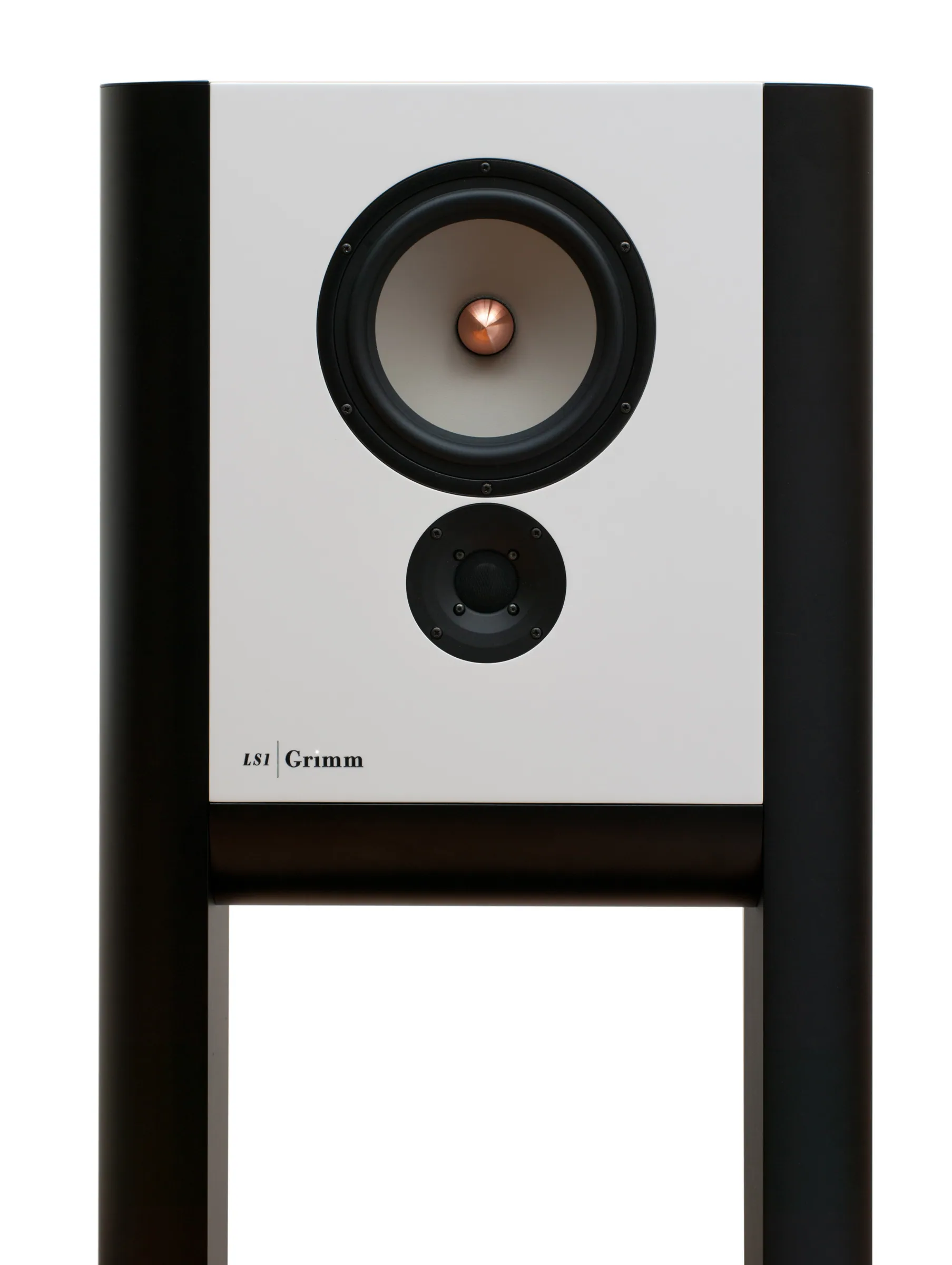

Grimm Audio LS1v2 active loudspeaker with magnesium Seas woofer and Seas DXT tweeter, the updated LS1 original.
fig. 01 · speakers
LS1v2
7 photographs · 5 shown
From Grimm Audio

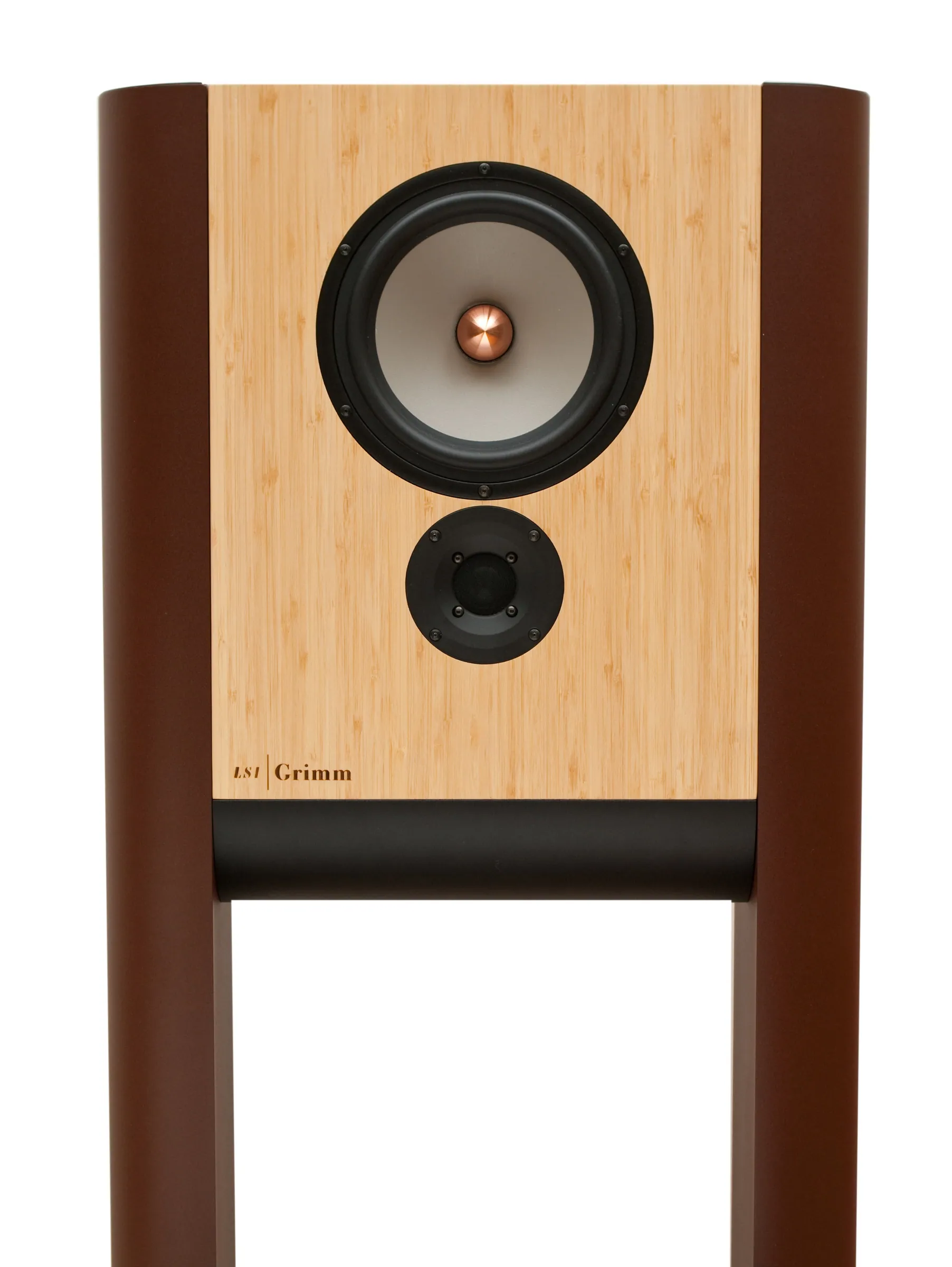

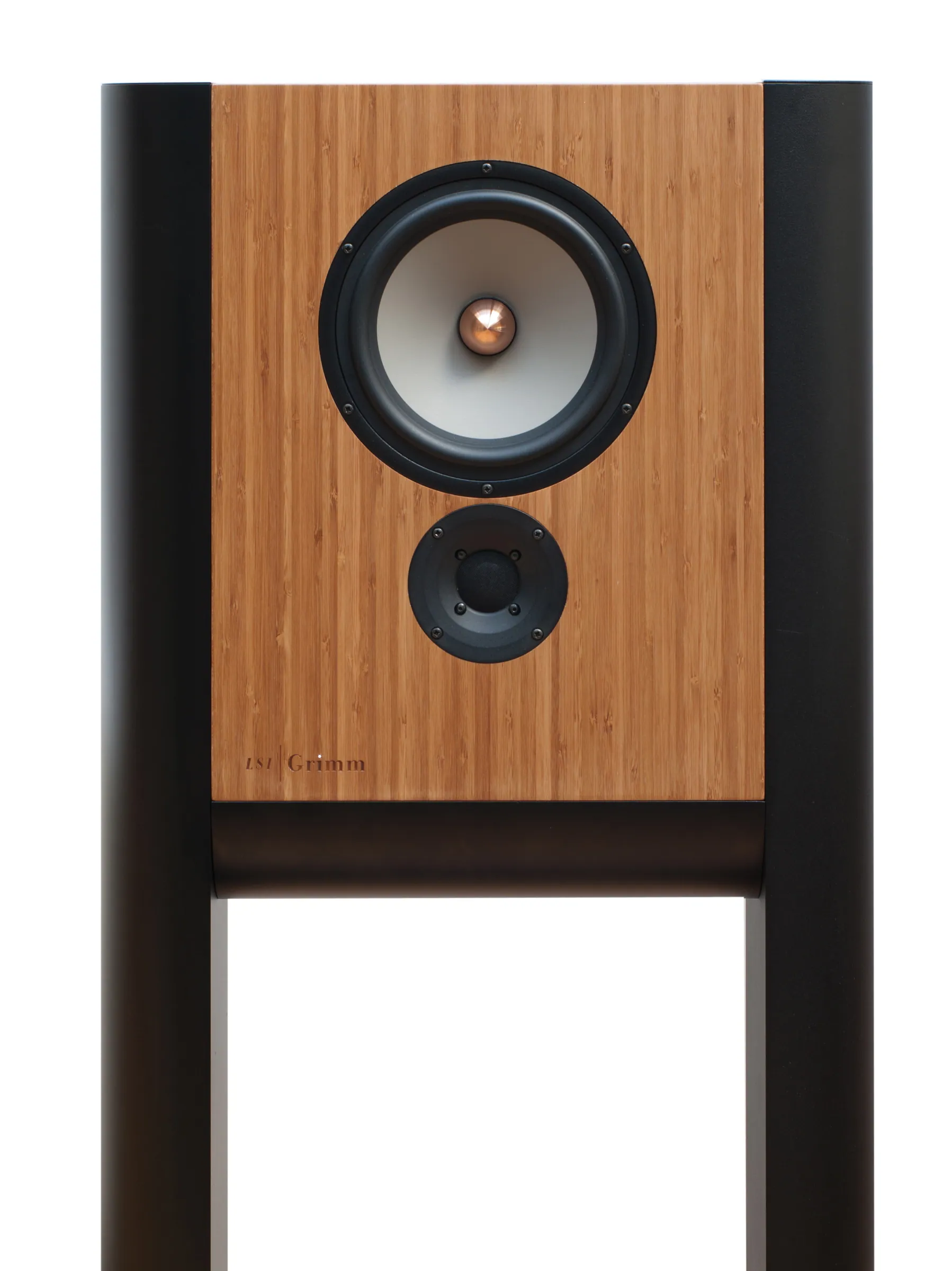

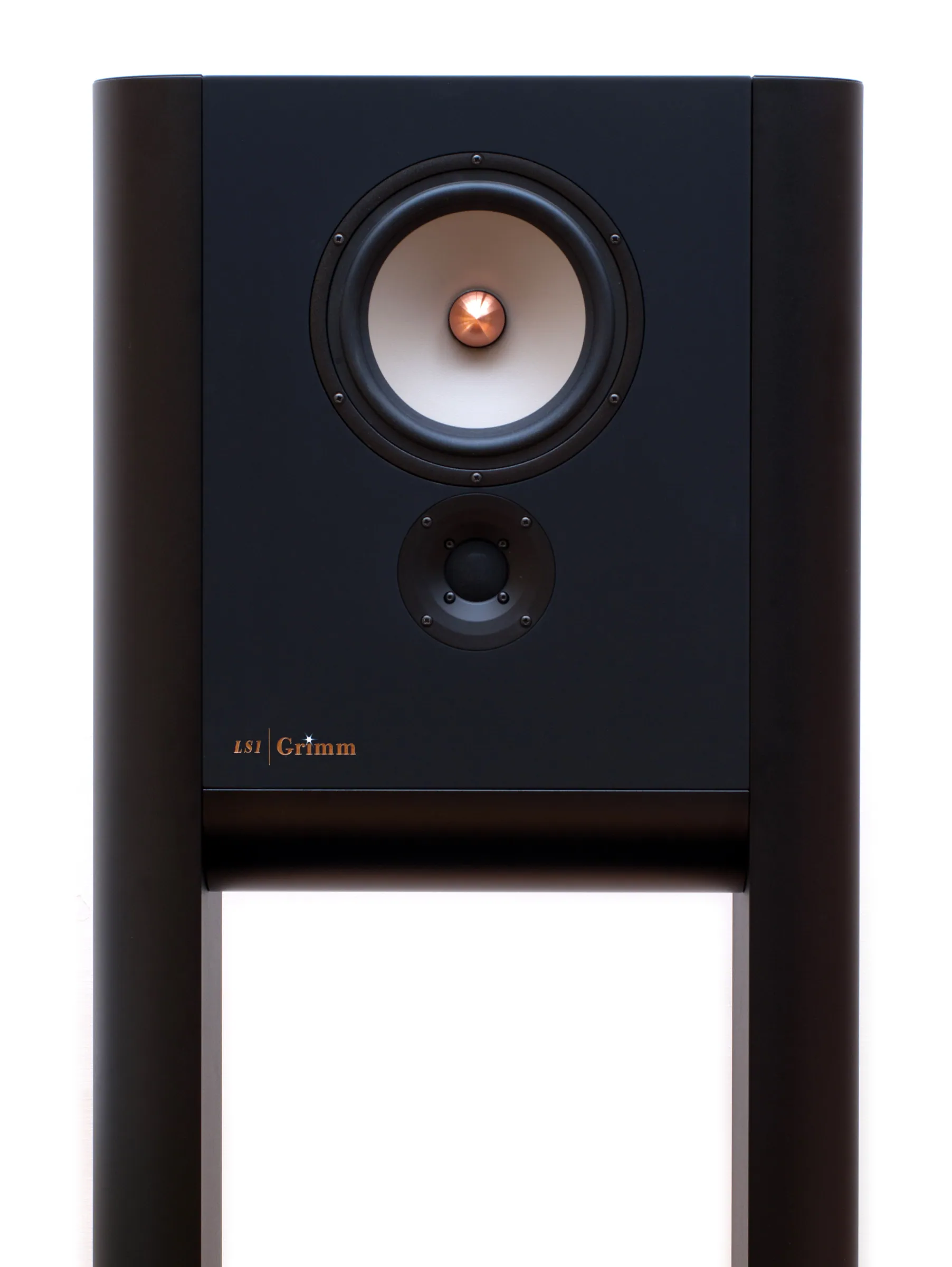

The LS1v2 is the updated original in Grimm's LS1 series, combining DSP correction, built-in converters, and optimized NCore amplifiers. It pairs a magnesium Seas woofer with a Seas DXT tweeter and a heavy footplate, available in bamboo or lacquer finish.
Specifications
| Product type | Active loudspeaker |
|---|---|
| Woofer | Magnesium (Seas) |
| Tweeter | DXT (Seas) |
| Amplification | Optimized NCore |
| Finish | Bamboo or lacquer |
| Frequency response | 20 Hz - 20 kHz +/-3 dB |
| Amplifier power | 250 + 100 W per side |
| Max SPL | 105 dB |
| SNR | 114 dB (unweighted) |
| Dimensions | 1150 x 520 x 160 mm (H x W x D) |
