Grimm Audio · Studio Electronics
MP1

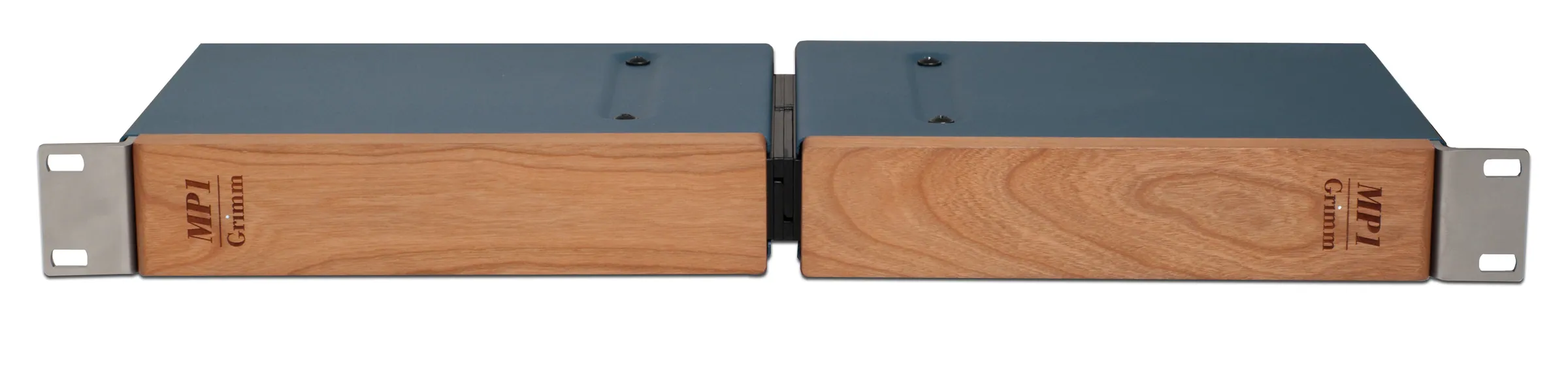

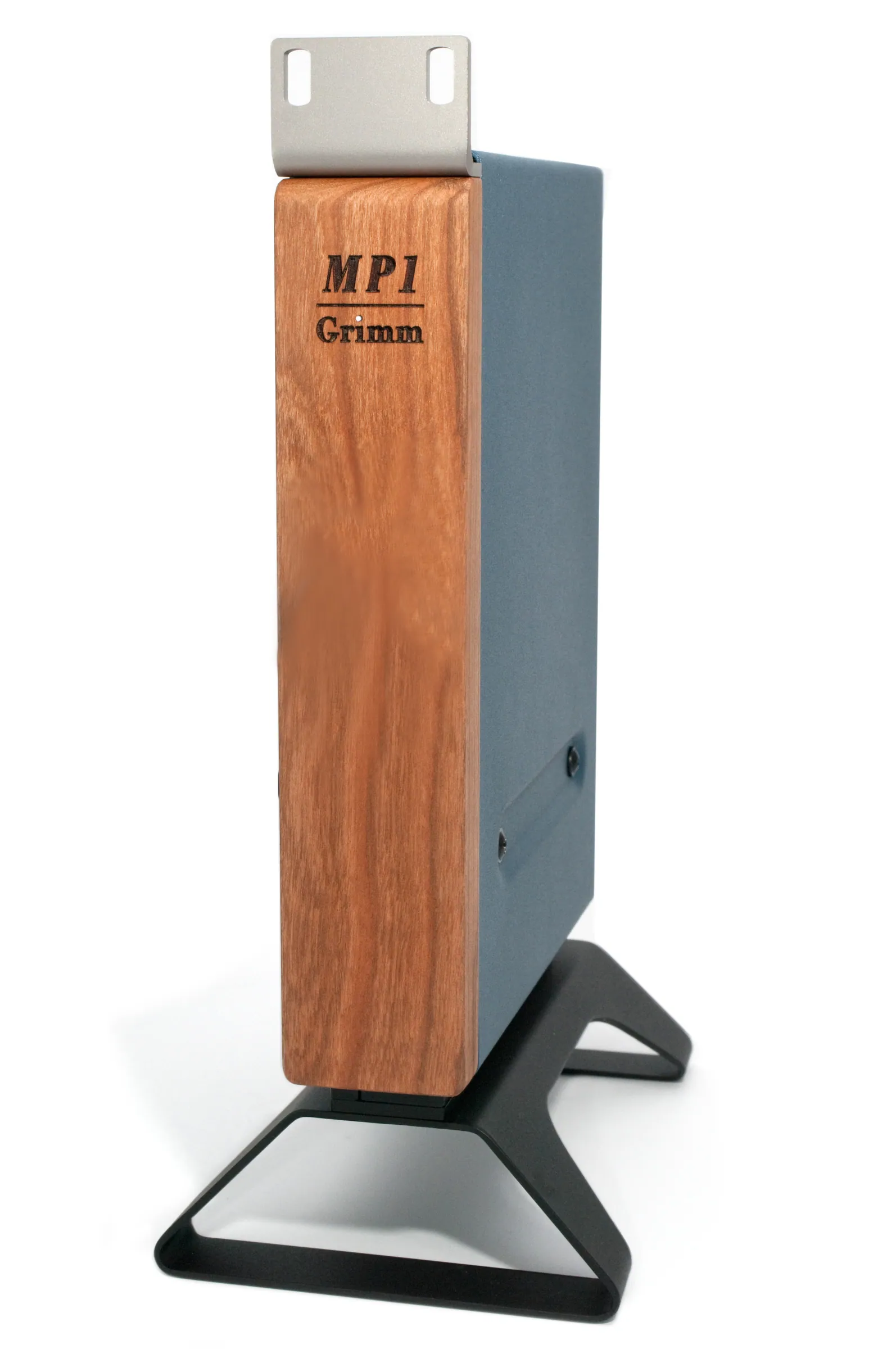

Grimm Audio MP1 tube microphone power supply with discrete anode and filament regulators.
fig. 01 · studio electronics
MP1
From Grimm Audio
The MP1 replaces a tube microphone's stock power supply with discrete shunt regulators in both the anode and filament circuits. Anode supply noise reaches -100 dBV, roughly 20 dB below conventional supplies, and the shunt design eliminates electrolytics. Voltages are factory pre-set to match the customer's microphone.
Specifications
| Product type | Tube microphone power supply |
|---|---|
| Regulator type | Discrete shunt (anode and filament) |
| Anode noise | -100 dBV |
| Noise improvement | ~20 dB below conventional supplies |
| Voltage setting | Factory pre-set to customer microphone |
