UC1
Grimm Audio UC1 USB audio interface and monitor controller with 18-channel I/O and sub-picosecond jitter.
fig. 01 · studio electronics
UC1
7 photographs · 5 shown
From Grimm Audio

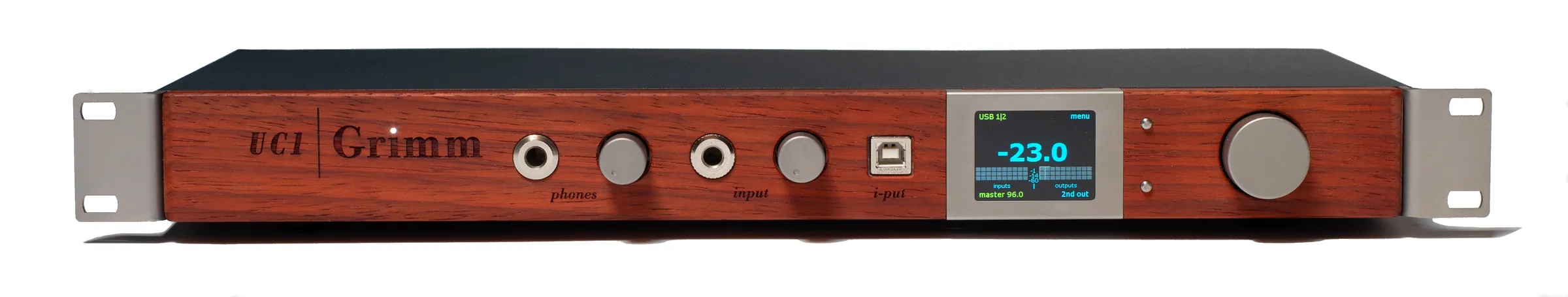

The UC1 combines a USB audio interface with a monitor controller. It carries 18 channels of USB I/O, AD/DA circuitry matching the LS1 series, and clock jitter below 0.6 ps RMS. Outputs cover headphones, two speaker pairs, and analog and digital insert loops. A front-panel USB input accepts tablets and smartphones.
Specifications
| Product type | USB audio interface / monitor controller |
|---|---|
| USB I/O | 18 channels (rear) + stereo (front) |
| Clock jitter | <0.6 ps RMS (>10 Hz) |
| PLL | Hybrid (fast lock, high jitter suppression) |
| Output THD+N | -100 dB |
| Output SNR | 114 dB |
| Output clip level | +18 dBu |
| Input THD+N | -105 dB |
| Input SNR | 115 dB |
| Input clip level | +18 dBu (XLR settable to +24 dBu) |

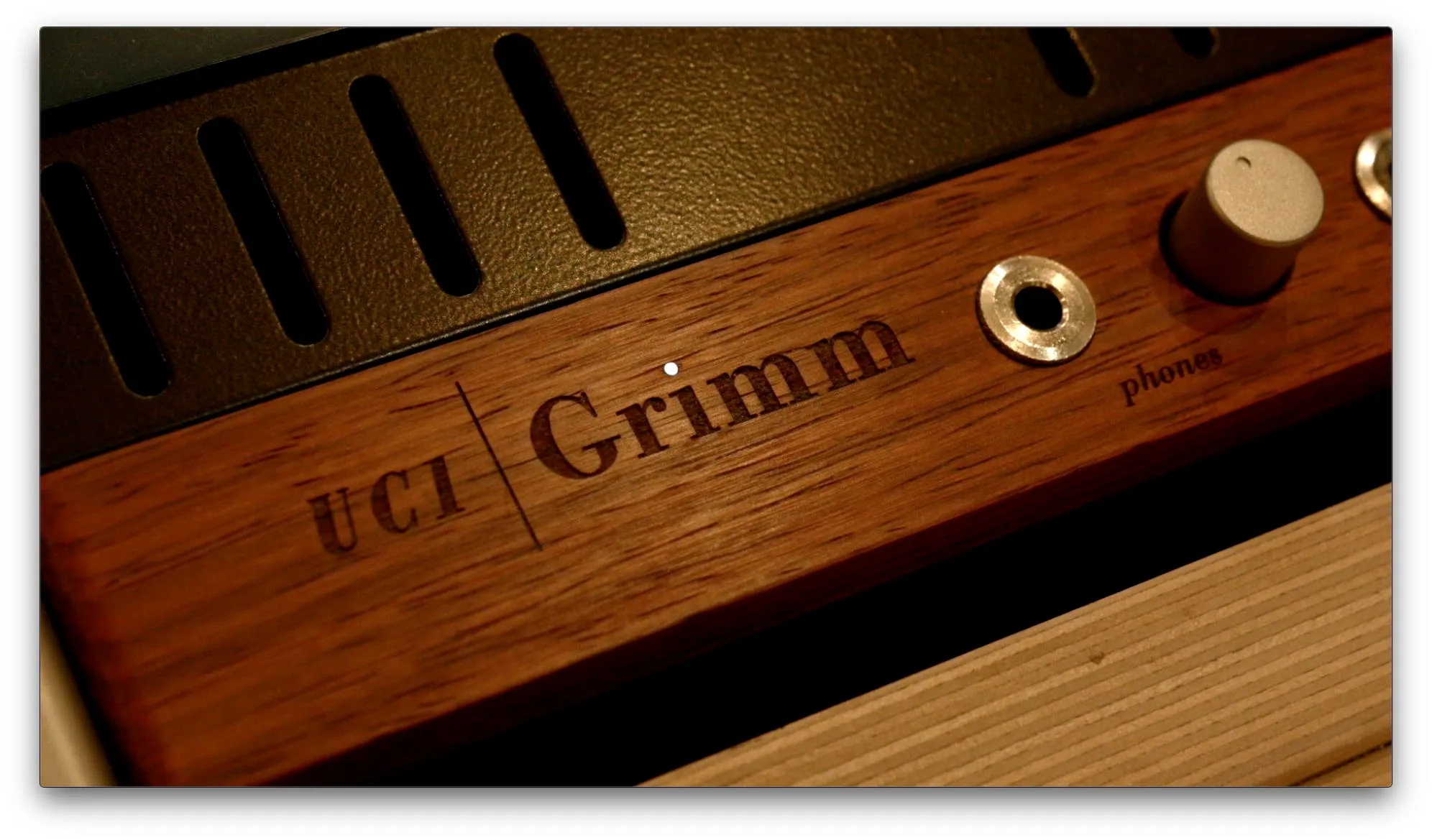

| Headphone output | 6.3 mm, max 15 dBu in 600 ohm |
| Word clock | BNC 75 ohm / 5 V |
| Sample rates | All standard PCM rates |
| Front | Padauk wood |
| Warranty | 5 years |
