A200
The A200 is Hegel's fully analog stereo amplifier with 2x150W, balanced and unbalanced inputs, and a built-in phono stage.
fig. 01 · integrated amplifiers
A200
From Hegel
The A200 is the analog counterpart to the H200. No DAC, no streaming, no digital inputs. Just amplification.
It outputs 2x150W into 8 ohms from a dual-mono power supply, with a 2-ohm minimum load. Inputs include two balanced XLR, two unbalanced RCA, and a moving-magnet phono stage. A home theater bypass is also on board.
Hegel positions this alongside the H200 as two paths: one connected, one fully analog. The A200 is the analog path.
Specifications
| Power output | 2x150W into 8 Ohms @ 1kHz 1% THD , 100/120/230V AC |
|---|---|
| Minimum load | 2 ohms |

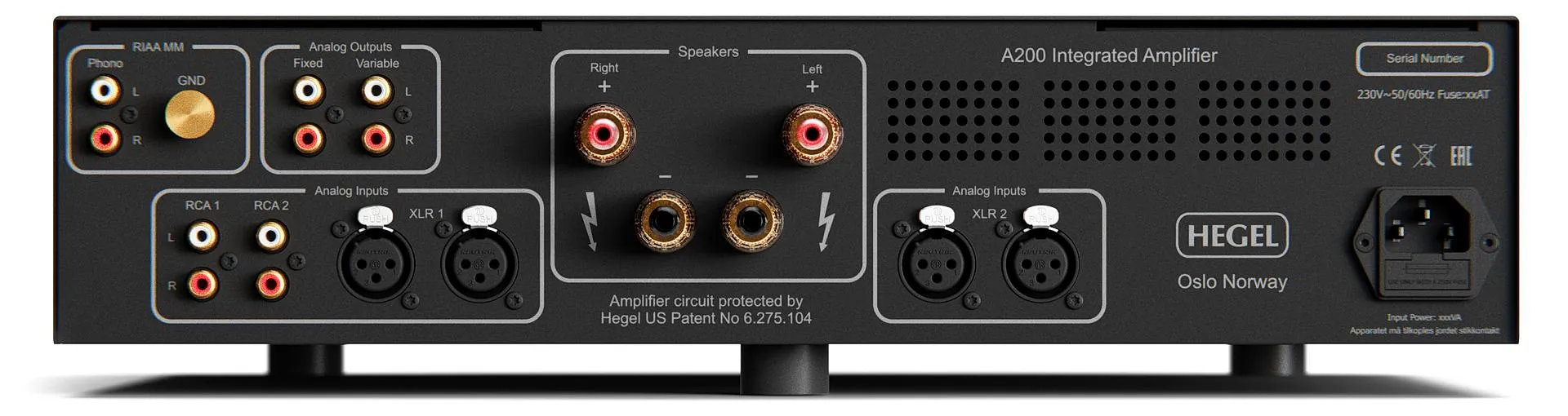

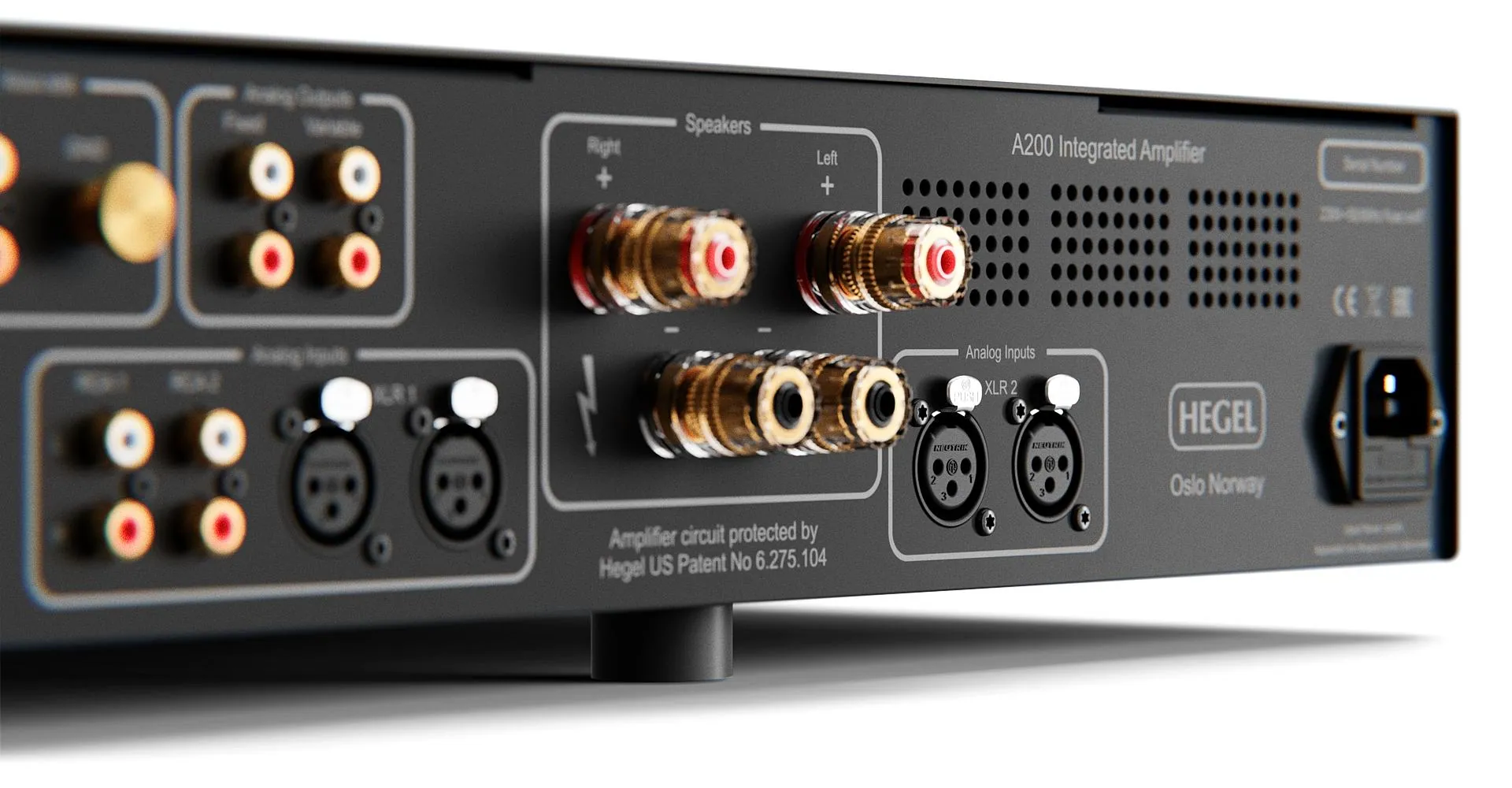

| Analog inputs | 2x Balanced (XLR), 2x Unbalanced (RCA) |
| Phono input | 1 x Unbalanced (RCA) for Moving Magnet (MM) |
| Line level outputs | 1x Unbalanced variable (RCA), 1x Unbalanced fixed (RCA) |
| Frequency response | 5Hz-100kHz |
| Signal-to-noise ratio | More than 100dB |
| Crosstalk | Less than -100dB |
| Distortion | Less than 0.01% @ 50W 8 Ohms 1kHz |
| Intermodulation | Less than 0.01% (19kHz + 20kHz) |
| Damping factor | More than 4000 (main power output stage) |
| Dimensions/weight | 43 x 41 x 12 cm (WxDxH), 13.5 kg |
| Dimensions/weight US | 17 x 16.2 x 4.7" (WxDxH), 29.8 lbs |
