C53
The C53 is a 3-channel power amplifier from Hegel's custom install series, delivering 3x150W into 8 ohms.
fig. 01 · power amplifiers
C53
From Hegel

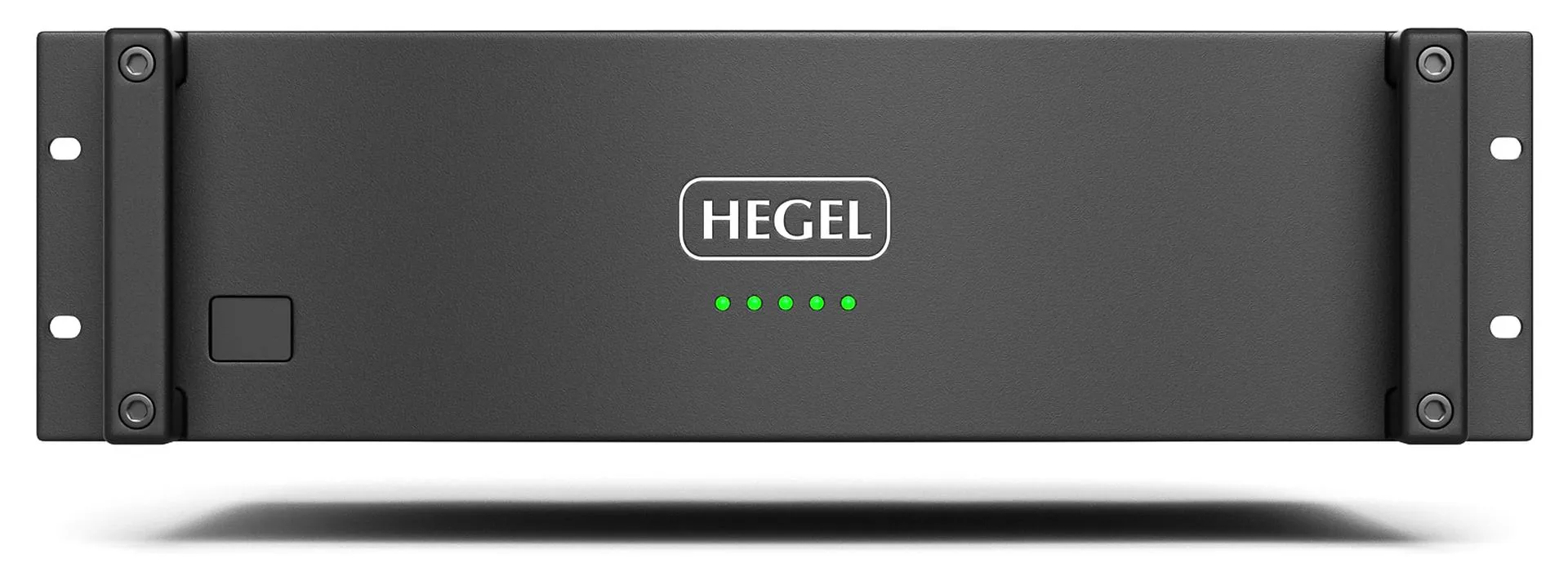

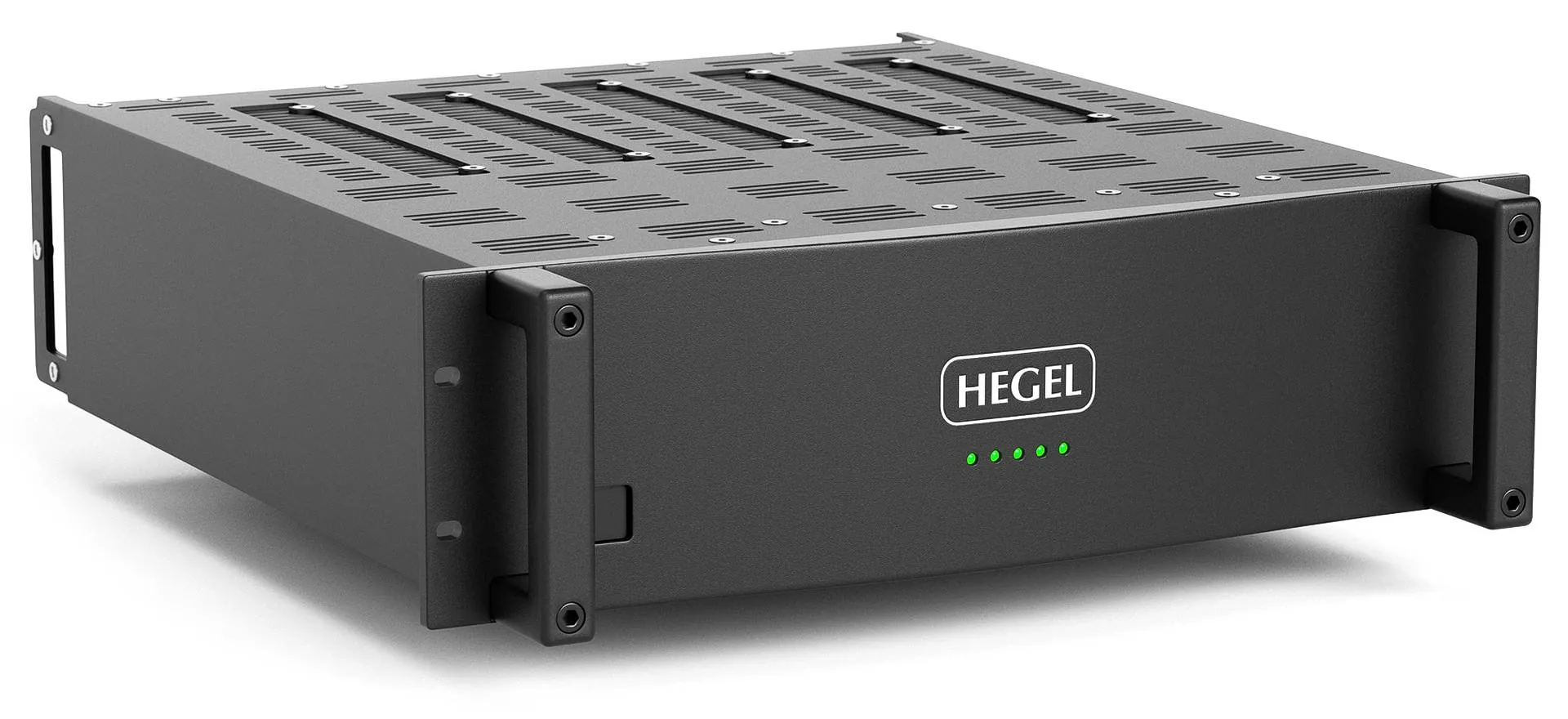

The C53 is a rack-mountable 3-channel amplifier built for custom installations. Each channel delivers 150W into 8 ohms, 300W into 4 ohms, or 600W into 2 ohms.

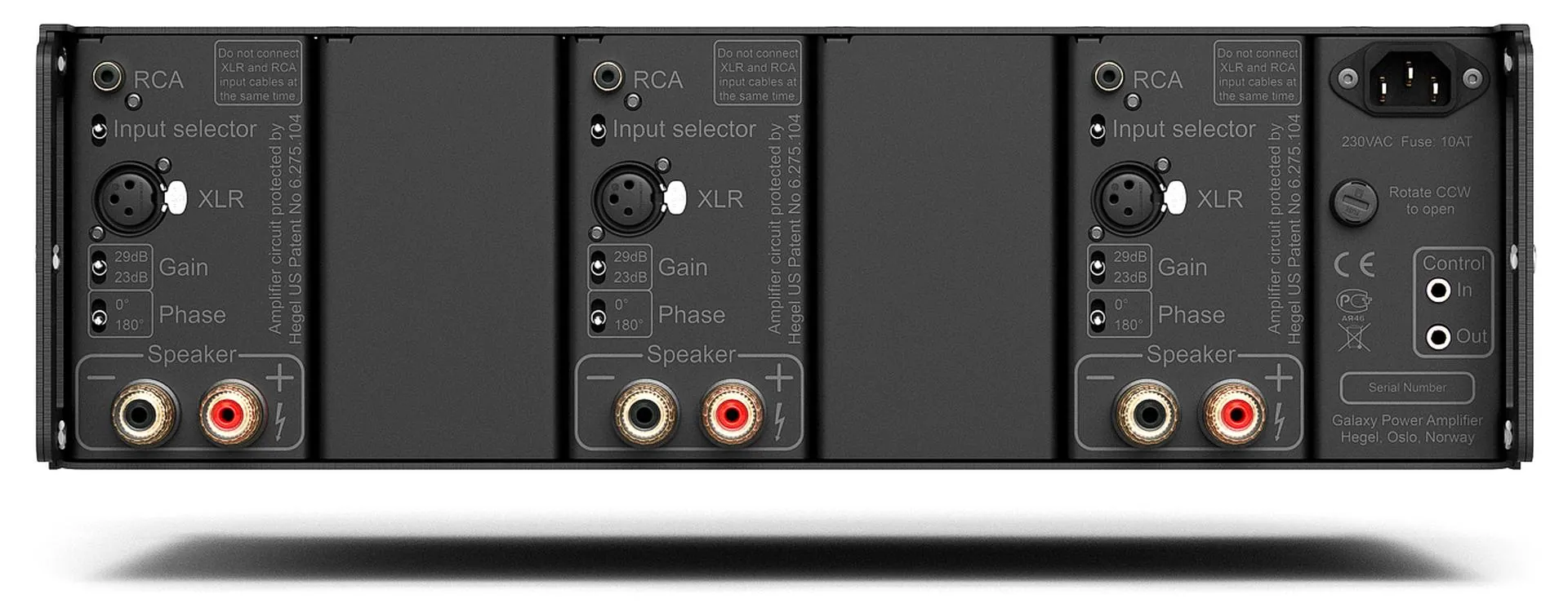

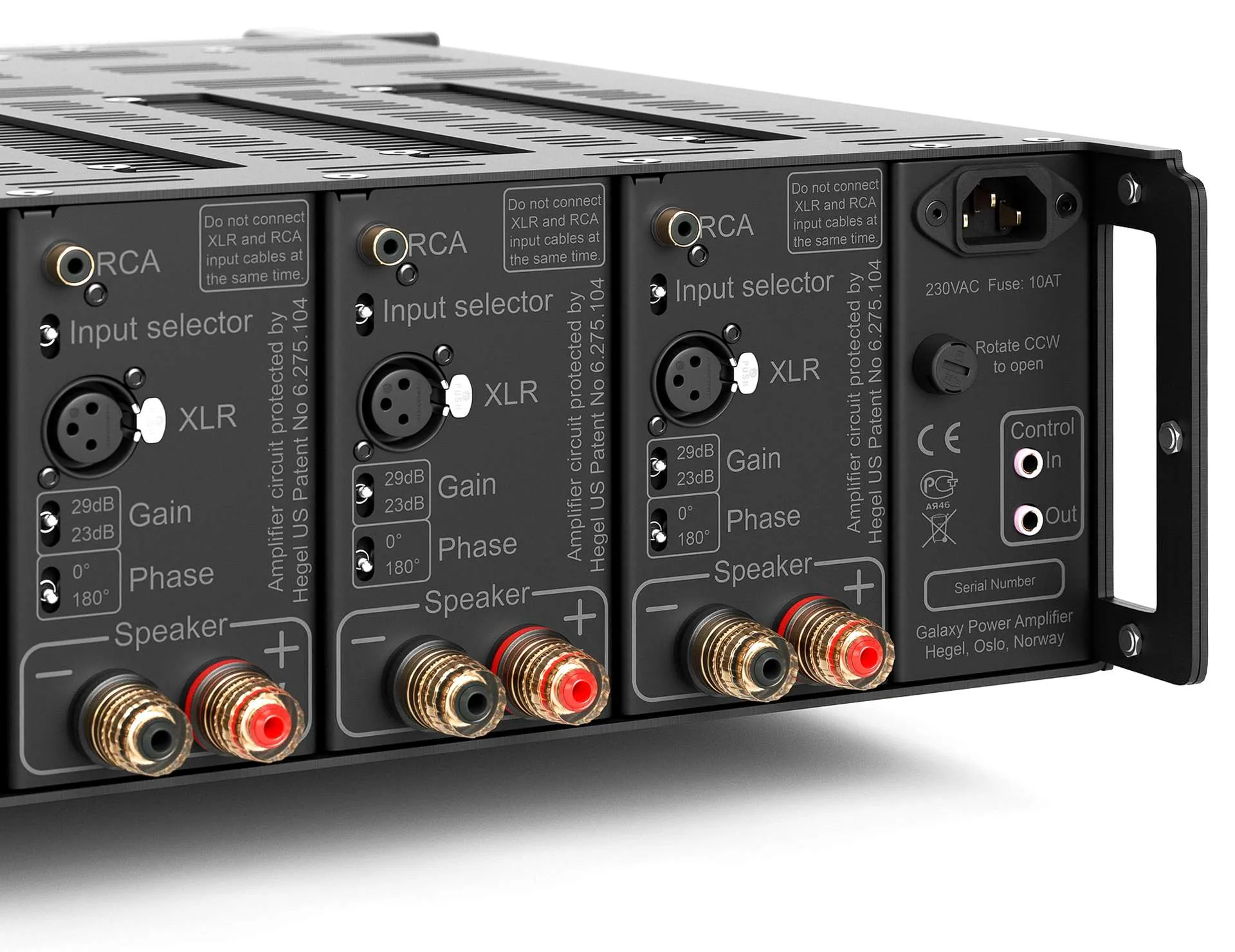

Inputs include three balanced XLR and three unbalanced RCA. Control connections cover 5V triggers, RS232, IP, and IR. The chassis is a standard 2U rack height.
It's the 3-channel option in the C5 series, which also includes 4-channel (C54) and 5-channel (C55) versions.
Specifications
| Power output | 3 x 150/300/600 W into 8/4/2 ohms @ 1kHz 1% THD, 100/120/230V AC |
|---|---|
| Minimum load | 2 ohms |
| Analog Inputs | 3 x balanced (XLR), 3 x unbalanced (RCA) |
| Control Inputs | 1 x mini-jack 5-12 V trigger |
| Control Outputs | 1 x mini-jack 11,9 V trigger out |
| Gain control | Switchable between 23 dB or 29 dB (individual) |
| Phase control | Switchable 1/180 (individual) |
| Frequency response | 5 Hz - 100 kHz |
| Signal-to-noise ratio | More than 100 dB |
| Crosstalk | Less than -100 dB |
| Distortion | Less than 0.01% @ 100W 8 Ohms 1 kHz |
| Intermodulation | Less than 0.01% (19 kHz + 20 kHz) |
| Damping factor | More than 2000 (main power output stage) |
| Net Weight | 28,5 kg |
| Gross Weight | 34 kg |
| Net Weight US | 61 lbs |
| Gross Weight US | 75 lbs |
| Dimensions note | For precise installation dimensions, refer to user manual |
| Dimensions | 48,2 cm x 13,2 cm x 52 cm (BxHxD incl handles, ex feet) |
| Dimensions US | 18.97 in x 5.2 in x 20.47 in (BxHxD incl handles, ex feet) |
| Special features | Balanced and unbalanced inputs, Trigger in/out, Modular design, Adjustable rear rack mount, Gain & Phase selectors |
