D50
The D50 is Hegel's standalone DAC with AES/EBU, coaxial, optical, USB, and network inputs including MQA 8x decoding.
fig. 01 · dacs
D50
6 photographs · 5 shown
From Hegel

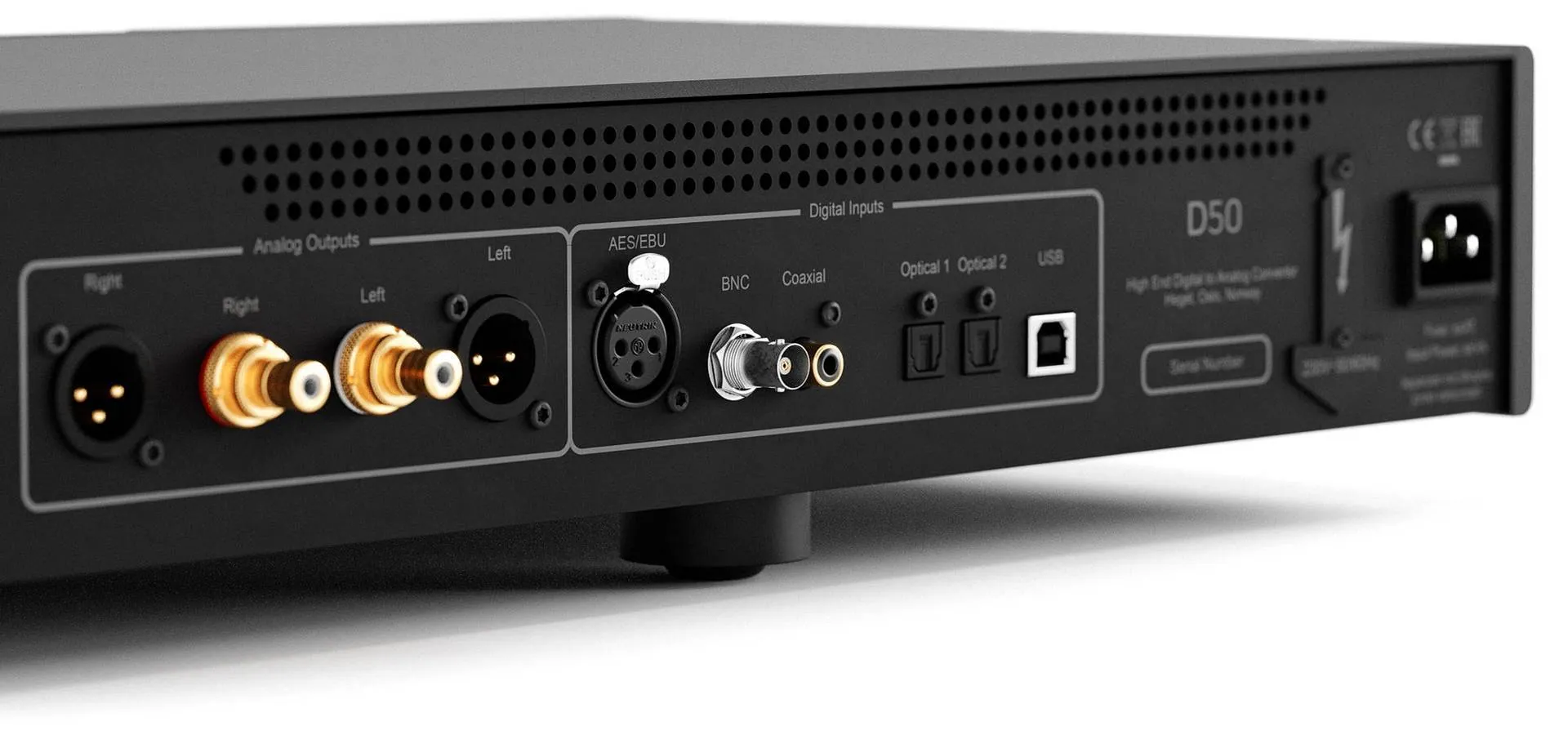

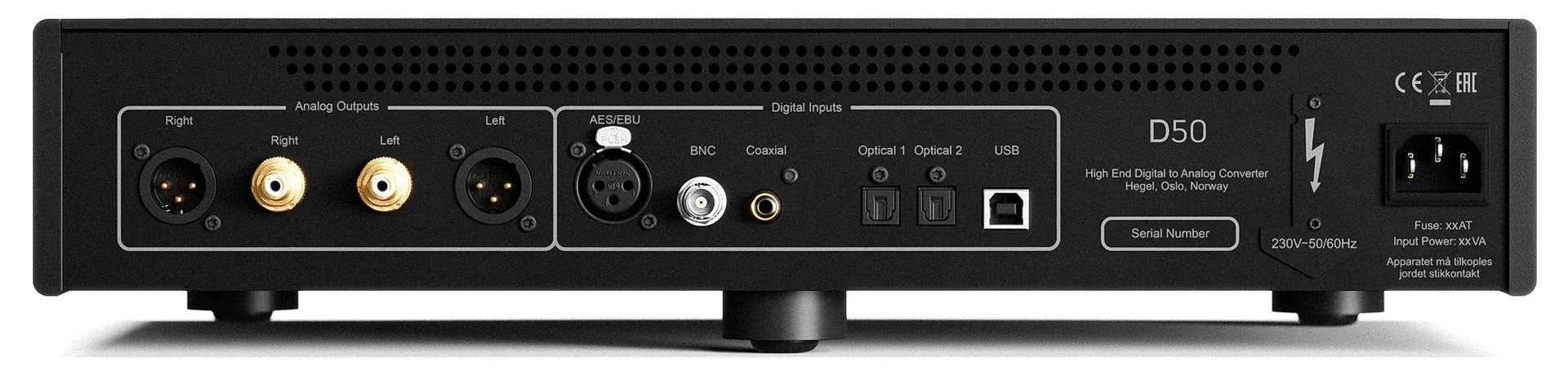

The D50 handles a wide range of digital sources. AES/EBU, BNC and RCA coaxial, optical, and USB inputs all support up to 24/192 and DSD64 via DoP. MQA decoding runs at 8x on every input.
A network input adds streaming: AirPlay, Spotify Connect, Roon Ready, and UPnP are built in. Analog outputs are balanced XLR and unbalanced RCA.
The D50 is Hegel's only standalone DAC, sitting between the streaming amplifiers above and the source components below.
Specifications
| Digital inputs | 1 x AES/EBU S/PDIF, 24/192, DSD64(DoP), MQA 8x, 1 x Coaxial (BNC) S/PDIF, 24/192, DSD64(DoP), MQA 8x, 1 x Coaxial (RCA) S/PDIF, 24/192, DSD64(DoP), MQA 8x, 2 x Optical S/PDIF, 24/96, MQA 8x, 1 x USB 32/384, DSD256(DoP), MQA 8x |
|---|---|
| Line level outputs | 1 x Unbalanced fixed (RCA), 2.5 V, 1 x Balanced fixed (XLR), 2.5 V |
| Analog bandwidth | More than 0 Hz - 100 kHz |
| Signal-to-noise ratio | More than 100 dB |
| Noise floor | Typically -150 dB |
| Distortion | Less than 0.0002 % |
| Power use in standby | Less than 0.5 W |
| Power use when on | Less than 20 W |
| Dimensions/weight | 43 x 30.5 x 9.9 cm (WxDxH), 6.6 kg |
| Dimensions/weight US | 17 x 12 x 3.9" (WxDxH), 14.55 lbs |
