Hegel · Integrated Amplifiers
H150
The H150 is Hegel's streaming stereo amplifier with 2x75W, a built-in phono stage, and network connectivity.
fig. 01 · integrated amplifiers
H150
From Hegel
The H150 packs a phono stage, DAC, and streamer into one box. It outputs 2x75W into 8 ohms with a 2-ohm minimum load rating.

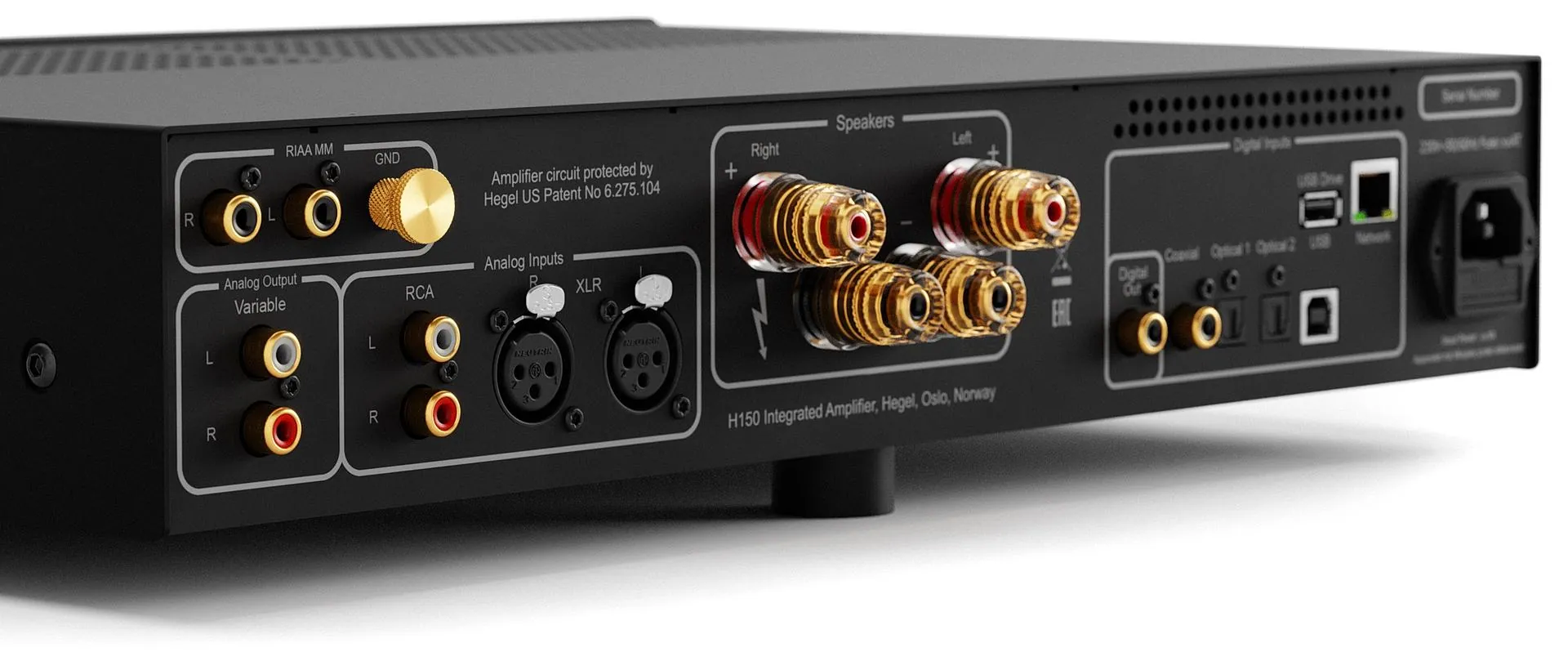

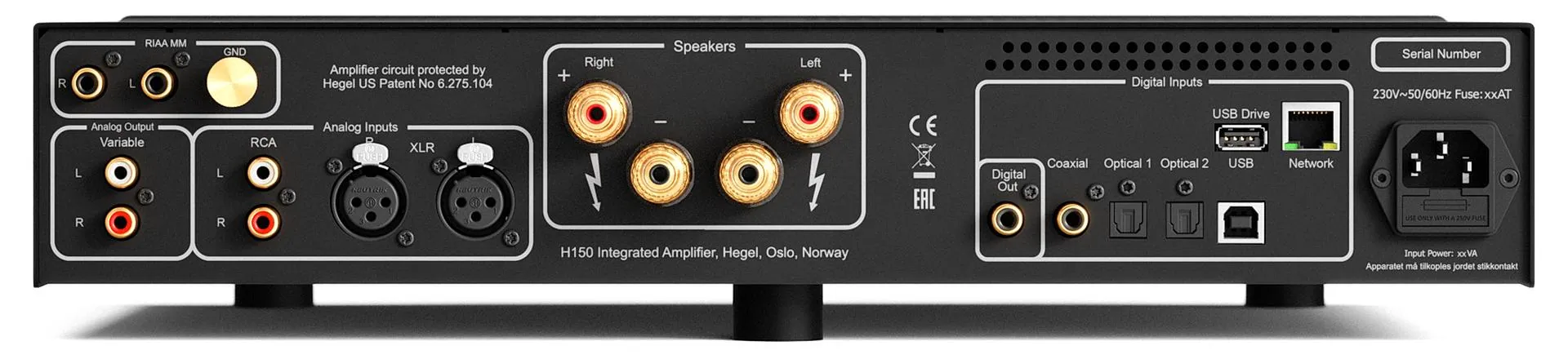

Inputs include balanced XLR, unbalanced RCA, a moving-magnet phono input, and a full suite of digital connections: coaxial, optical, USB, and network. AirPlay, Spotify Connect, Roon Ready, and UPnP are all on board.
Hegel calls it the Prodigy. The feature set backs that up.
Specifications
| Power output | 2x75W into 8 Ohms @ 1kHz 1% THD , 100/120/230V AC |
|---|---|
| Minimum load | 2 ohms |
| Analog inputs | 1x Balanced (XLR), 1x Unbalanced (RCA) |
| Phono input | 1 x Unbalanced (RCA) for Moving Magnet (MM) |
| Digital outputs | 1x Coaxial S/PDIF - 24/192 |
| Digital inputs | 1x Coaxial (RCA) S/PDIF - 24/192, 2x Optical S/PDIF - 24/96, 1x USB B- 24/192, 1x USB A 2.0 - USB Drives (10,000 songs), 1x Network - 24/192 |
| Line level outputs | 1x Unbalanced variable (RCA) |
| Streaming | Spotify Connect (Lossless), Tidal Connect, Qobuz Connect, Apple AirPlay, Google Cast, airable Internet Radio and Podcast, UPnP, Roon Ready |
| Streaming formats | MP3, WAV, FLAC, ALAC, AIFF, AAC, PCM, Ogg |
| Frequency response | 5Hz-100kHz |
| Signal-to-noise ratio | More than 100dB |
| Crosstalk | Less than -100dB |
| Distortion | Less than 0.01% @ 50W 8 Ohms 1kHz |
| Intermodulation | Less than 0.01% (19kHz + 20kHz) |
| Damping factor | More than 2000 (main power output stage) |
| Dimensions/weight | 43 x 35 x 10 cm (WxDxH), 9.7 kg |
| Dimensions/weight US | 17 x 13.8 x 3.93" (WxDxH), 21.4 lbs |
