Hegel · Integrated Amplifiers
H190v

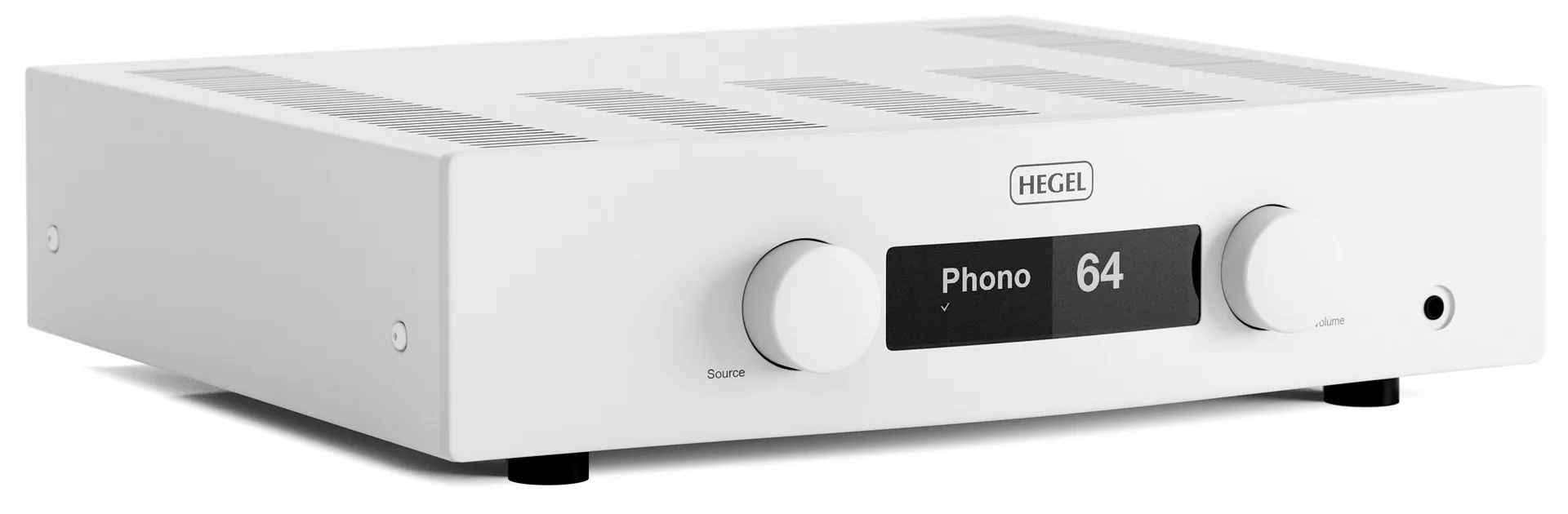

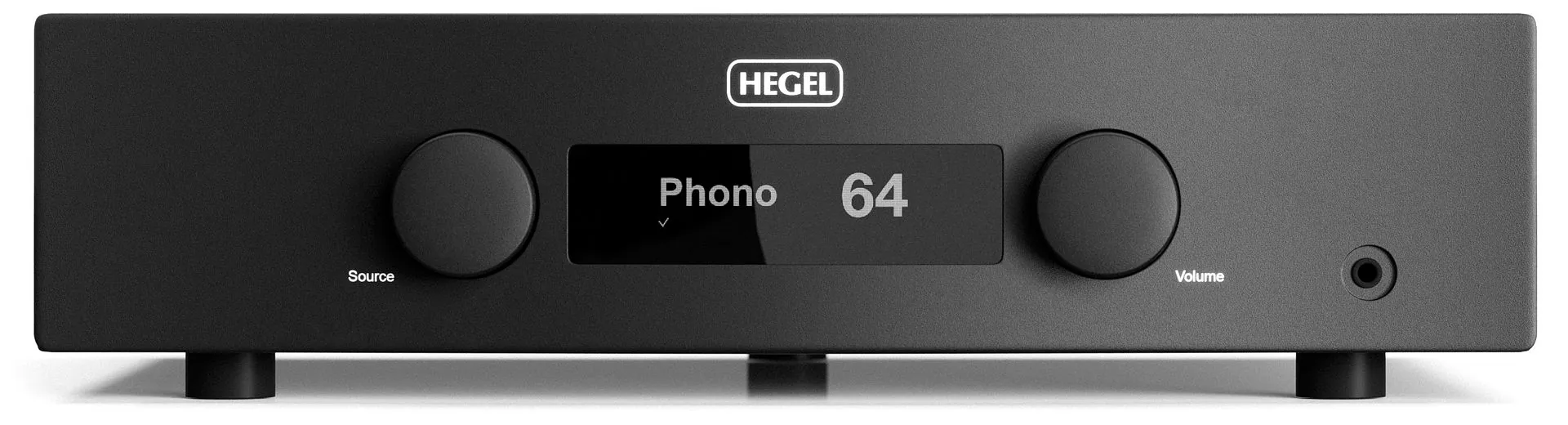

The H190v is an evolution of Hegel's best-selling stereo amplifier, delivering 2x150W with streaming, phono, and Roon Ready.
fig. 01 · integrated amplifiers
H190v
From Hegel
The H190v picks up where the original H190 left off. It pushes 2x150W into 8 ohms, handles loads down to 2 ohms, and carries a dual-mono power supply.

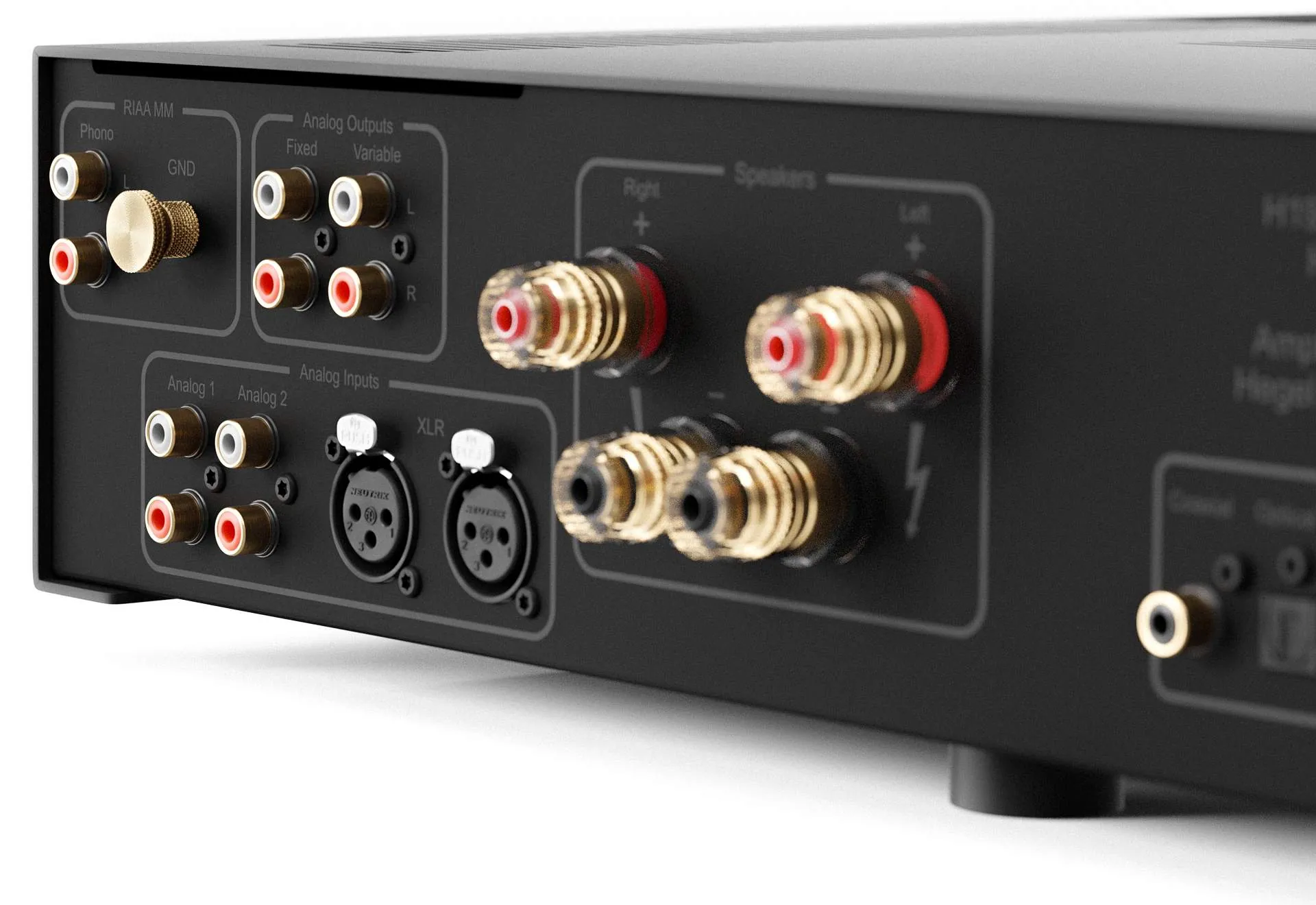

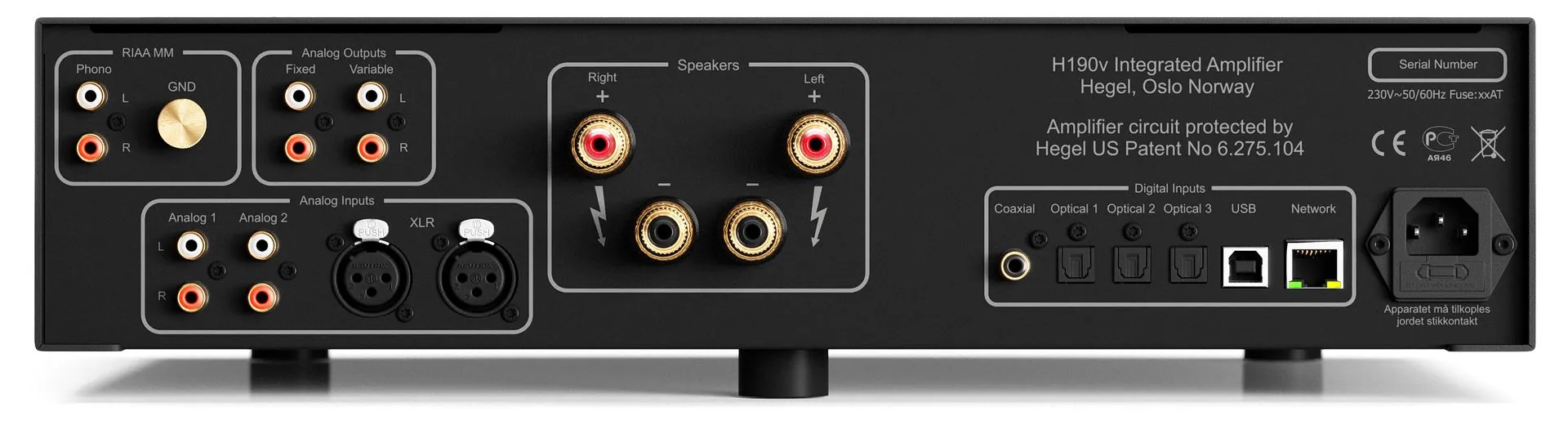

A built-in moving-magnet phono stage, balanced and unbalanced analog inputs, and a full digital section (coaxial, optical, USB, network) cover most source needs. Streaming runs through AirPlay, Spotify Connect, Roon Ready, and UPnP.
Hegel built the H190v around the idea that a single box should play everything well.
Specifications
| Power output | 2*150W in 8 ohms @ 1kHz 1% THD, 100/120/230V AC |
|---|---|
| Minimum load | 2 ohms |
| Analog inputs | 1*Balanced (XLR), 2*Unbalanced (RCA) |
| Phono input | 1*Unbalanced (RCA) for Moving Magnet (MM) |
| Digital inputs | 1*Coaxial S/PDIF, 24/192, 3*Optical S/PDIF, 24/96, 1*USB, 24/96, 1*Network, 24/192 |
| Line level outputs | 1*Unbalanced fixed (RCA), 1*Unbalanced variable (RCA) |
| Streaming | AirPlay, Roon Ready, Spotify Connect (Not Lossless), UPnP, JPLAY Certified |
| Streaming formats | MP3, WAV, FLAC, ALAC, AAC, PCM, Ogg |
| Frequency response | 5Hz-100kHz |
| Signal-to-noise ratio | More than 100dB |
| Crosstalk | Less than -100dB |
| Distortion | Less than 0.01% @ 50W 8 Ohms 1kHz |
| Intermodulation | Less than 0.01% (19kHz + 20kHz) |
| Damping factor | More than 4000 (main output stage) |
| Power use in standby | <0,5W |
| Dimensions/weight | 12 x 43 x 41cm (HxWxD), 14.2kg |
| Dimensions/weight US | 4.72 x 17 x 16.15" (HxWxD), 31.3 lbs |
