H20

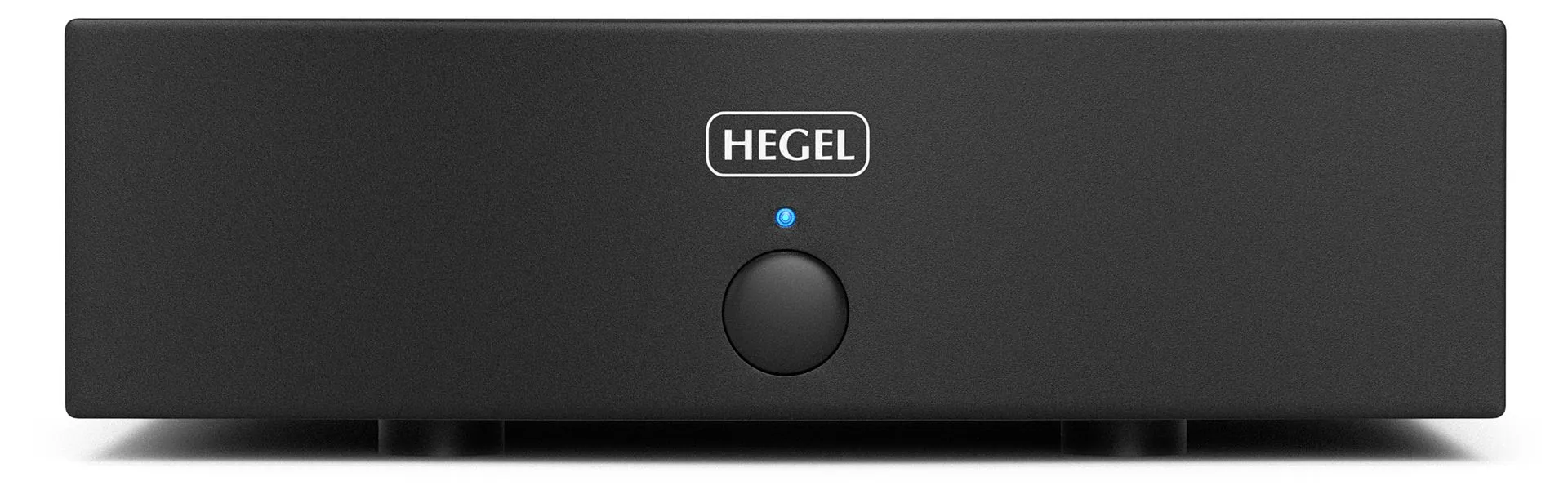

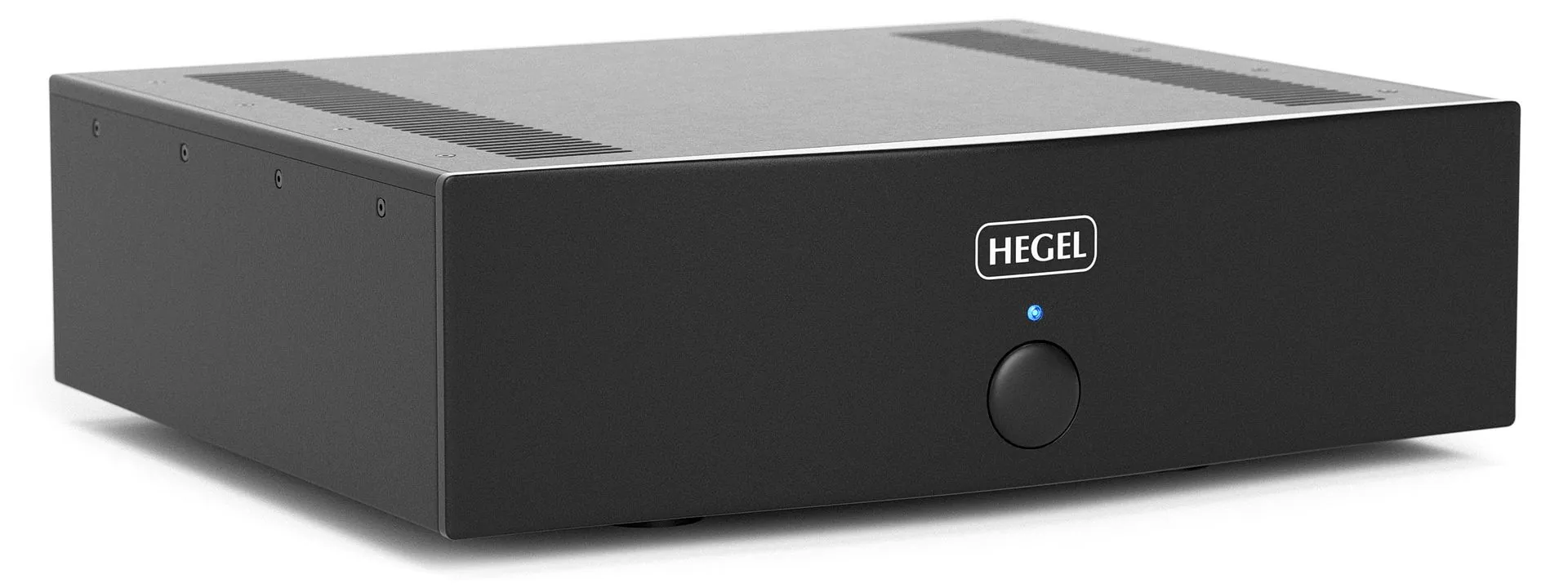

The H20 is Hegel's dual-mono stereo power amplifier, delivering over 200W per channel into 8 ohms.
fig. 01 · power amplifiers
H20
From Hegel
The H20 uses Hegel's latest FET amplifier topology in a dual-mono layout. It outputs more than 200W per channel into 8 ohms and accepts both balanced XLR and unbalanced RCA inputs.

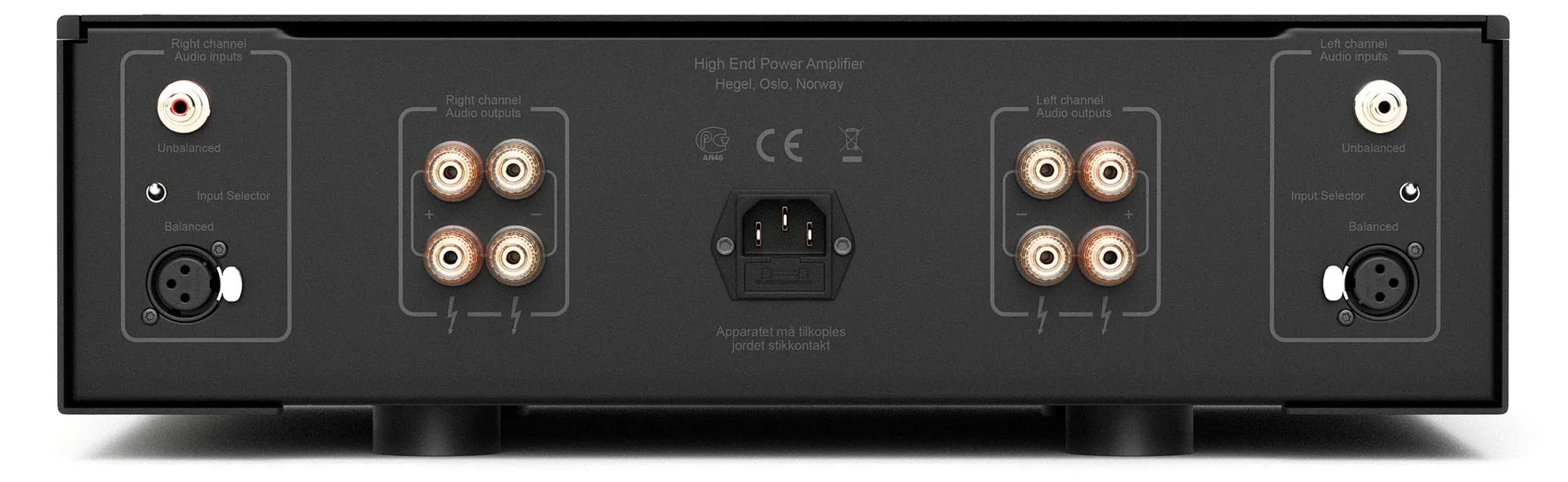

Two pairs of speaker terminals allow bi-wiring. The FET circuit is designed around rhythmic accuracy and the suppression of harmonic echoes in the upper frequencies.
It pairs with the P20 or P30A in Hegel's separates lineup.
Specifications
| Output power | > 200 W + 200 W in 8 ohms @ 1kHz 1% THD, 100/120/230V AC, Dual mono |
|---|---|
| Inputs | RCA unbalanced and XLR balanced |
| Speaker outputs | Two pairs of heavy-duty gold plated terminals |
| Input Impedance | Balanced 10 kohm, unbalanced 50 kohm |
| Frequency response | Less than +/- 0.2 dB deviation 20 Hz - 20 kHz |
| Phase response | Less than 2 degrees deviation 20 Hz - 20 kHz |
| Signal to noise ratio | More than 100 dB |
| Crosstalk | Less than -100 dB |
| Distortion | Less than 0.006% at 100 W8 ohm |
| Intermodulation | Less than 0.01% (19 kHz + 20 kHz) |
| Damping factor | More than 1000 |
| Power supply | 1000 VA dual mono, 90,000 μF capacitors |
| Output stage | 20 pcs 15 A 200 W high speed, ultra-low distortion bipolar transistors |
| Power consumption | 60 W in standby switched on |
| Finish | Black |
| Dimensions/weight | 14,5 cm x 43 cm x 37 cm (HxWxD), weight 18 kg |
| Dimensions/weight US | 5.7" x 17" x 15" (HxBxD), weight 39,7 lbs |
