Hegel · Integrated Amplifiers
H200
The H200 is Hegel's connected stereo amplifier with 2x150W, streaming, and a built-in DAC and phono stage.
fig. 01 · integrated amplifiers
H200
From Hegel
The H200 pairs 2x150W of power with a full streaming platform. AirPlay, Spotify Connect, Roon Ready, and UPnP are built in alongside a DAC that handles USB, coaxial, and optical sources.
Analog inputs include balanced XLR, unbalanced RCA, and a moving-magnet phono stage. The dual-mono power supply drives loads down to 2 ohms.
Hegel designed the H200 as the connected half of a pair (the A200 is its analog twin), built for listeners who want everything routed through one chassis.
Specifications
| Power output | 2x150W into 8 Ohms @ 1kHz 1% THD , 100/120/230V AC |
|---|---|
| Minimum load | 2 ohms |

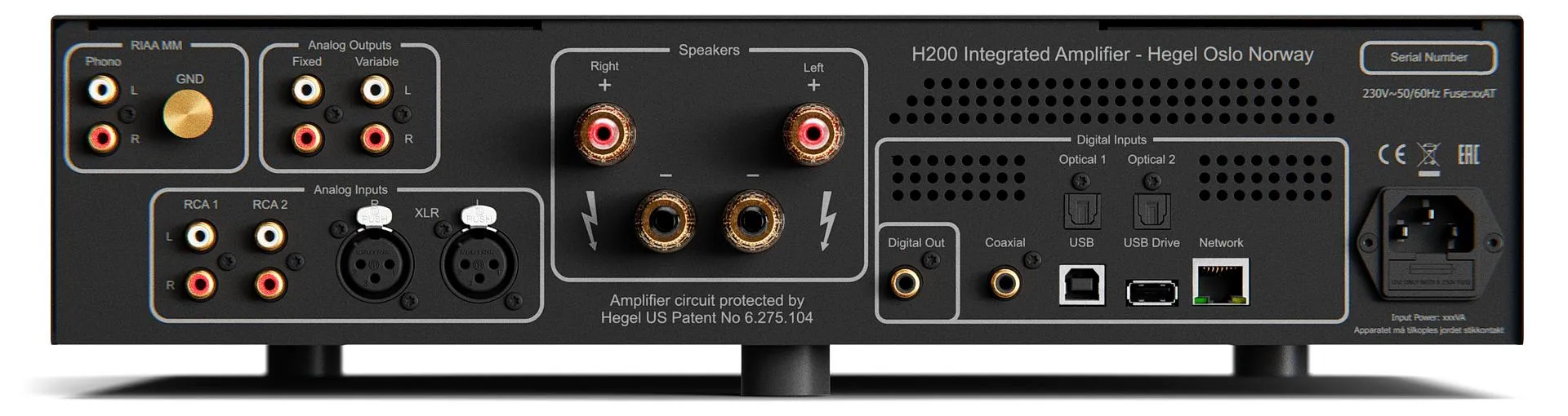

| Analog inputs | 1x Balanced (XLR), 2x Unbalanced (RCA) |
| Phono input | 1 x Unbalanced (RCA) for Moving Magnet (MM) |
| Digital outputs | 1x Coaxial S/PDIF - 24/192 |
| Digital inputs | 1x Coaxial (RCA) S/PDIF - 24/192, 2x Optical S/PDIF - 24/96, 1x USB B- 24/192, 1x USB A 2.0 - USB Drives (10,000 songs), 1x Network - 24/192 |
| Line level outputs | 1x Unbalanced variable (RCA), 1x Unbalanced fixed (RCA) |
| Streaming | Spotify Connect (Lossless), Tidal Connect, Qobuz Connect, Apple AirPlay, Google Cast, airable Internet Radio and Podcast, UPnP |
| Streaming formats | MP3, WAV, FLAC, ALAC, AIFF, AAC, PCM, Ogg |
| Smart Home | Control4, Crestron Home, Crestron SIMPL |
| Frequency response | 5Hz-100kHz |
| Signal-to-noise ratio | More than 100dB |
| Crosstalk | Less than -100dB |
| Distortion | Less than 0.01% @ 50W 8 Ohms 1kHz |
| Intermodulation | Less than 0.01% (19kHz + 20kHz) |
| Damping factor | More than 4000 (main power output stage) |
| Dimensions/weight | 43 x 41 x 12 cm (WxDxH), 13.6 kg |
| Dimensions/weight US | 17 x 16.2 x 4.7" (WxDxH), 30 lbs |
