Hegel · Power Amplifiers
H30A
The H30A is Hegel's flagship power amplifier, delivering over 1,100W in mono mode with a 1-ohm load capability.
fig. 01 · power amplifiers
H30A
From Hegel
The H30A is a stereo/mono power amplifier with serious output. In mono mode, it delivers more than 1,100W into 8 ohms. In stereo, it drives two channels from a shared power supply. The minimum load is 1 ohm.

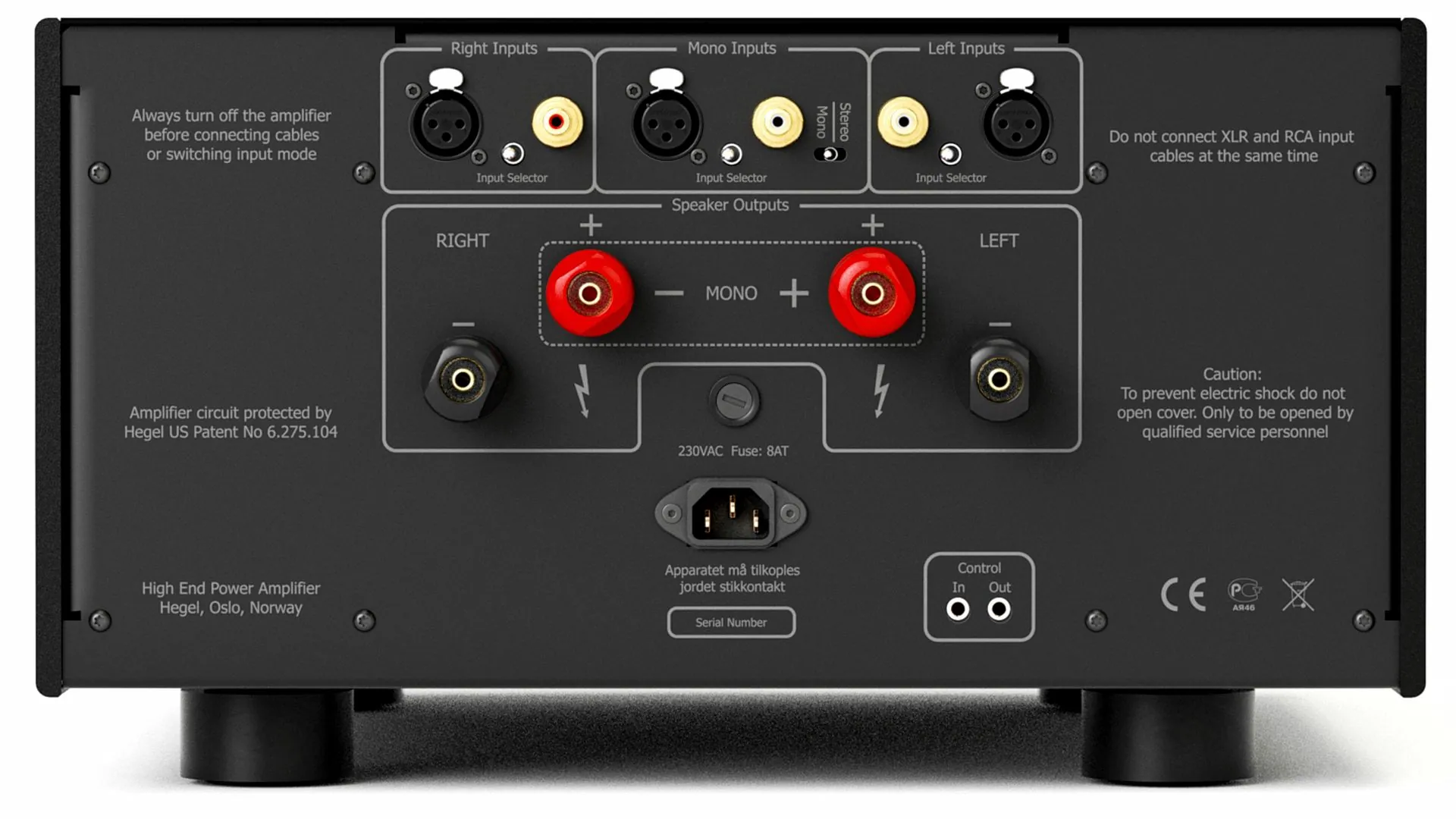

Inputs are balanced XLR and unbalanced RCA. A single pair of heavy-duty speaker terminals handles the output.
Hegel calls this one The Orchestra. With over a kilowatt available in mono, speaker matching stops being a concern.
Specifications
| Output power | More than 1100 W in 8 ohms @ 1kHz 1% THD, 100/120/230V AC (mono) |
|---|---|
| Min. load impedance | 1 ohm load |
| Inputs | RCA unbalanced and XLR balanced |
| Speaker outputs | One pair of heavy duty gold plated terminals |
| Input impedance | Balanced 20 kohm, unbalanced 10 kohm |
| Signal to noise ratio | More than 100 dB |
| Crosstalk | Less than -100 dB |
| Distortion | Less than 0.003% at 100 W in 8 ohm |
| Intermodulation | Less than 0.01% (19 kHz + 20 kHz) |
| Damping factor | More than 500 (mono) |
| Power supply | 2000 VA dual mono, 270,000 μF capacitors |
| Output stage | 56 pcs 15 A 200 W high speed, ultra-low distortion bipolar transistors |
| Power consumption | 120 W in idle mode |
| Finish | Black |
| Dimensions/weight | 24 cm x 43 cm x 57,5 cm (HxWxD), weight 47,4 kg |
| Dimensions/weight US | 9.4" x 17" x 22.6" (HxWxD), 104.5 lbs |
