H400
The H400 is Hegel's dual-mono stereo amplifier with 2x250W, streaming, and a full DAC section.
fig. 01 · integrated amplifiers
H400
6 photographs · 5 shown
From Hegel
The H400 runs a dual-mono power supply rated at 2x250W into 8 ohms. It drives loads down to 2 ohms.

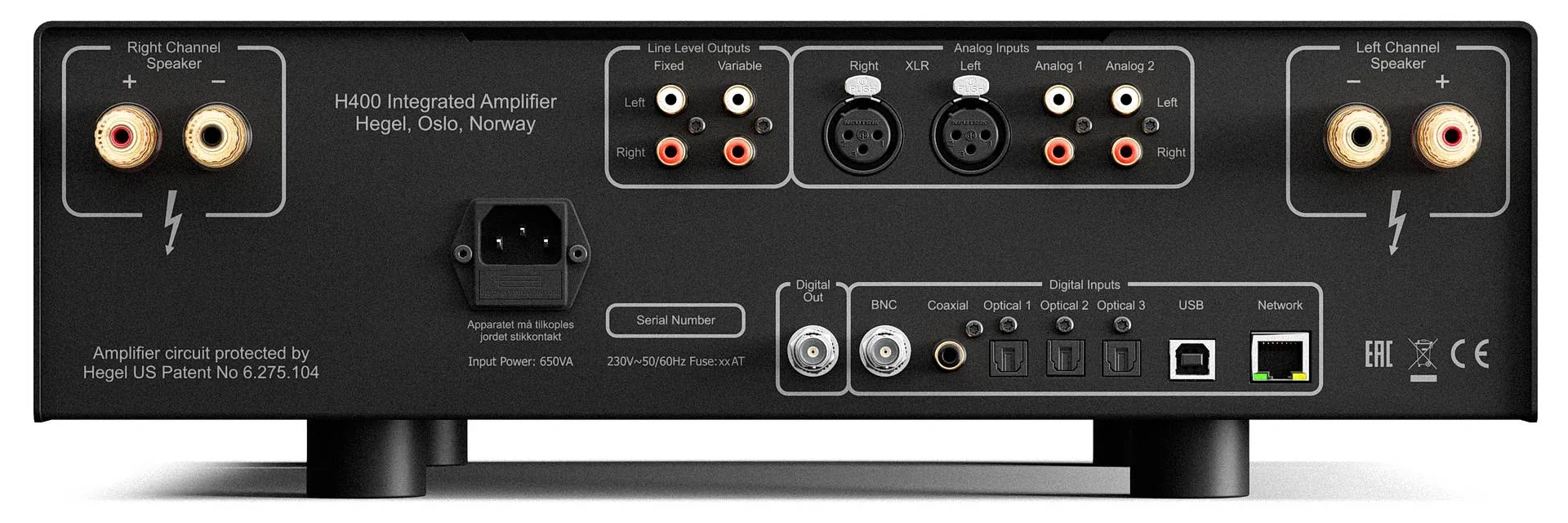

The DAC section handles AES/EBU, coaxial, optical, USB, and network inputs. AirPlay, Spotify Connect, Roon Ready, and UPnP streaming are built in. Analog inputs cover balanced XLR and unbalanced RCA, plus a BNC coaxial digital output.
Hegel calls this one the Streamliner. At 250W per channel in a single chassis, it sits just below the flagship H600.
Specifications
| Power output | 2 x 250 W into 8 Ω @ 1kHz 1% THD, 100/120/230V AC, Dual Mono |
|---|---|
| Minimum load | 2 Ω |
| Analog Inputs | 1 x balanced (XLR), 2 x unbalanced (RCA) |
| Digital Outputs | 1 x coaxial (BNC) S/PDIF 24/192 |
| Digital Inputs | 1 x coaxial (BNC, S/PDIF 24/192, DSD64 (DoP), MQA 8x), 1 x coaxial (RCA, S/PDIF 24/192, DSD64 (DoP), MQA 8x), 3 x optical (S/PDIF 24/96, MQA 8x), 1 x USB (32/384, DSD256 (DoP), MQA 8x, 1 x Network (24/192, DSD64 (DoP), MQA 8x) |
| Line level Output | 1 x unbalanced fixed (RCA), 1 x unbalanced variable (RCA) |
| Streaming | Spotify Connect (Lossless), Qobuz Connect, Roon Ready, Tidal Connect, Google Cast, AirPlay, airable Internet Radio and Podcast, UPnP, JPLAY Certified |
| Streaming formats | MP3, WAV, FLAC, ALAC, AIFF, DSF, DFF, AAC, PCM, MQA, Ogg |
| Frequency response | 5 Hz - 180 kHz |
| Signal-to-noise ratio | More than 100 dB |
| Crosstalk | Less than -100 dB |
| Distortion | Less than 0.005% @ 50 W/8 Ω/1 kHz |
| Intermodulation | Less than 0.01% (19 kHz + 20 kHz) |
| Damping factor | More than 4000 (main power output stage) |
| Dimensions incl feet | 15 cm x 43 cm x 44 cm (HxWxD), 20 kg unit weight |
| Dimensions (US) | 5.9" x 16.93" x 17.32" (HxWxD), 44,1 lbs unit weight |
