Hegel · Preamplifiers
P20
The P20 is Hegel's entry-level preamplifier with balanced and unbalanced inputs, a home theater bypass, and RC8 remote control.
fig. 01 · preamplifiers

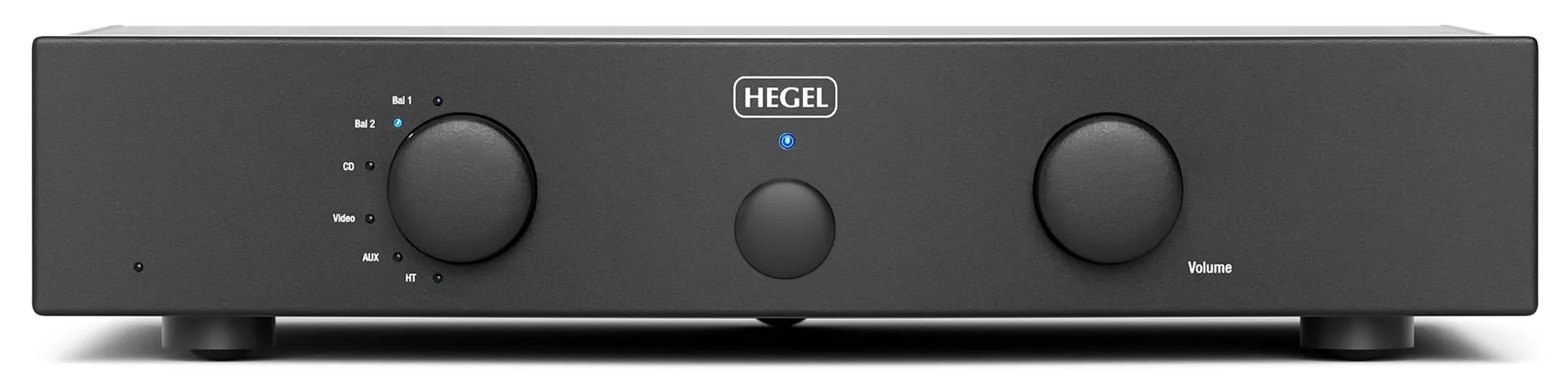

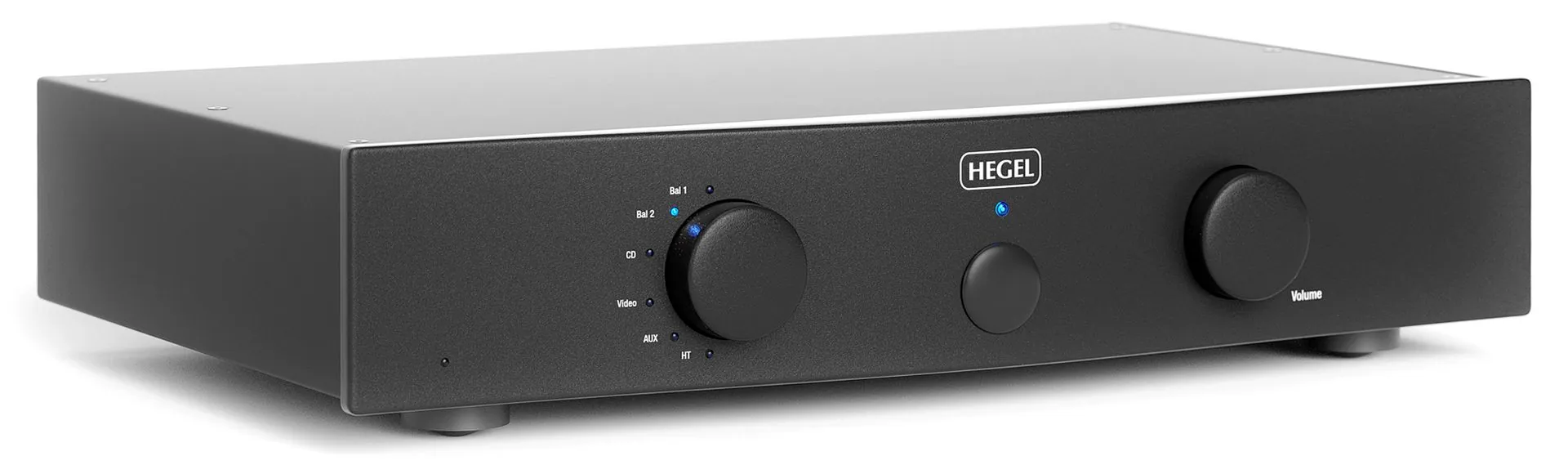

P20
From Hegel
The P20 is the smaller of Hegel's two preamplifiers. It carries one balanced XLR input, four unbalanced RCA inputs, and a home theater bypass.

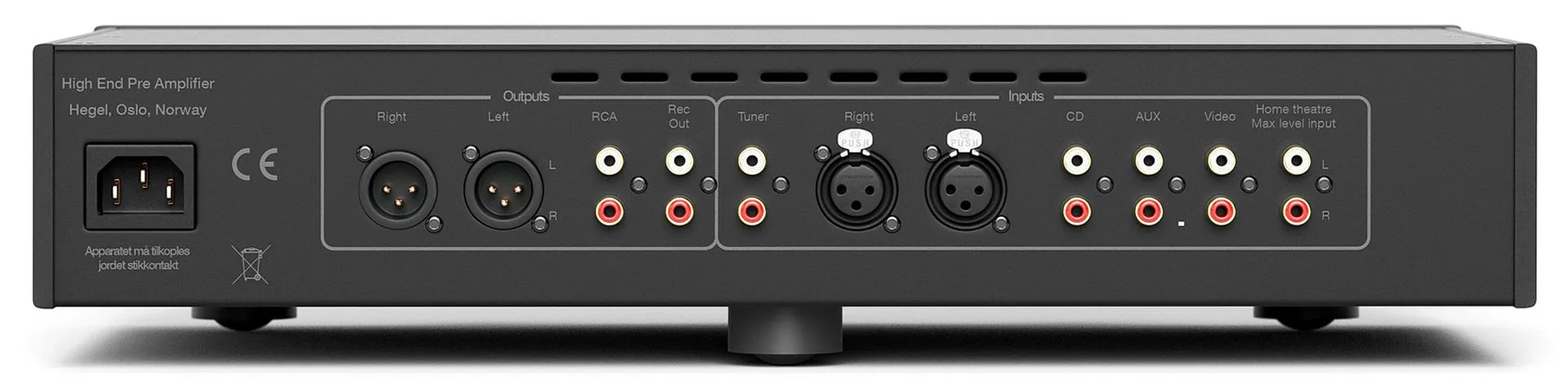

Outputs include balanced XLR, unbalanced RCA, and a fixed-level RCA for recording. Volume, source, and mute are controlled by the included RC8 remote.

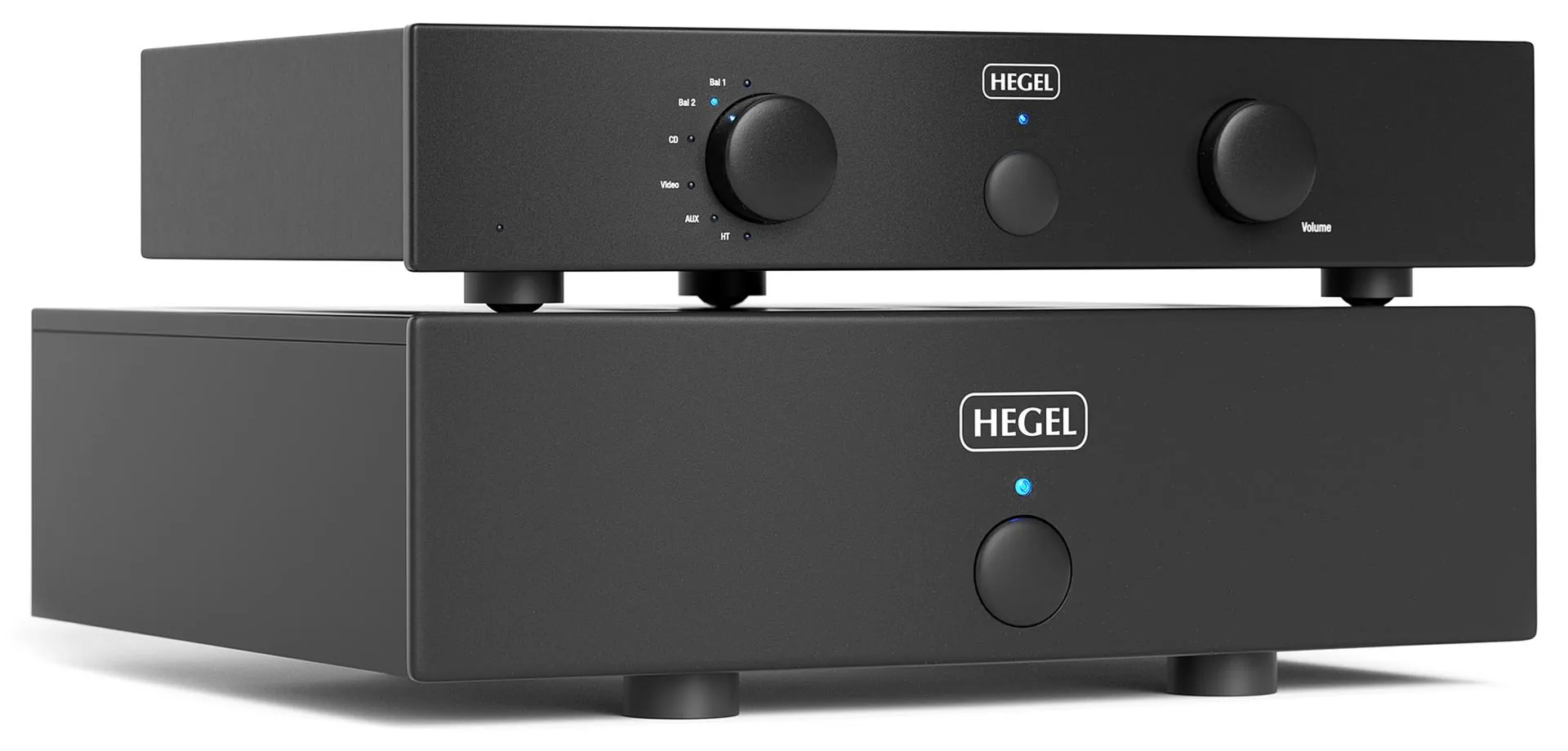

Hegel designed the P20 as an entry point to the separates line, borrowing circuit topology from the larger P30A.
Specifications
| Remote control | Volume, source and mute controlled by the Hegel RC8 |
|---|---|
| Inputs | 1 x XLR balanced, 4 x RCA unbalanced and Home Theatre inputs |
| Outputs | 1 x XLR balanced, 1 x RCA unblanced and 1 x RCA recording outputs |
| Signal to noise ratio | More than 130 dB balanced mode |
| Distortion | Less than 0.005% |
| Intermodulation | Less than 0.01% (19 kHz + 20 kHz) |
| Finish | Black |
| Dimensions/weight | 8 cm x 43 cm x 30 cm (HxWxD), weight 10 kg |
| Dimensions/weight US | 3,2" x 17" x 12" (HxBxD), weight 22 lbs |
