V10

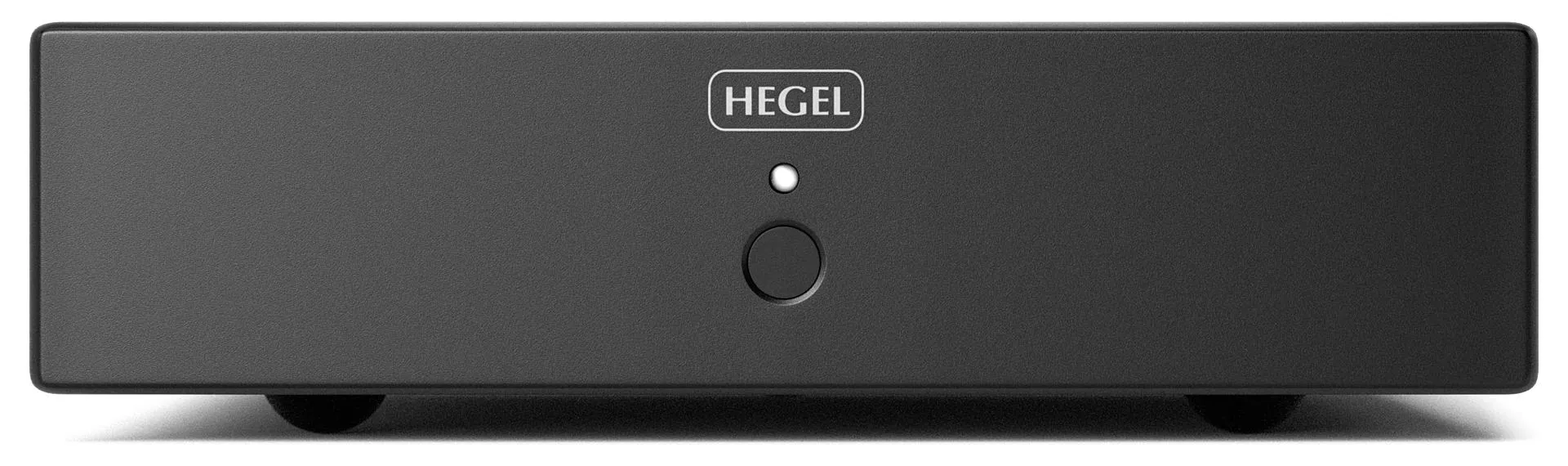

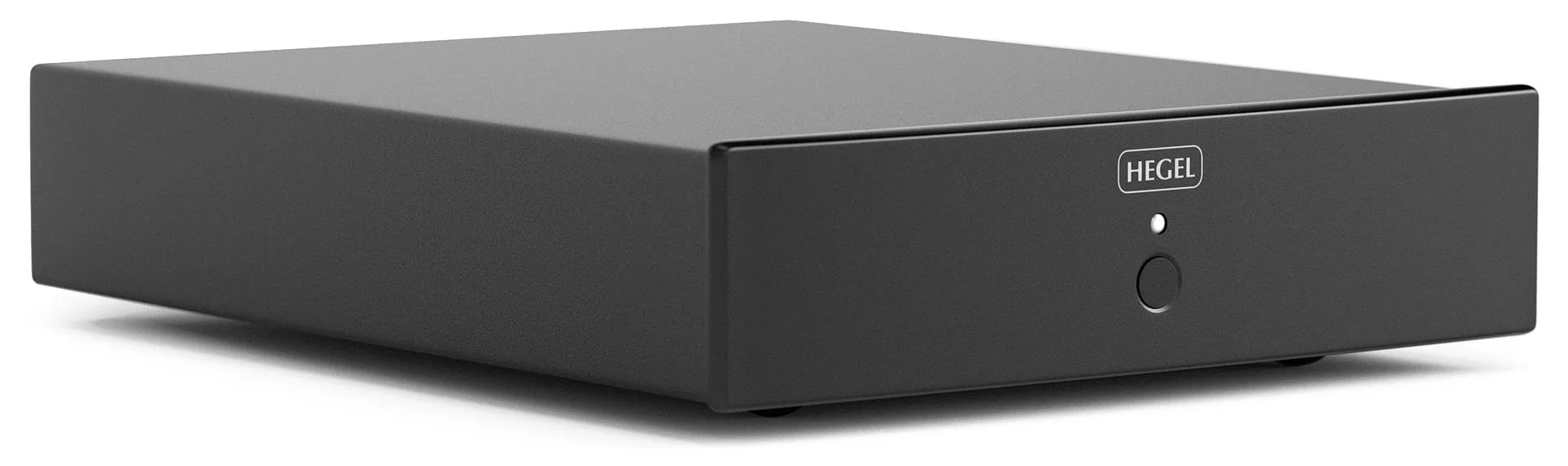

The V10 is Hegel's phono preamplifier with discrete JFET input stages for both MM and MC cartridges.
fig. 01 · phono stages
V10
From Hegel
The V10 uses a discrete JFET transistor input stage designed for ultra-low noise. It handles both moving-magnet and moving-coil cartridges with adjustable gain settings.
MM gain runs from 40dB to 52dB on XLR output. MC gain covers 60dB to 72dB. Both balanced XLR and unbalanced RCA outputs are available.
Hegel built the V10 with the same discrete transistor approach used in its amplifier line, applied to the specific demands of phono signal amplification.
Specifications
| Amplifier Typology | Ultra low noise discrete JFET transistor input stage for both MC and MM |
|---|---|
| Gain XLR Out MM | 40dB / 45dB / 50dB / 52dB |
| Gain XLR Out MC | 60dB / 65dB / 70dB / 72dB |
| Gain RCA Out MM | 34dB / 39dB / 44dB / 46dB |
| Gain RCA Out MC | 54dB / 59dB / 64dB / 66dB |

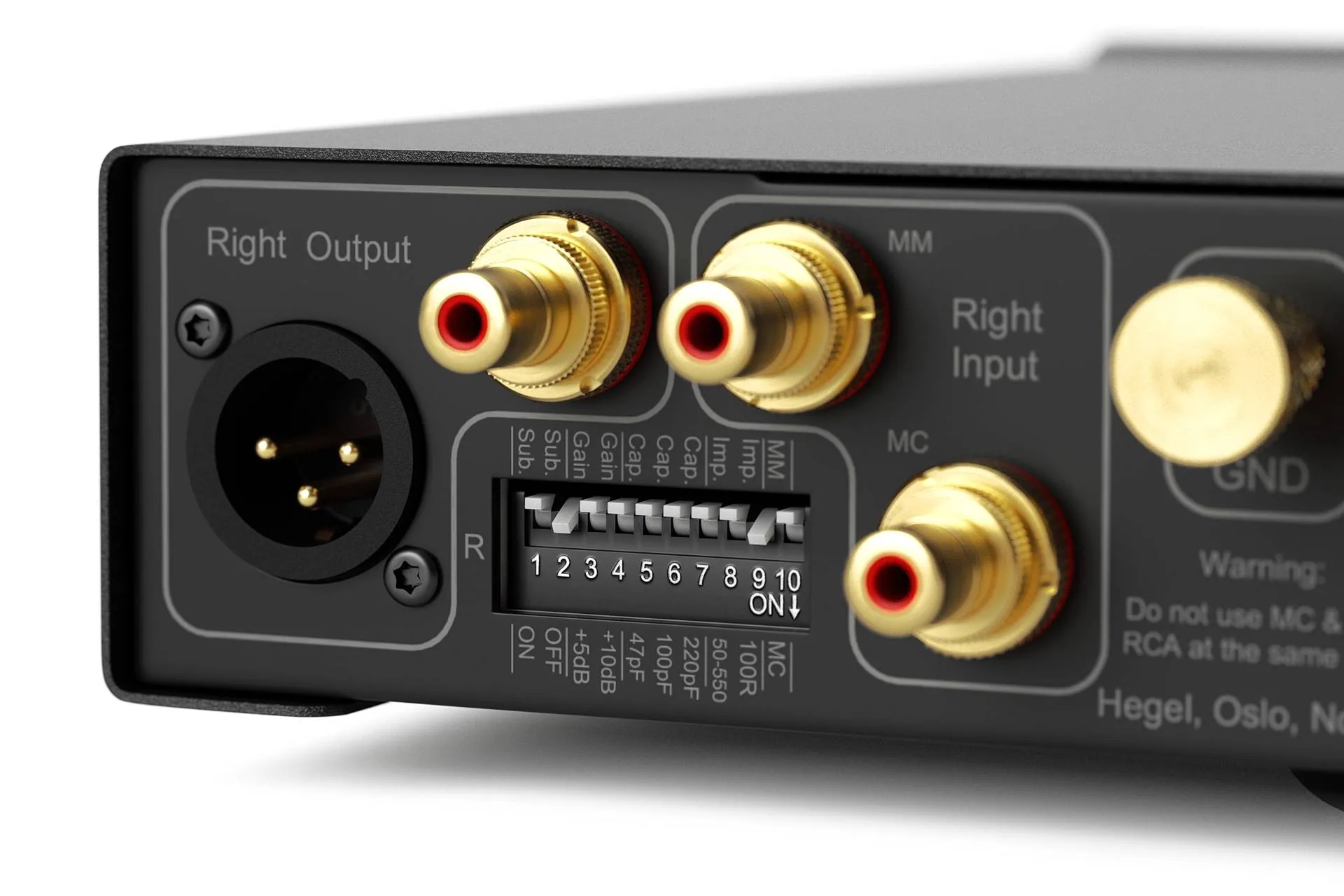

| MC Load Impedance | Freely adjustable between 33 and 550 ohm / 47 kohm |
| MM Load Capacitance | 47pF / 100pF / 147pF / 220pF / 267pF / 320pF / 367pF @ 47 kohm |
| Subsonic Filter | Switchable on / off, -3dB at 20Hz, -18dB octave |
| RIAA Accuracy | +/- 0,2dB / 20Hz - 20kHz |
| Output Noise* | -84dB/MM ("A" weighted ref: 0dBV), -81dB/MC ("A" weighted ref: 0dBV) |
| Output Impedance XLR / RCA | 200 ohm |
| Channel Crosstalk | -84dB @1kHz 0dBV |
| Frequency Response | 2Hz - 20kHz |
| Distortion (THD) MM | < 0.005% @1kHz 0dBV |
| Distortion (THD) MC | < 0.009% @1kHz 0dBV |

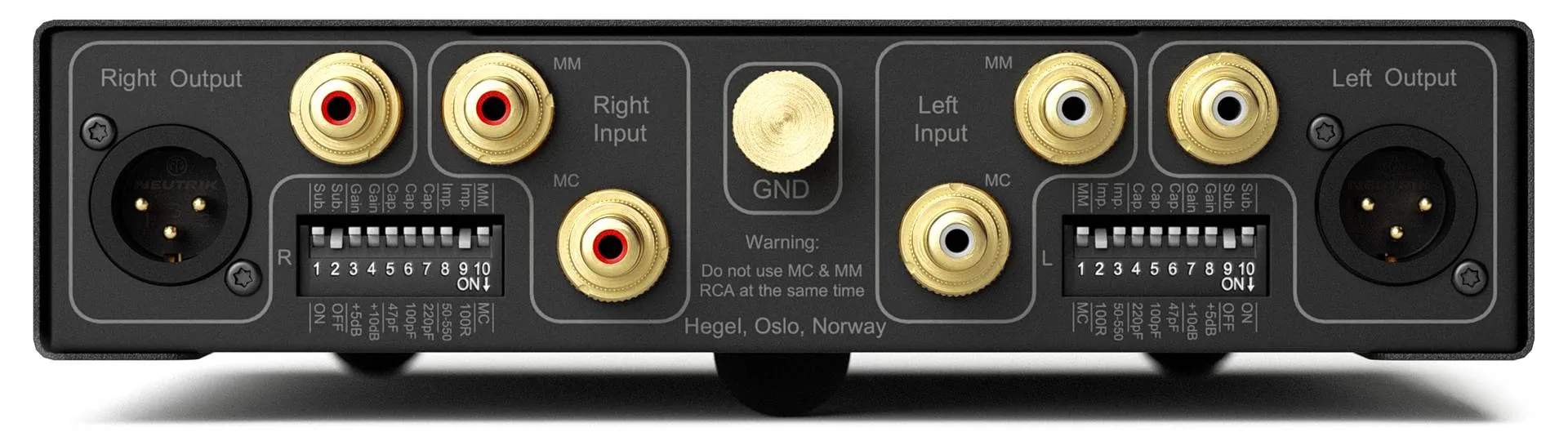

| Inputs | 1 x unbalanced (RCA) MM, 1 x unbalanced (RCA) MC |
| Outputs | 1 x unbalanced fixed (RCA), 1 x balanced fixed (XLR) |
| Power Adapter | Hegel Power Adapter M30103 |
| Dimensions with Feet | 6cm x 21cm x 28cm, 2.4" x 8,3" x 11" (H x W x D) |
| Weight | 2,2kg / 4,9lbs unit weight |
