Isotek · Power Conditioning

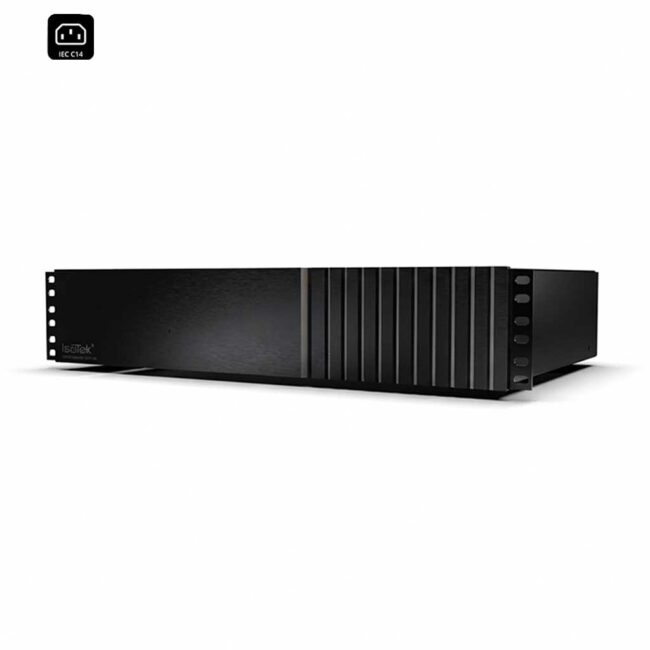

Delta Lite PDU
2U custom-install power distribution unit with 16 C14 IEC outlets, System Link, and 54,000A surge protection.
fig. 01 · power conditioning
Delta Lite PDU
From Isotek
Delta Lite PDU expands the rack-width PDU format to 16 C14 IEC output sockets. It has a 16A IEC C20 mains inlet, System Link, 3,680W total wattage at 230V, and a 448 x 305 x 89mm chassis.
Specifications
| Output sockets | 16 |
|---|---|
| Output socket types | C14 IEC |
| System Link | 1 |
| Mains inlet | 16A IEC 20 (20A North America) |
| Mains voltage | 100-240V / 50-60Hz |
| Maximum current | 16A (20A North America) |
| Total wattage | 3'680W (@230V) / 2'300W (@115V, North America) |
| Surge protection | 54'000A |
| Weight | 7.9kg |
| Product type | custom-install power distribution unit |
| Dimensions | 448 x 305 x 89mm |
