Isotek · Power Cables · Cables
EVO3 Ascension
EVO3 mains power cable with cryogenically treated silver-plated OCC conductors and air/FEP dielectric.
fig. 01 · power cables

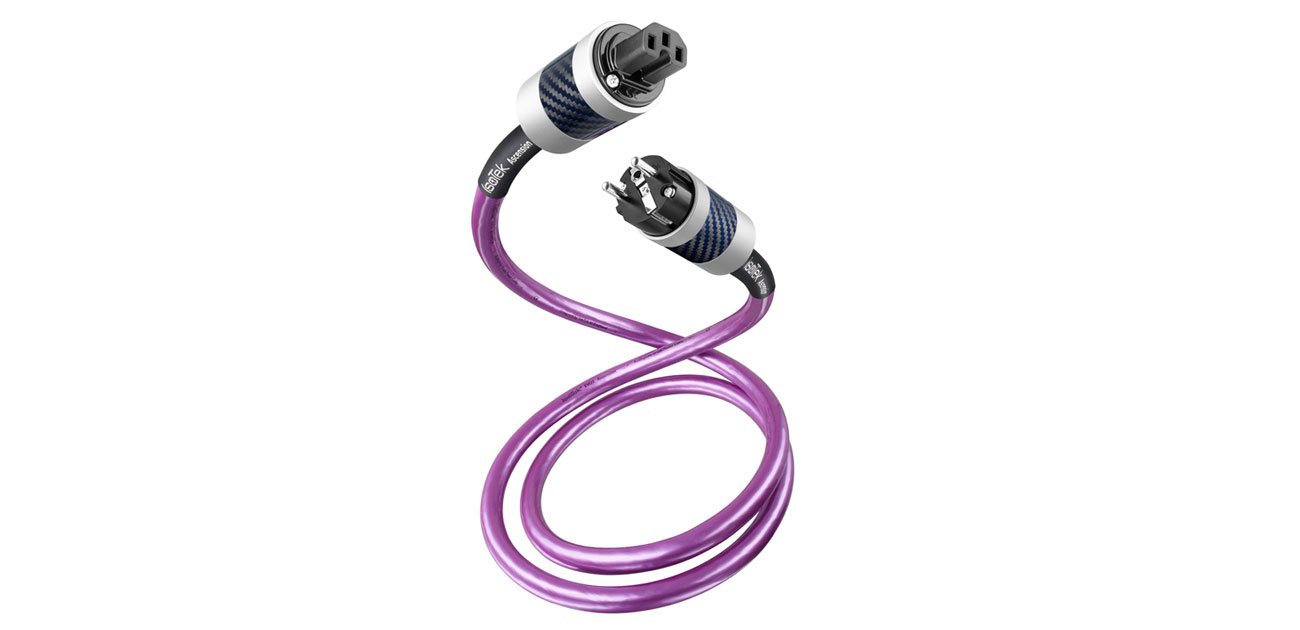

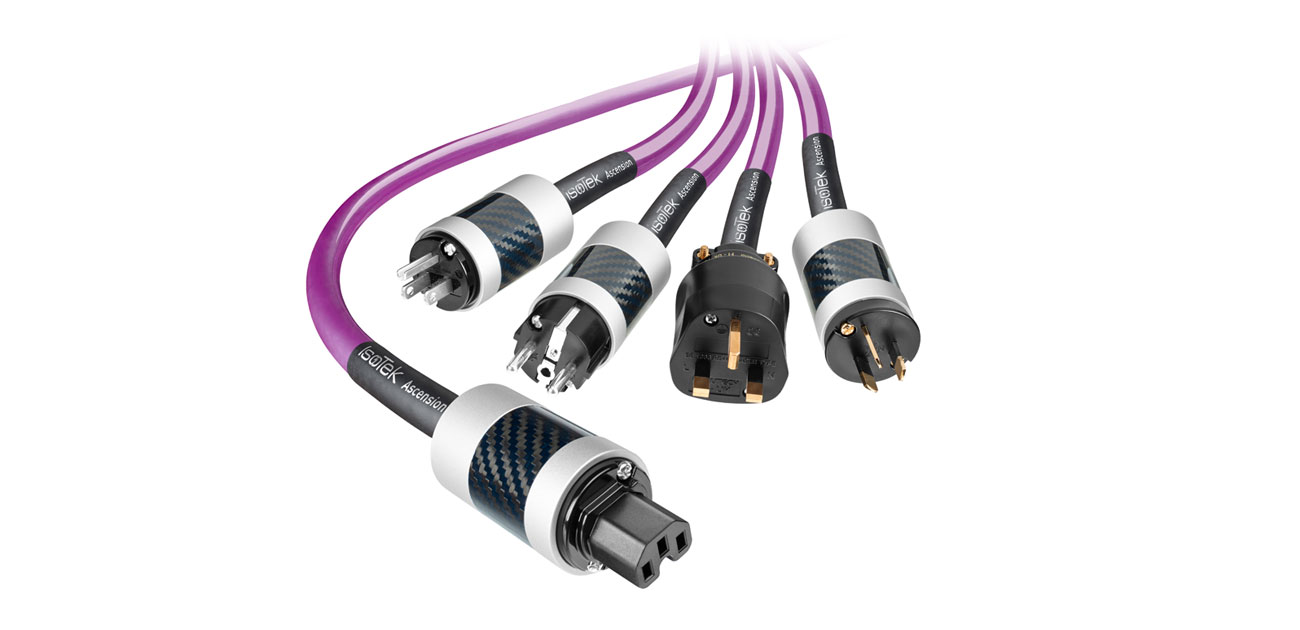

EVO3 Ascension
From Isotek

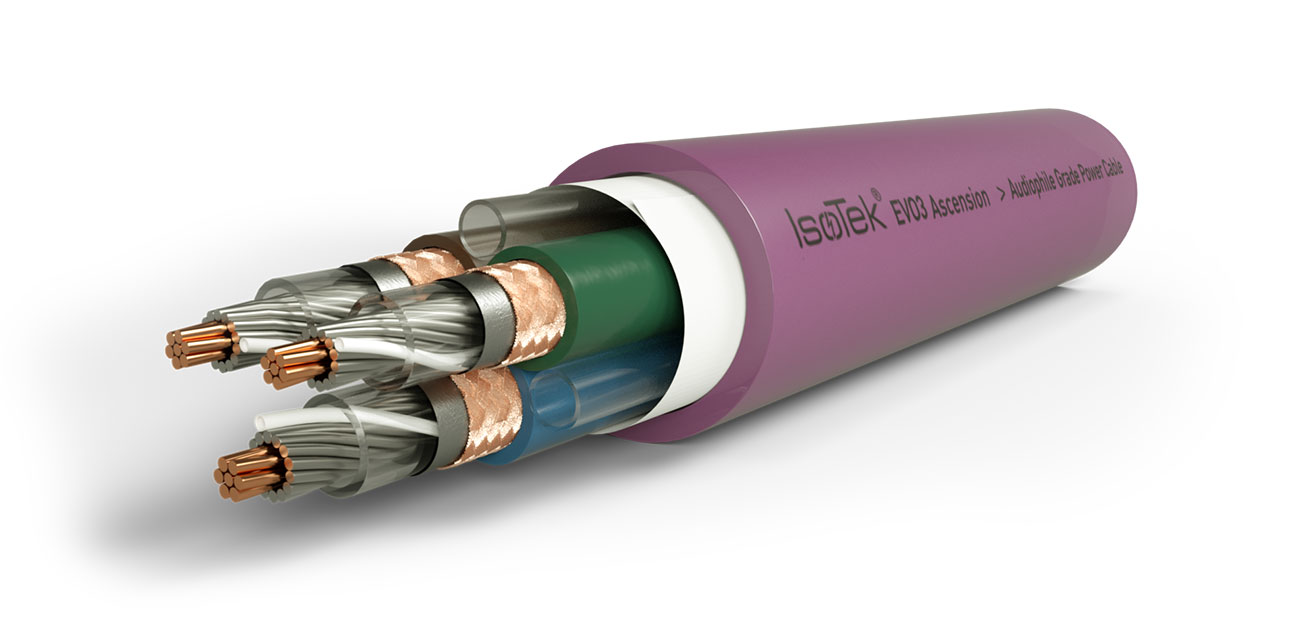

EVO3 Ascension uses 3 x 4.0sqmm silver-plated Ohno Continuous Cast copper conductors with deep cryogenic treatment. The saved specs list air with partial FEP contact as the dielectric, individual OFC braid shielding, 55 Amp cable rating, and silver-plated OFC connectors.
Specifications
| Conductor size | 3 x 4.0sqmm |
|---|---|
| Conductor material | Silver plated Ohno continuous cast copper (OCC) |
| Dielectric | Air with partial Fluorinated Ethylene Propylene (FEP) contact |
| Dielectric constant | 1.1 |
| Filler | Fluorinated Ethylene Propylene (FEP) tubes of air |
| PVC barrier | Mylar/OFC braid |
| Shield | Oxygen free copper braid (OFC) individually applied to each conductor |
| Outer jacket | High flexibility PVC |
| Cable power rating | 55Amp |
| Cable length | 2m, 3m, 5m standard (custom lengths available) |
| Outer diameter | 20mm |
| Termination | Silver-plated OFC audiophile-grade connectors |
| Product type | mains power cable |
| Series | EVO3 |
| Conductor treatment | Deep Cryogenic -196 degrees C |
