EVO3 Elite

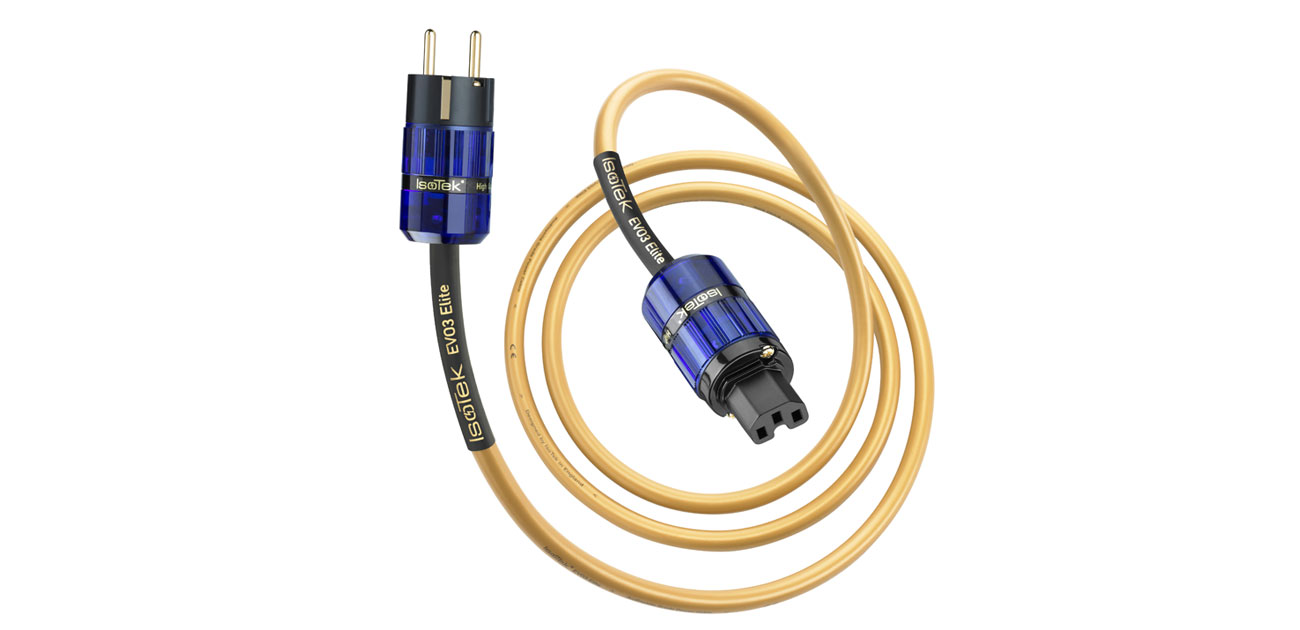

EVO3 mains power cable with 7-core geometry, silver-plated OFC conductors, and OFC braid shielding.
fig. 01 · power cables
EVO3 Elite
From Isotek

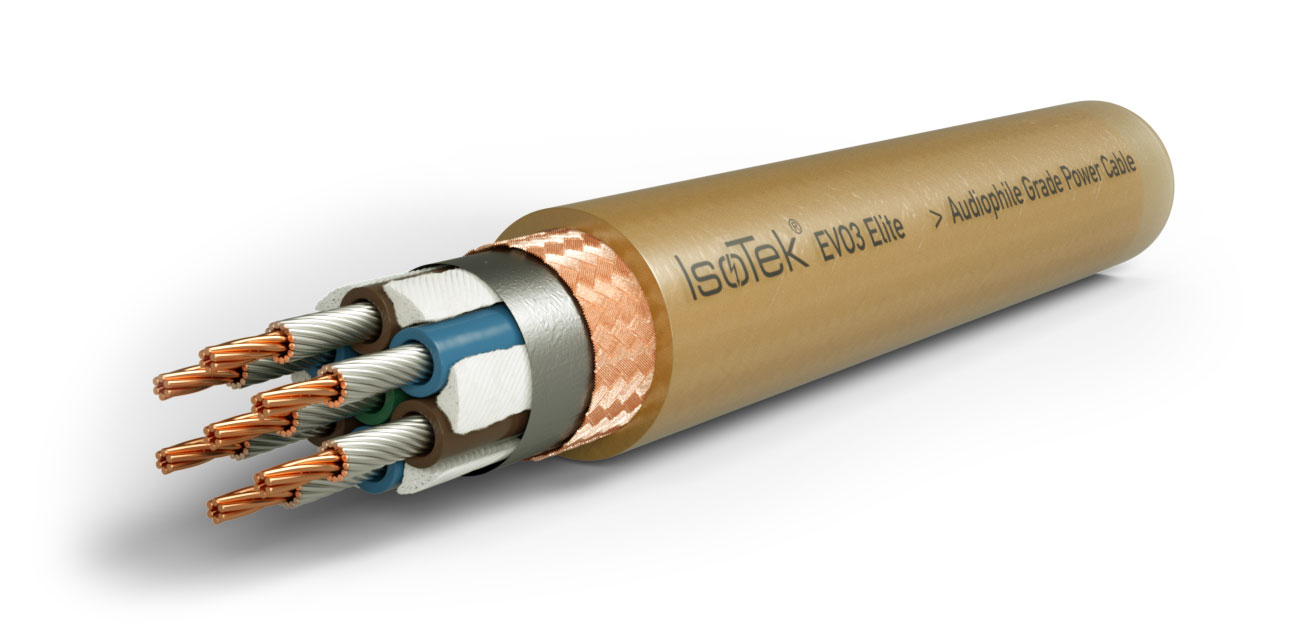

EVO3 Elite uses a 7-core conductor layout with 6 x 1.25sqmm conductors plus a 3.75sqmm conductor. The saved specs list silver-plated 99.9999% oxygen-free copper, FEP dielectric, OFC braid shield, 16 Amp cable rating, and 24ct gold-plated connectors.
Specifications
| Conductor size | 6 x 1.25sqmm, 1x 3.75sqmm |
|---|---|
| Conductor material | Silver-plated 99.9999% Oxygen Free Copper |
| Dielectric | Fluorinated Ethylene Propylene (FEP) |
| Dielectric constant | 2.1 |
| Filler | Cotton |
| PVC barrier | Mylar |
| Shield | Oxygen free copper braid (OFC) |
| Outer jacket | High flexibility PVC |
| Cable power rating | 16Amp |
| Cable length | 2m, 3m, 5m standard(custom lengths available) |
| Outer diameter | 15mm |

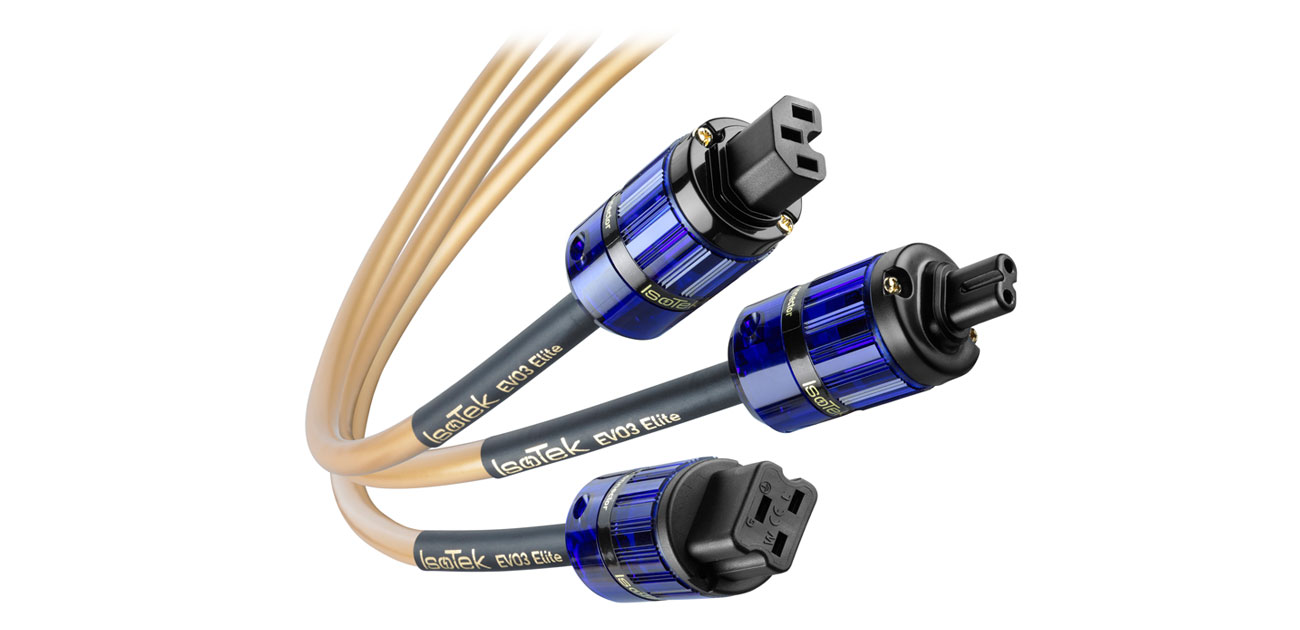

| Termination | 24ct gold plated audiophile-grade connectors |
| Product type | mains power cable |
| Series | EVO3 |
