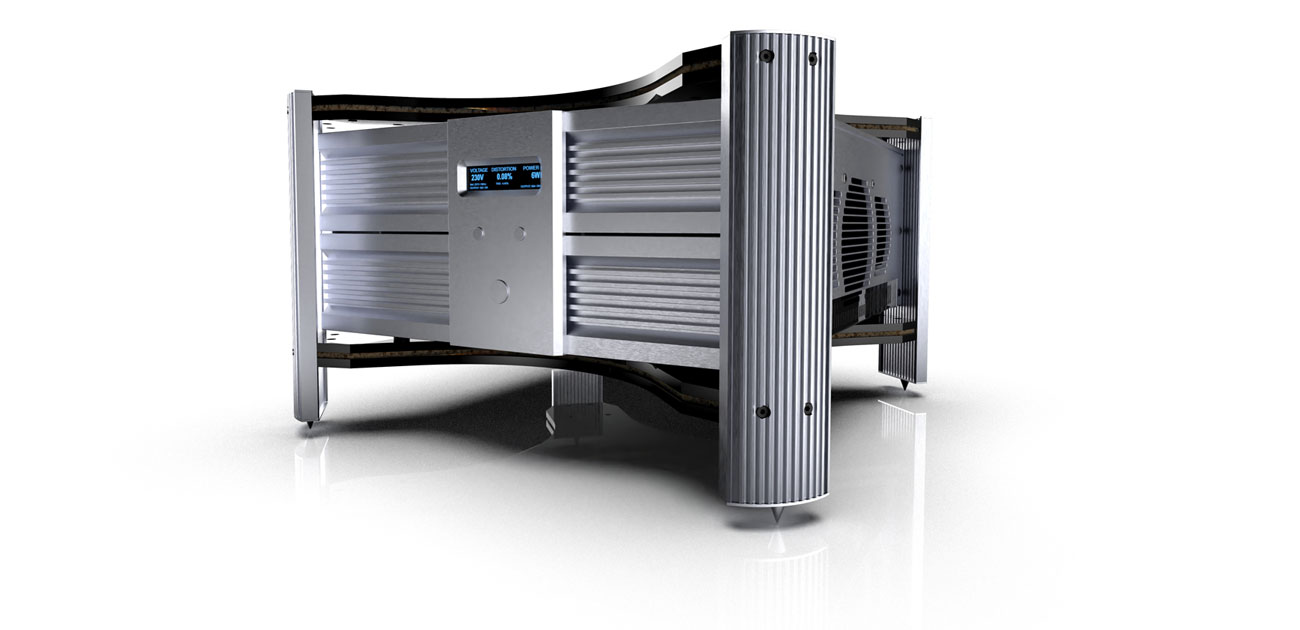

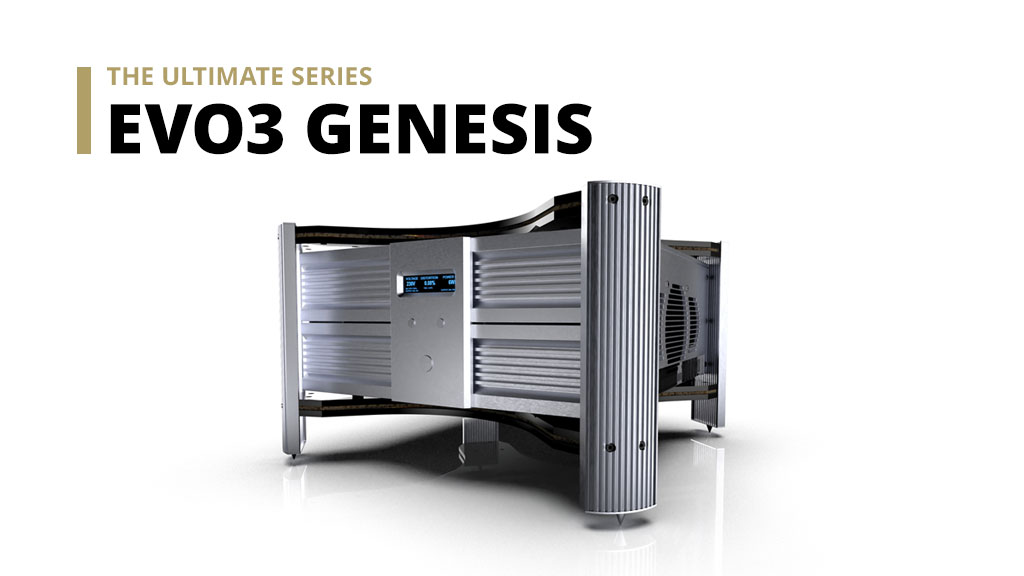

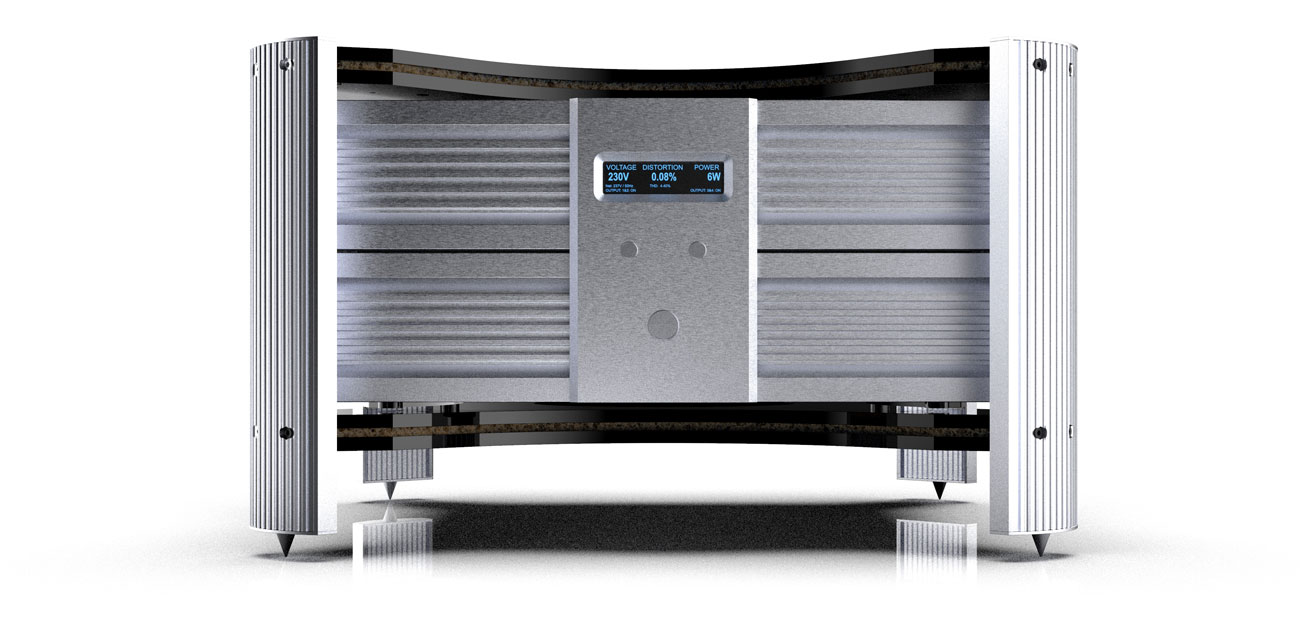

EVO3 Genesis
Four-outlet EVO3 sine-wave regenerator with 0.03% THD and high RFI reduction.
fig. 01 · power conditioning
EVO3 Genesis
From Isotek
EVO3 Genesis is a dual-cell mains sine-wave regeneration unit for source components with steady current draw. The saved specs list 4 outlets, 0.03% THD, +85dB RFI reduction extending down to zero Hz, voltage stabilization within +/- 1%, and a 50kg chassis.
Specifications

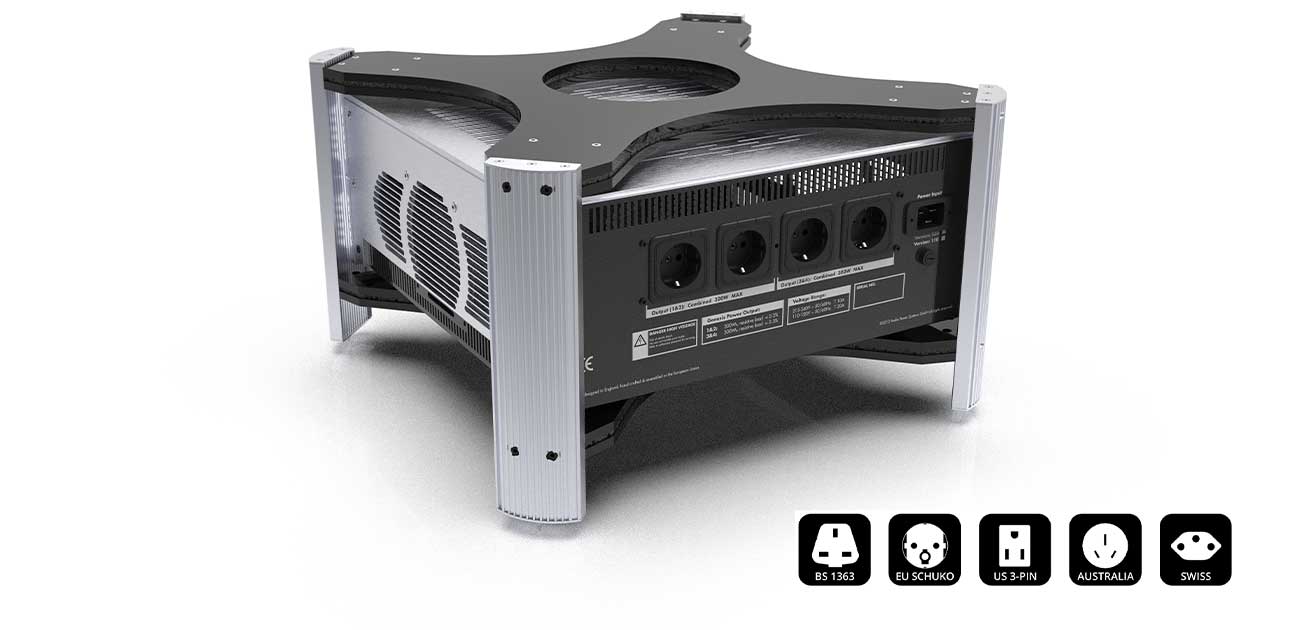

| Output sockets | 4 |
|---|---|
| Sine-wave generation outlets | (1-2) 300W, (3-4) 300W |
| THD | 0.03% |
| RFI reduction | +85dB extending down to zero Hz |
| Voltage stabilization | 230V or 115V +/- 1% |
| Mains inlet | 10A/230V, 20A/115V - IEC C20 |
| Mains voltage | 100 to 240V depending upon model |
| Mains frequency | 50 to 60Hz depending upon model |
| DIMENSIONS (W x H x D) | 500 x 300 x 500mm |
| Weight | 45Kg |
| Product type | mains sine-wave regenerator |
| Series | EVO3 |
