Isotek · Power Conditioning
EVO3 Genesis One
Single-cell EVO3 sine-wave regenerator with one output, System Link, 0.03% THD, and voltage stabilization.
fig. 01 · power conditioning

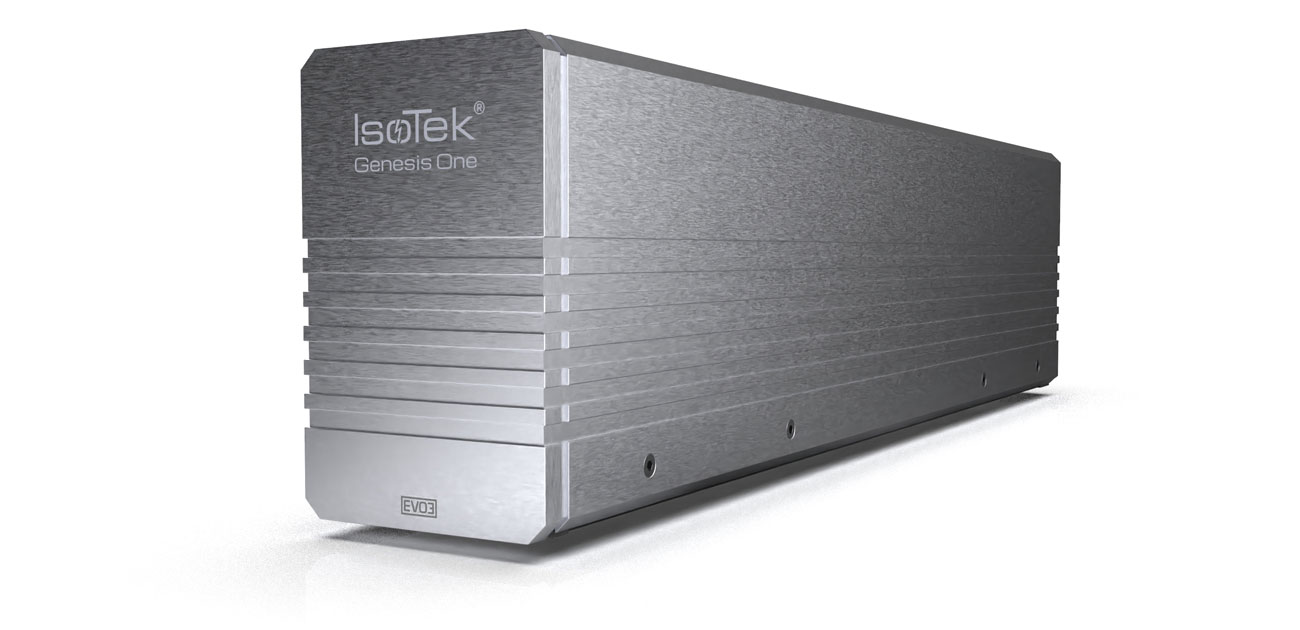

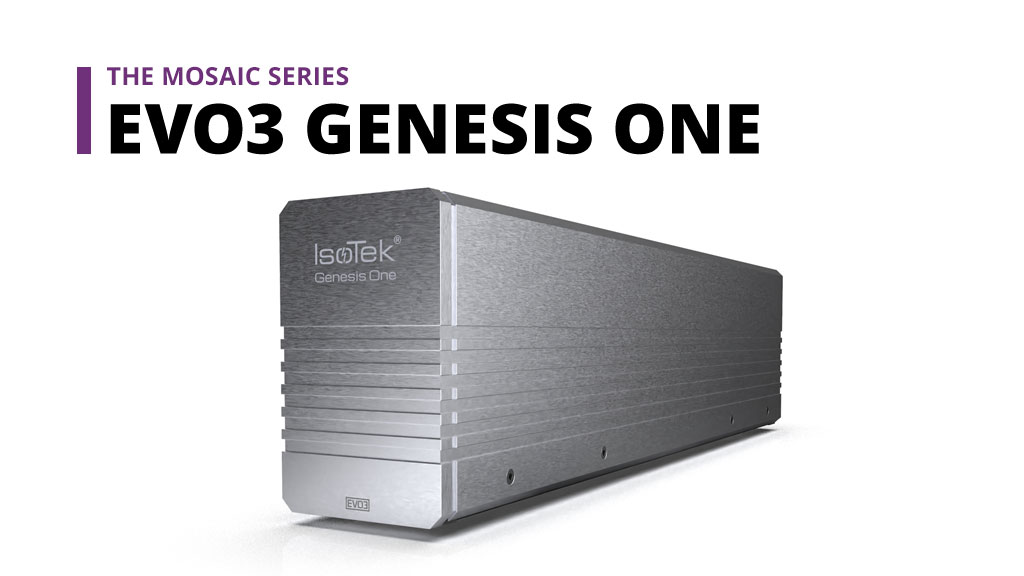

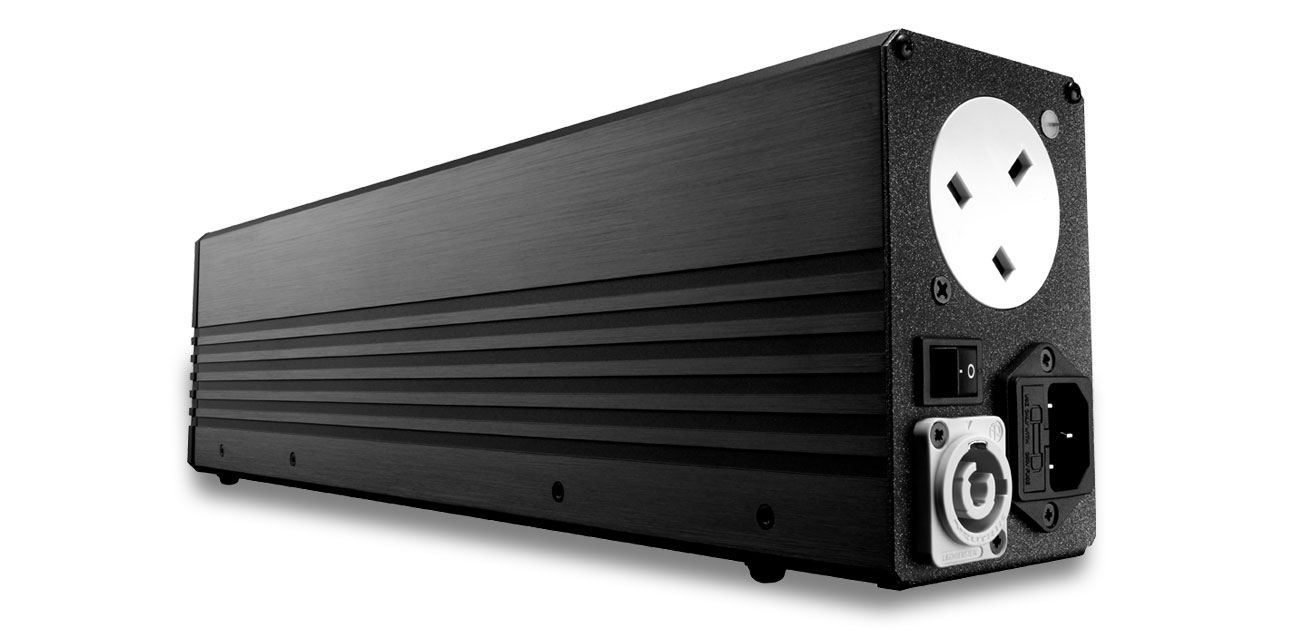

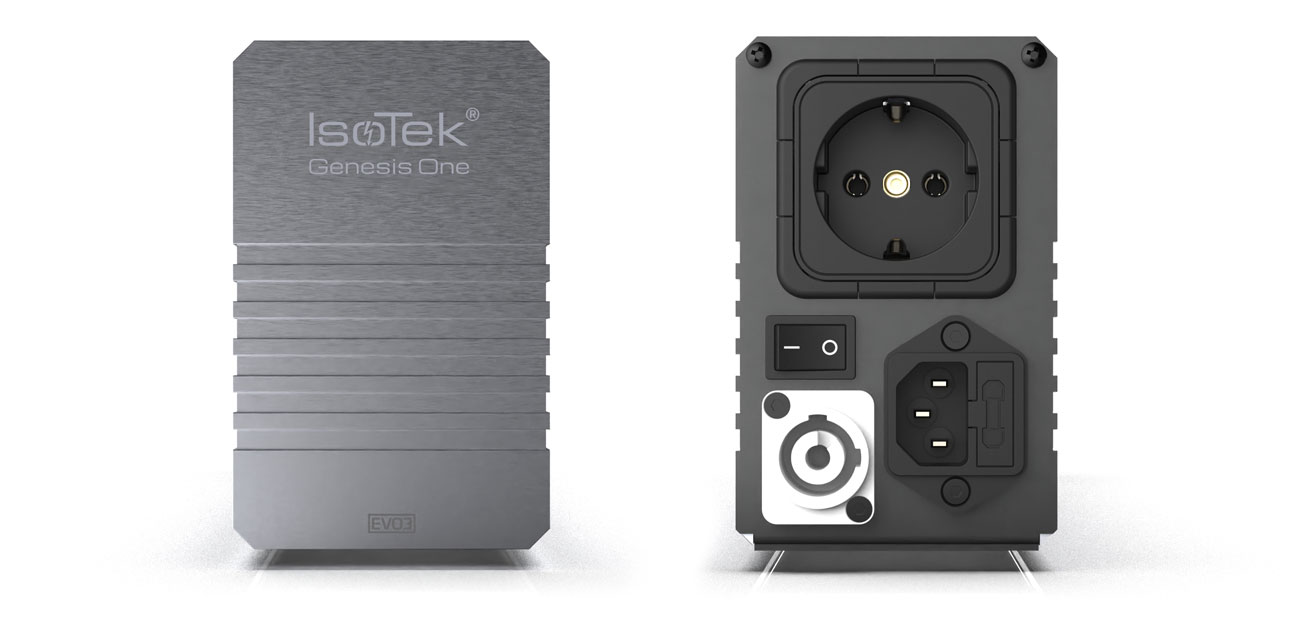

EVO3 Genesis One
From Isotek
EVO3 Genesis One is a compact single-cell mains sine-wave regenerator for one connected component. The saved specs list 1 output plus System Link, 100W sine-wave generation output, 0.03% THD, and 230V or 115V voltage stabilization within +/- 1%.
Specifications
| Output sockets | 1 + System Link |
|---|---|
| Sine-wave generation outlets | 100W |
| THD | 0.03% |
| Voltage stabilization | 230V or 115V +/- 1% |
| Mains inlet | 10A IEC C14 |
| Mains voltage | 100 to 240V depending upon model |
| Mains frequency | 50 to 60Hz depending upon model |
| System Link | x1 |
| DIMENSIONS (W x H x D) | 75 x 125 x 470mm |
| Weight | 10Kg |
| Product type | mains sine-wave regenerator |
| Series | EVO3 |
