Isotek · Power Conditioning
EVO3 Mini Mira
Two-outlet EVO3 power conditioner for AV screens and projectors, using IsoTek's Triple Resonance Filter circuit.
fig. 01 · power conditioning

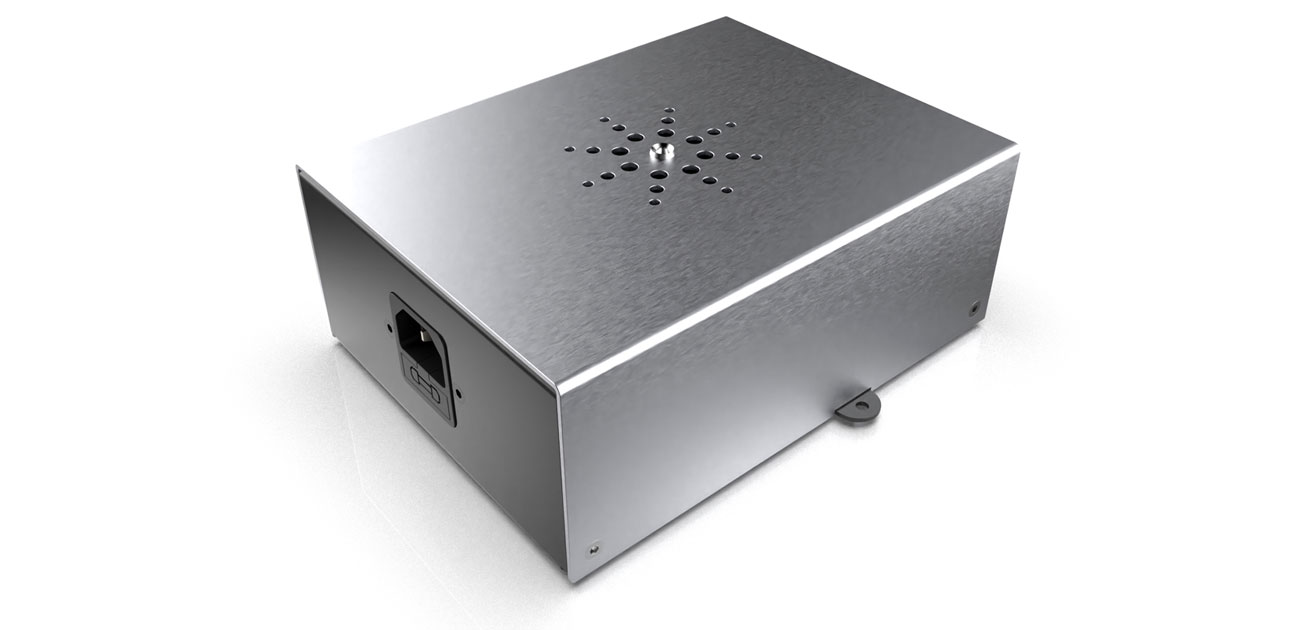

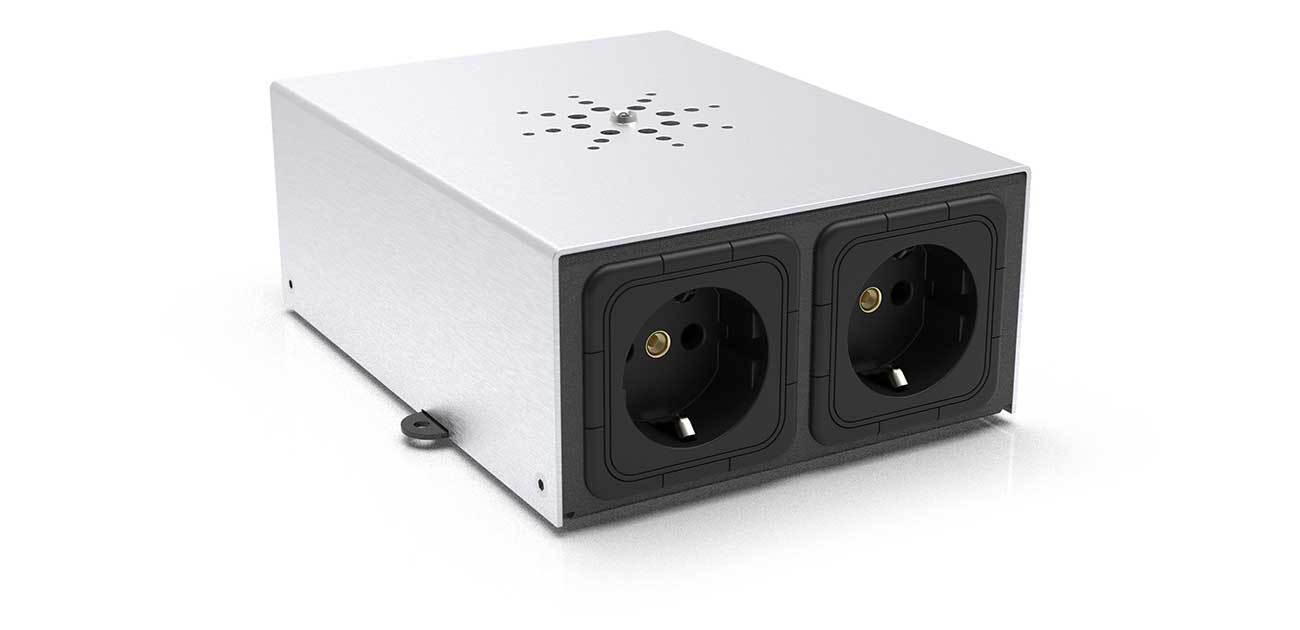

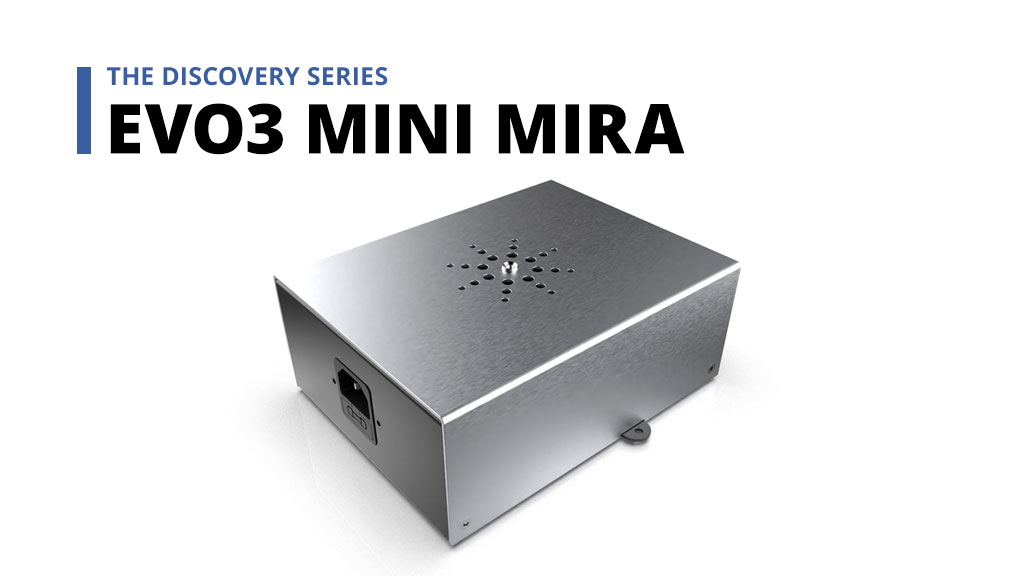

EVO3 Mini Mira
From Isotek
EVO3 Mini Mira is aimed at AV displays and projectors rather than a full audio rack. It has 2 outlets with separate visual and component ratings, a 10A IEC C14 inlet, 22,500A surge protection, and runs on 100-240V / 50-60Hz.
Specifications
| Output sockets | 2 |
|---|---|
| Output socket types | UK, EU, US, AU & CH |
| Mains inlet | 10A IEC C14 |
| Mains voltage | 100-240V / 50-60Hz |
| Visual outlet - 230V | x1 (10A 2'300W total) |
| Visual outlet - 115V | x1 (10A 1'150W total) |
| Component outlet - 230V | x1 (10A 2'300W total) |
| Component outlet - 115V | x1 (10A 1'150W total) |
| Surge protection | 22'500A |
| DIMENSIONS (W x H x D) | 130 x 65 x 170mm |
| Weight | 0.9Kg |
| Product type | mains power conditioner |
| Series | EVO3 |
