Isotek · Power Conditioning
EVO3 Mosaic Genesis
Hybrid EVO3 power regenerator combining sine-wave generation outlets with high-current conditioned outlets.
fig. 01 · power conditioning

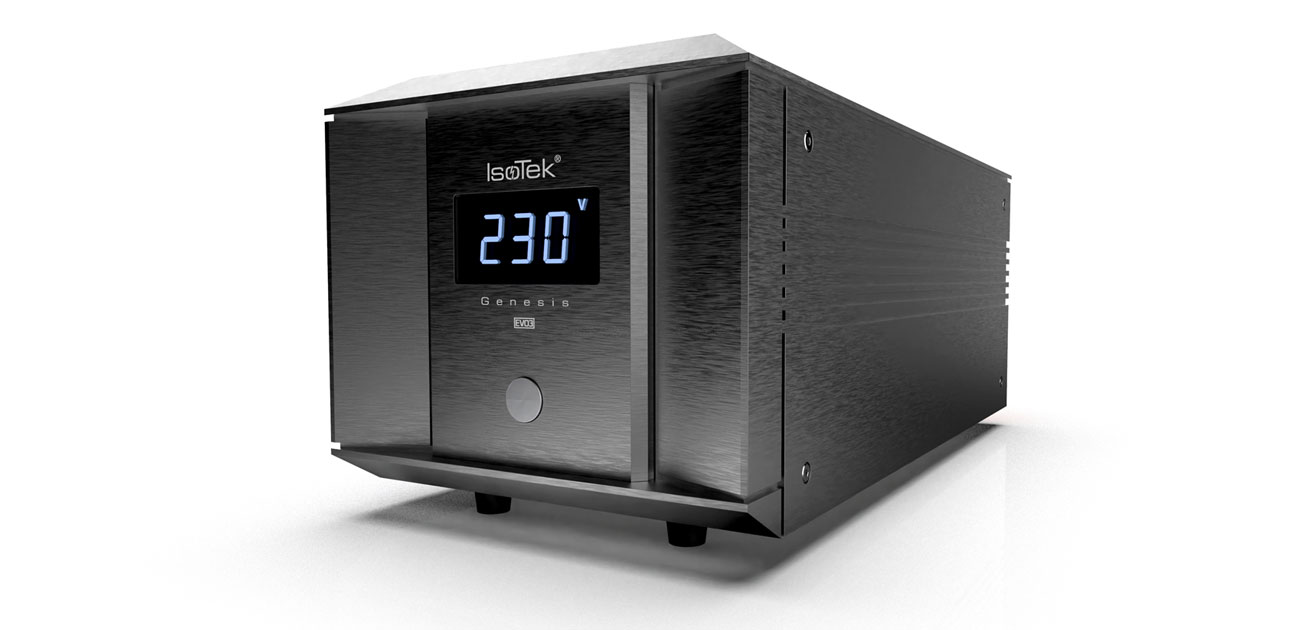

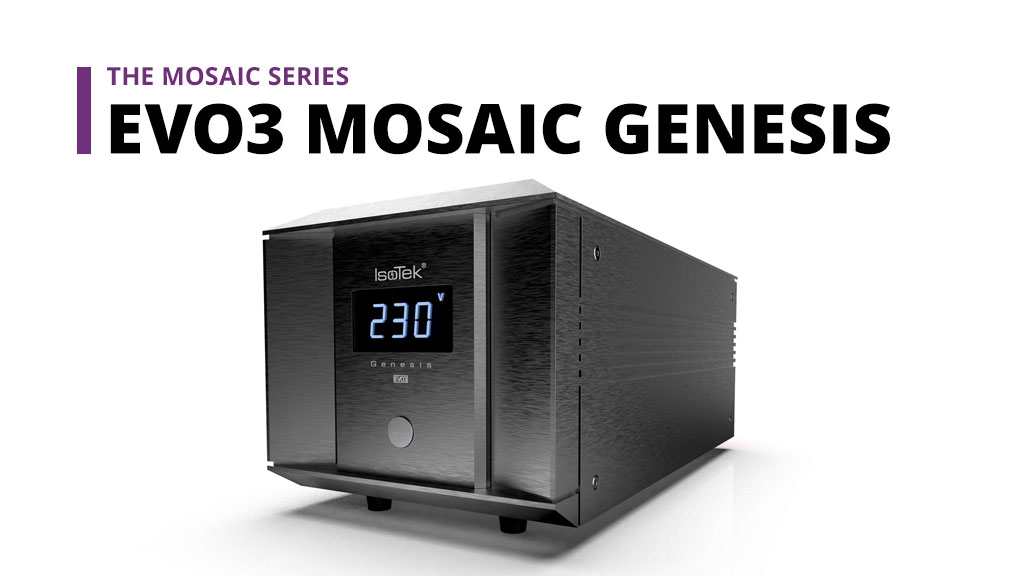

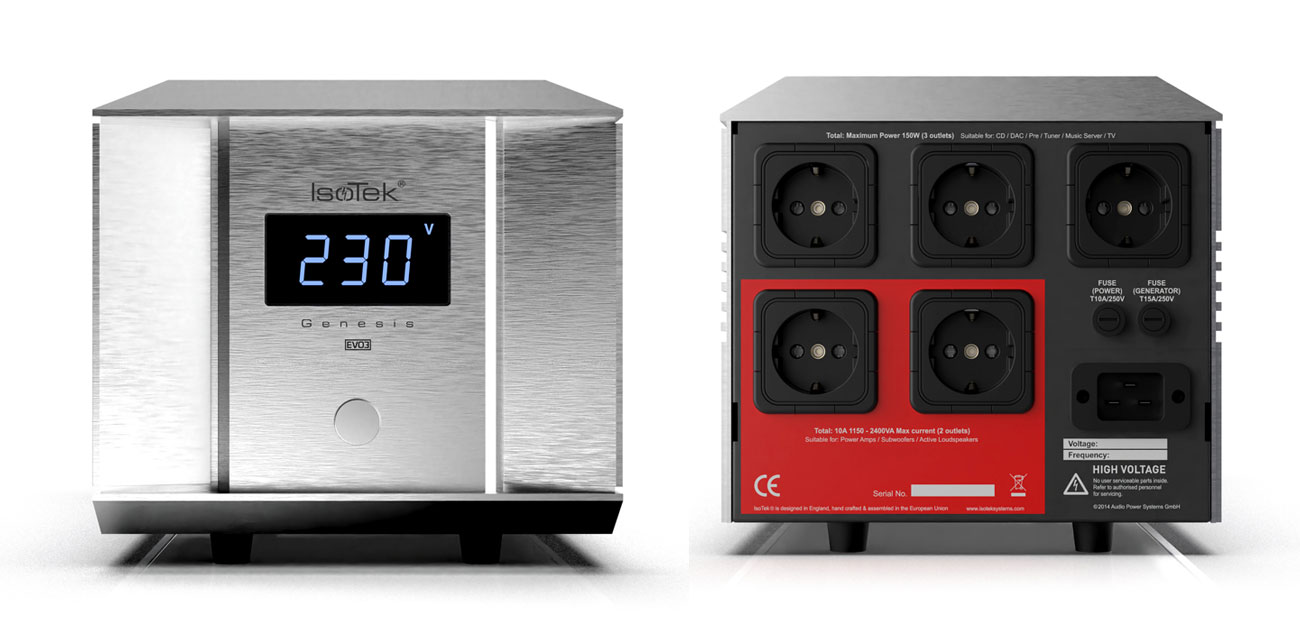

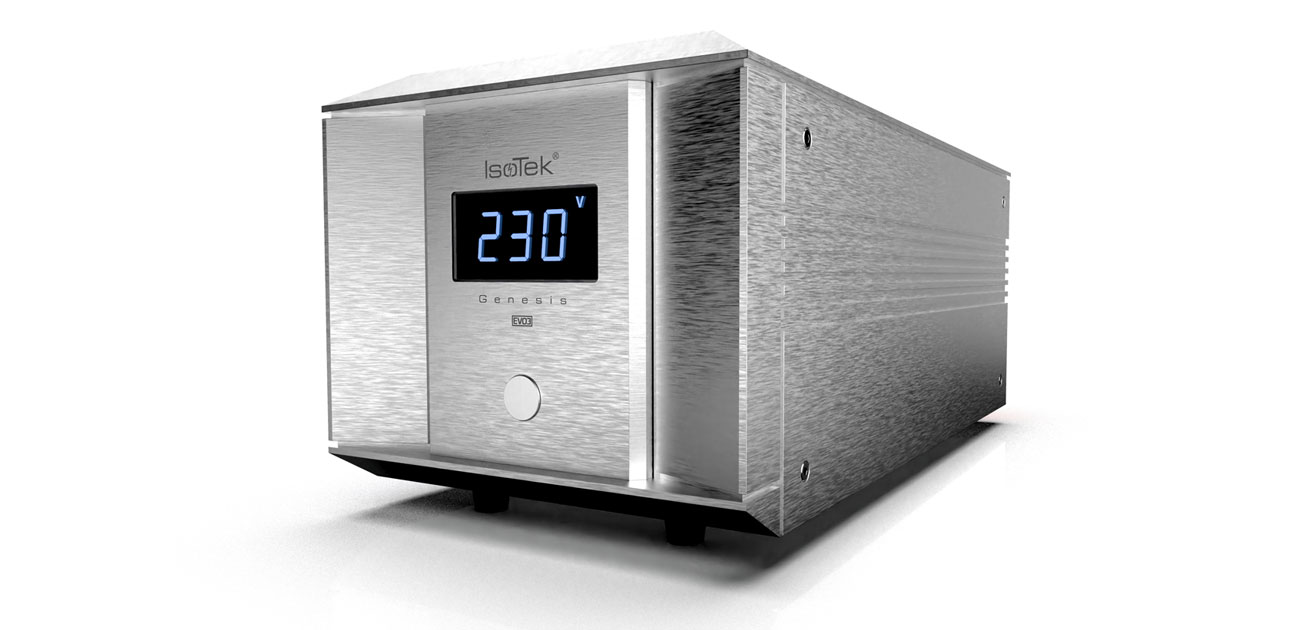

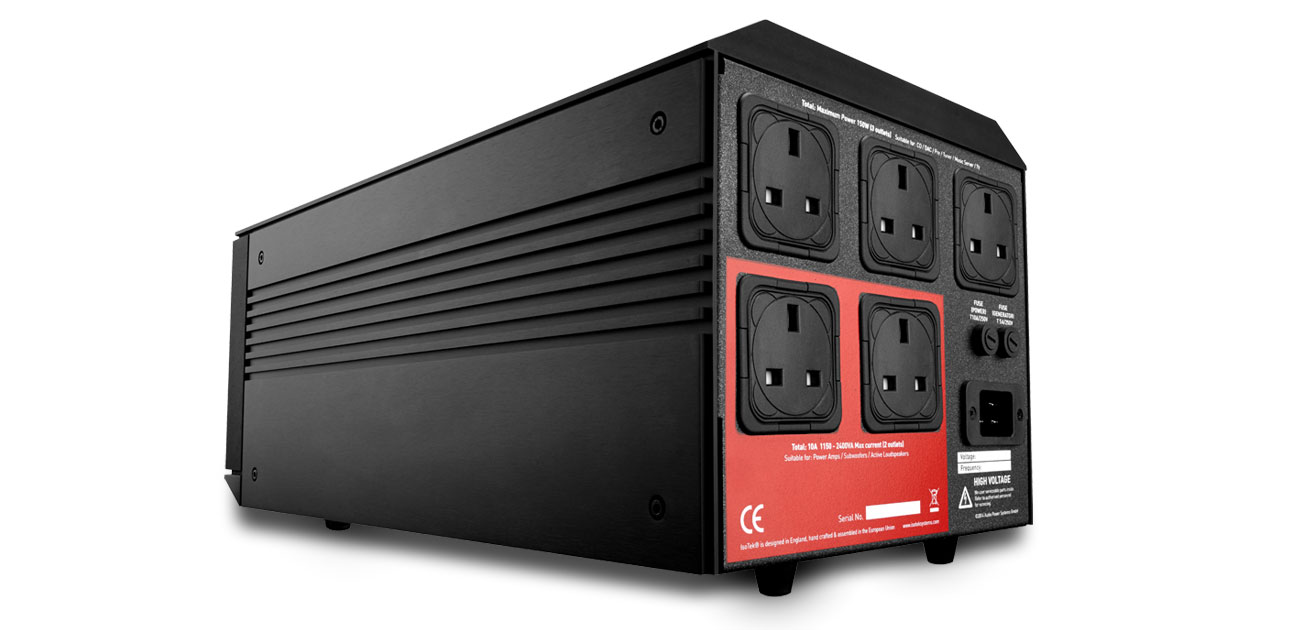

EVO3 Mosaic Genesis
From Isotek
EVO3 Mosaic Genesis combines 3 sine-wave generation outlets with 2 high-current conditioned outlets. The saved specs list 0.03% THD, 230V or 115V voltage stabilization within +/- 1%, a 10A IEC C20 mains inlet, and a 20kg chassis.
Specifications
| Output sockets | 5 |
|---|---|
| Sine-wave generation outlets | (1-3) 150W (total) |
| High-current outlets | (4-5) 2'300W (UK, EU, AU, CH) / 1'150W (US) |
| THD | 0.03% |
| Voltage stabilization | 230V or 115V +/- 1% |
| Mains inlet | 10A IEC C20 |
| Mains voltage | 100 to 240V depending upon model |
| Mains frequency | 50 to 60Hz depending upon model |
| DIMENSIONS (W x H x D) | 225 x 225 x 470mm |
| Weight | 20Kg |
| Product type | mains sine-wave regenerator |
| Series | EVO3 |
