EVO3 Optimum

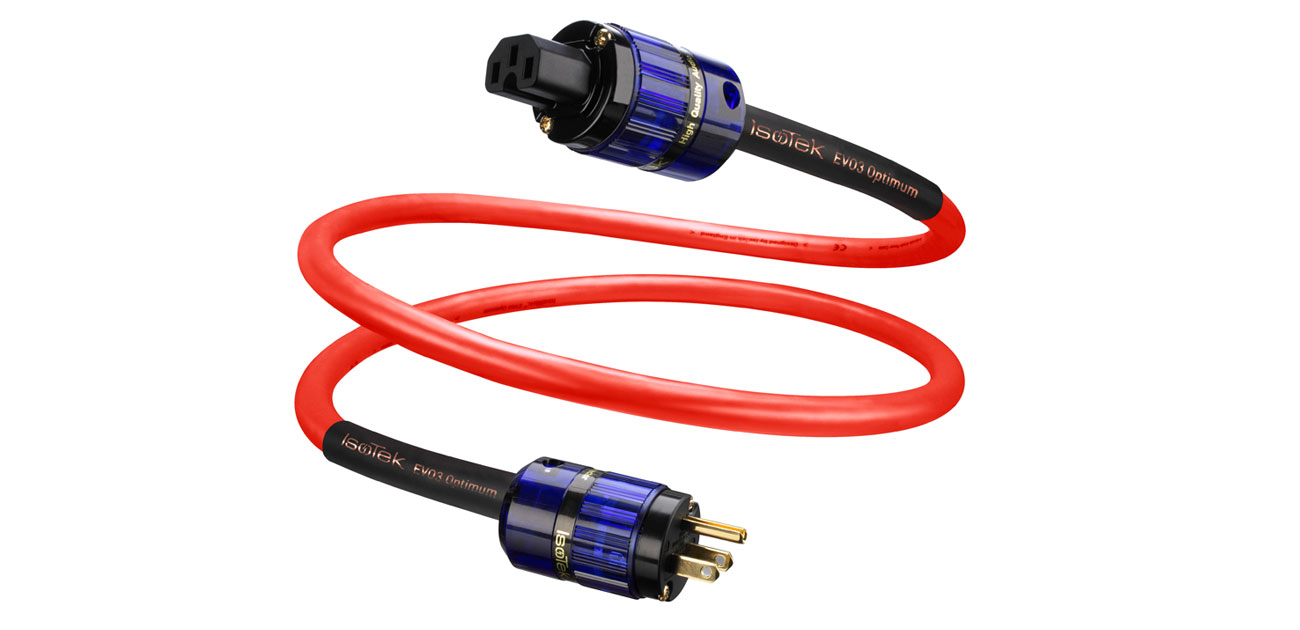

EVO3 mains power cable with square silver-plated OCC conductors, FEP dielectric, and 30 Amp cable rating.
fig. 01 · power cables
EVO3 Optimum
From Isotek

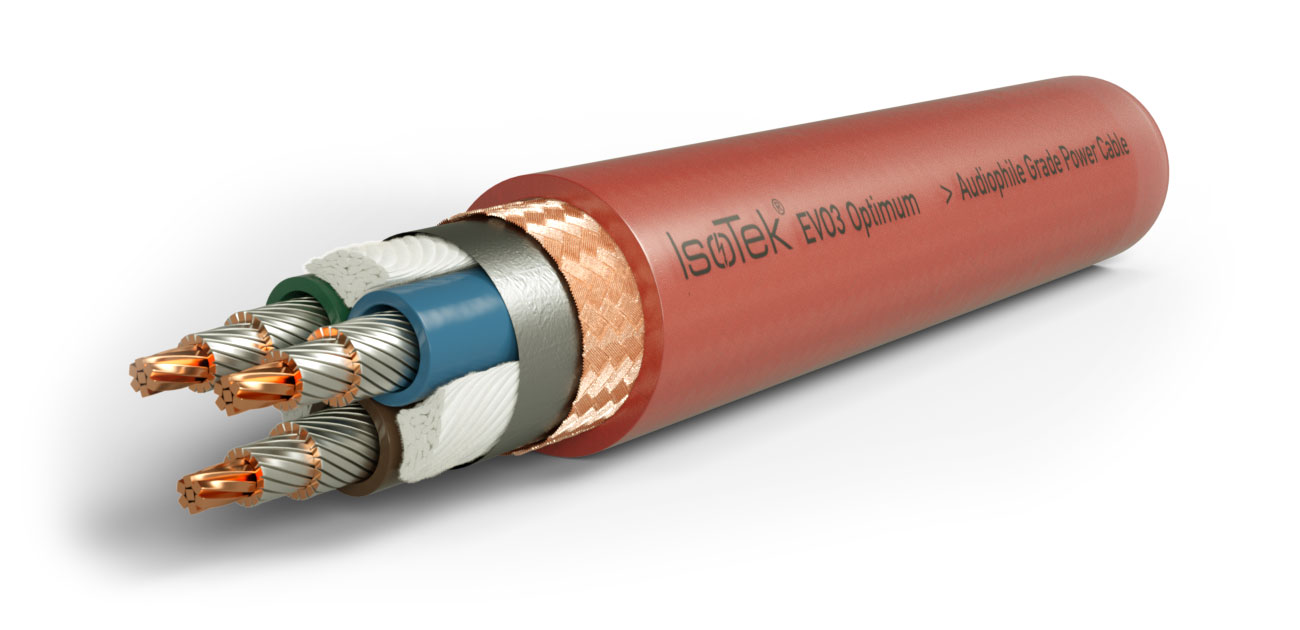

EVO3 Optimum uses 3 x 3.0sqmm square conductor strands made from silver-plated Ohno Continuous Cast copper. It has FEP dielectric, an OFC braid shield, a 30 Amp cable rating, a 12.5mm outer diameter, and 24ct gold-plated connectors.
Specifications
| Conductor size | 3 x 3.0sqmm (square conductor strands) |
|---|---|
| Conductor material | Silver-plated Ohno Continuous Cast Copper |
| Dielectric | Fluorinated Ethylene Propylene (FEP) |
| Dielectric constant | 2.1 |
| Filler | Cotton |
| PVC barrier | Mylar |
| Shield | Oxygen free copper braid (OFC) |
| Outer jacket | High flexibility PVC |
| Cable power rating | 30Amp |
| Cable length | 2m, 3m, 5m standard (custom lengths available) & System Link 0,5m, 1m, 2m |
| Outer diameter | 12.5mm |
| Termination | 24ct gold plated audiophile-grade connectors |
| Product type | mains power cable |
| Series | EVO3 |
