Isotek · Power Cables · Cables
EVO3 Premier
EVO3 mains power cable with silver-plated 99.9999% oxygen-free copper conductors and FEP dielectric.
fig. 01 · power cables
EVO3 Premier
From Isotek

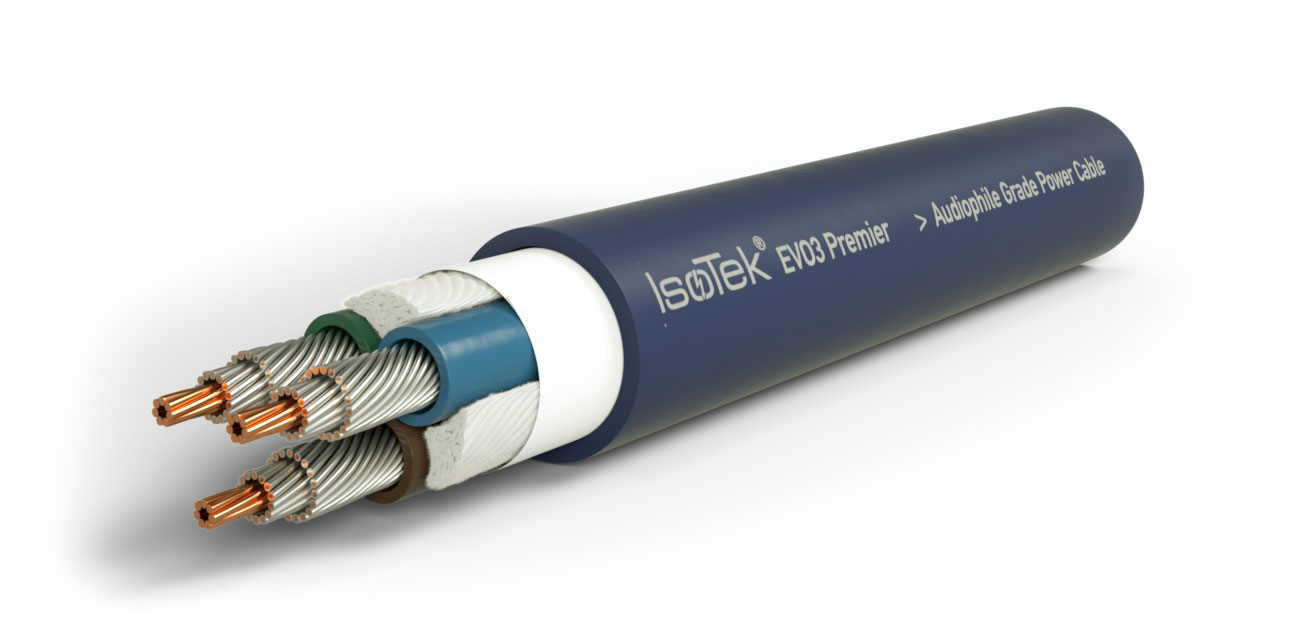

EVO3 Premier is a mains cable built with 3 x 2.0sqmm conductors and silver-plated 99.9999% oxygen-free copper. The saved specs list FEP dielectric, cotton filler, paper PVC barrier, 16 Amp cable rating, and 24ct gold-plated connectors.
Specifications
| Conductor size | 3 x 2.0sqmm (AU/NZ 2.5sqmm) |
|---|---|
| Conductor material | Silver-plated 99.9999% Oxygen Free Copper |
| Dielectric | Fluorinated Ethylene Propylene (FEP)(AU/NZ PVC) |
| Dielectric constant | FEP 2.1 (AU/NZ PVC 3.18) |
| Filler | Cotton |
| PVC barrier | Paper |
| Outer jacket | High flexibility PVC |
| Cable power rating | 16 Amp |

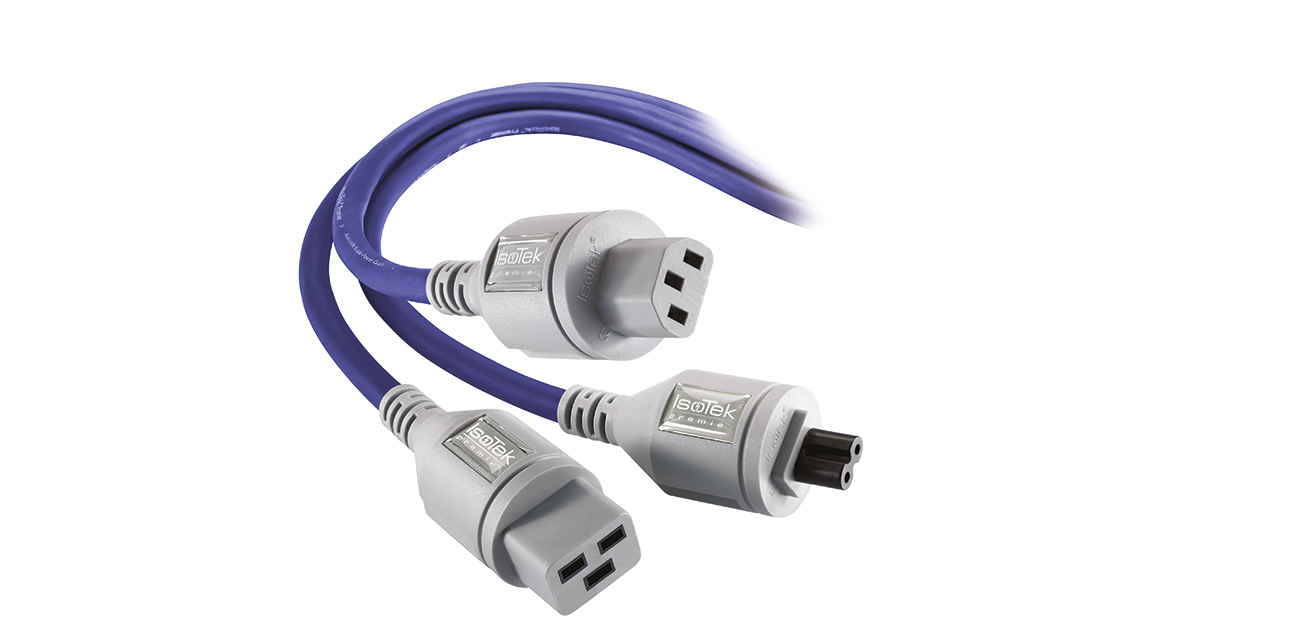

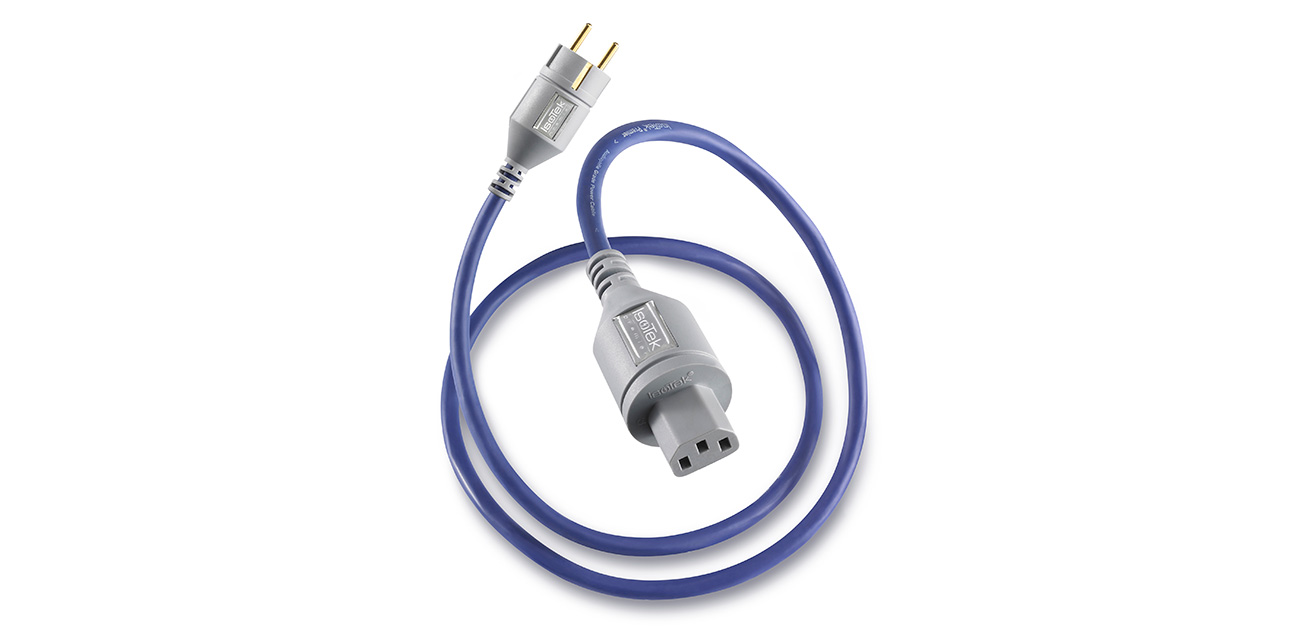

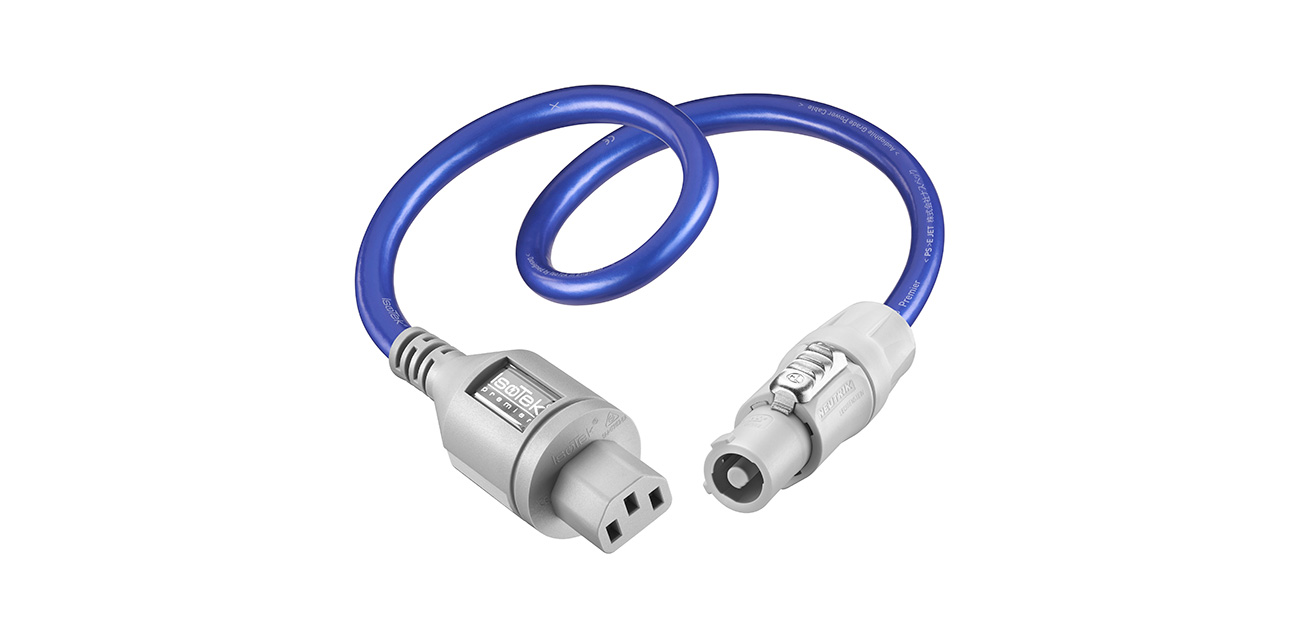

| Cable length | 1.5m & 3m (3m only C13/C19, no custom length) & System Link 0,5m (AU/NZ 1.5m only) |
| Outer diameter | 10mm |
| Termination | 24ct gold plated audiophile-grade connectors |
| Product type | mains power cable |
| Series | EVO3 |
