Isotek · Power Cables · Cables
EVO3 Syncro
DC-cancelling EVO3 power cable with silver-plated OCC conductors, FEP dielectric, and OFC braid shield.
fig. 01 · power cables
EVO3 Syncro
From Isotek

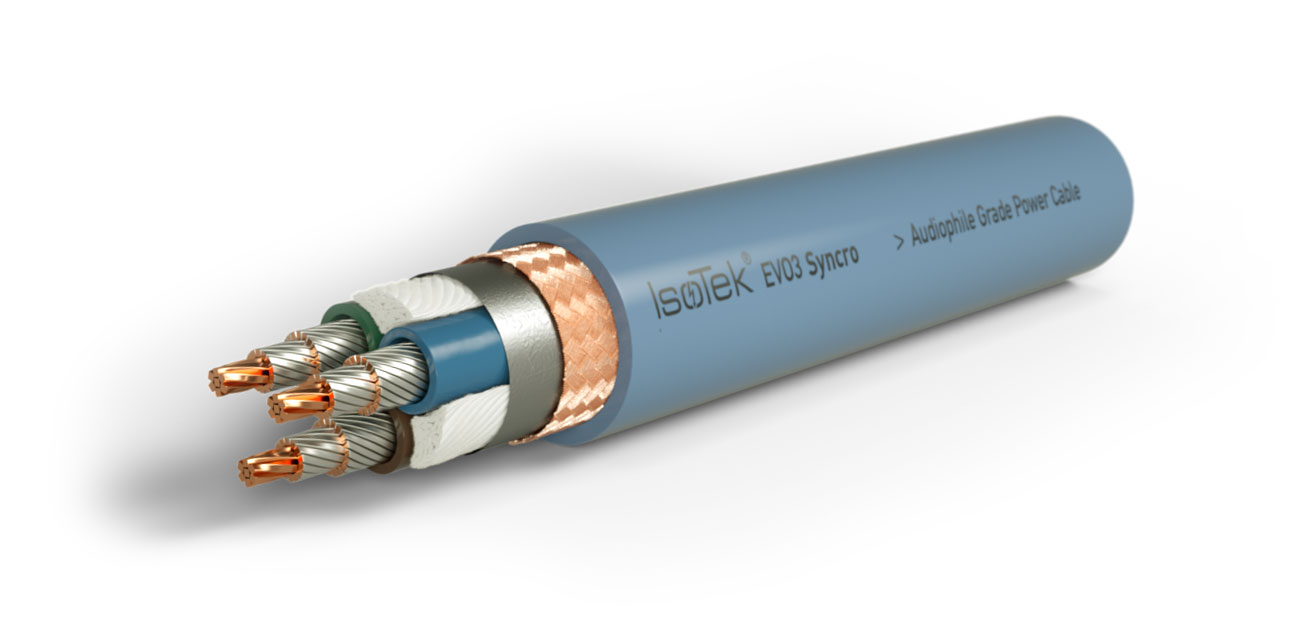

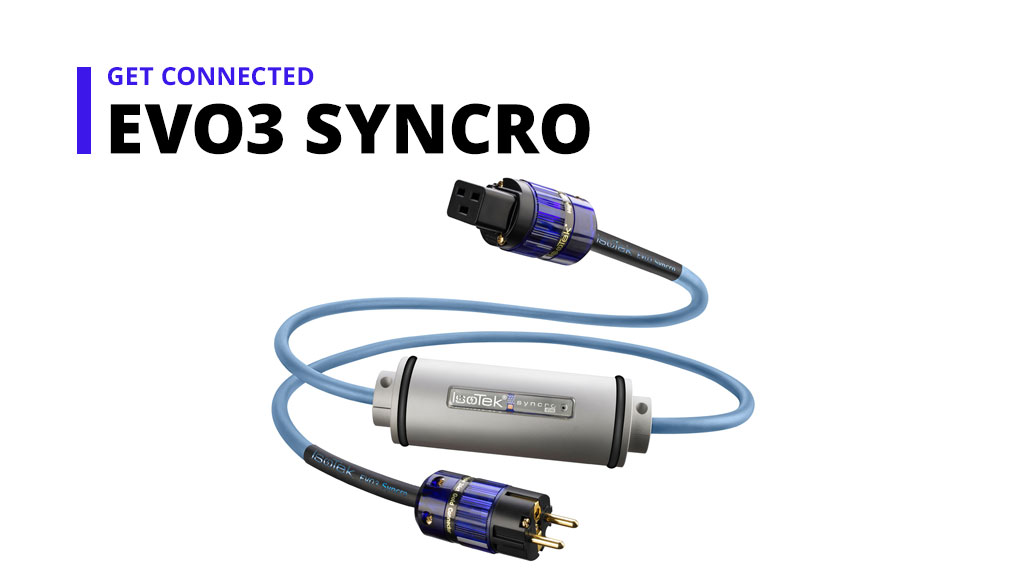

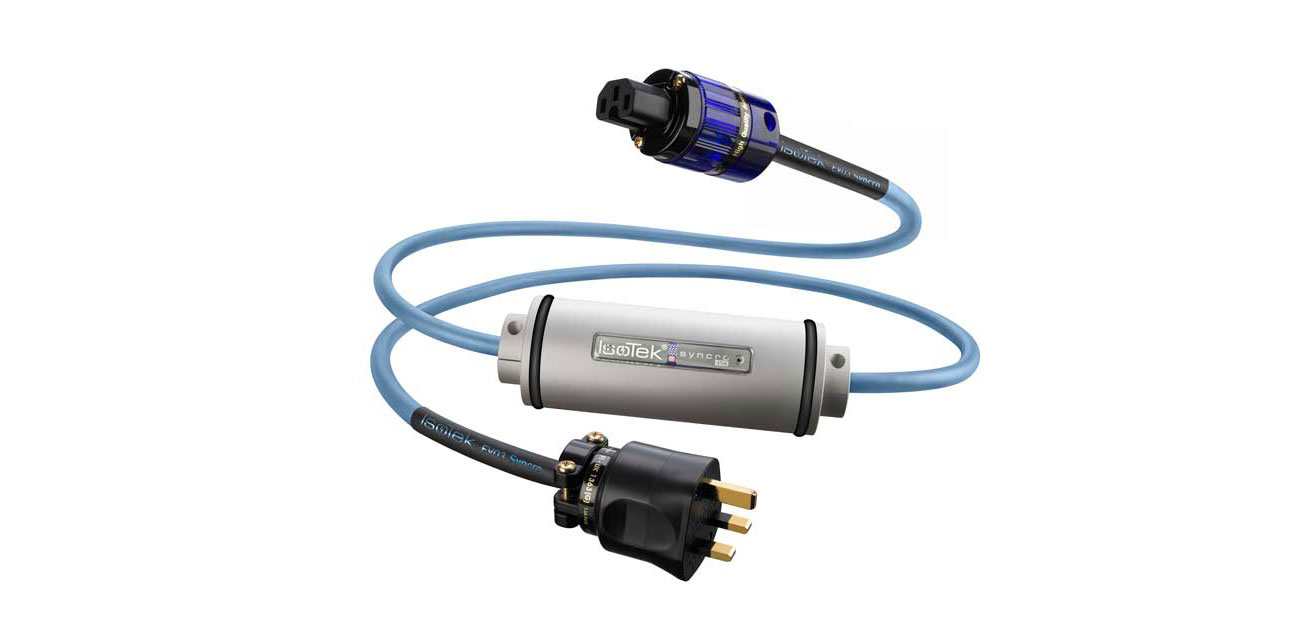

EVO3 Syncro is a mains power cable with DC-cancelling electronics for reducing transformer hum. It uses 3 x 3.0sqmm square conductor strands in silver-plated Ohno Continuous Cast copper, with FEP dielectric, OFC braid shielding, and 24ct gold-plated connectors.
Specifications
| Conductor size | 3 x 3.0sqmm (square conductor strands) |
|---|---|
| Conductor material | Silver-plated Ohno Continuous Cast Copper |
| Dielectric | Fluorinated Ethylene Propylene (FEP) |
| Dielectric constant | 2.1 |
| Filler | Cotton |
| PVC barrier | Mylar |
| Shield | Oxygen free copper braid (OFC) |
| Outer jacket | High flexibility PVC |
| Cable power rating | 30Amp |
| Cable length | 2m standard (custom lengths available) |
| Outer diameter | 12.5mm |
| Termination | 24ct gold plated audiophile-grade connectors |
| Product type | DC-cancelling mains power cable |
| Series | EVO3 |
