Isotek · Power Conditioning
EVO3 Titan
High-current EVO3 mains power conditioner with 2 outlets, System Link, and 112,500A surge protection.
fig. 01 · power conditioning

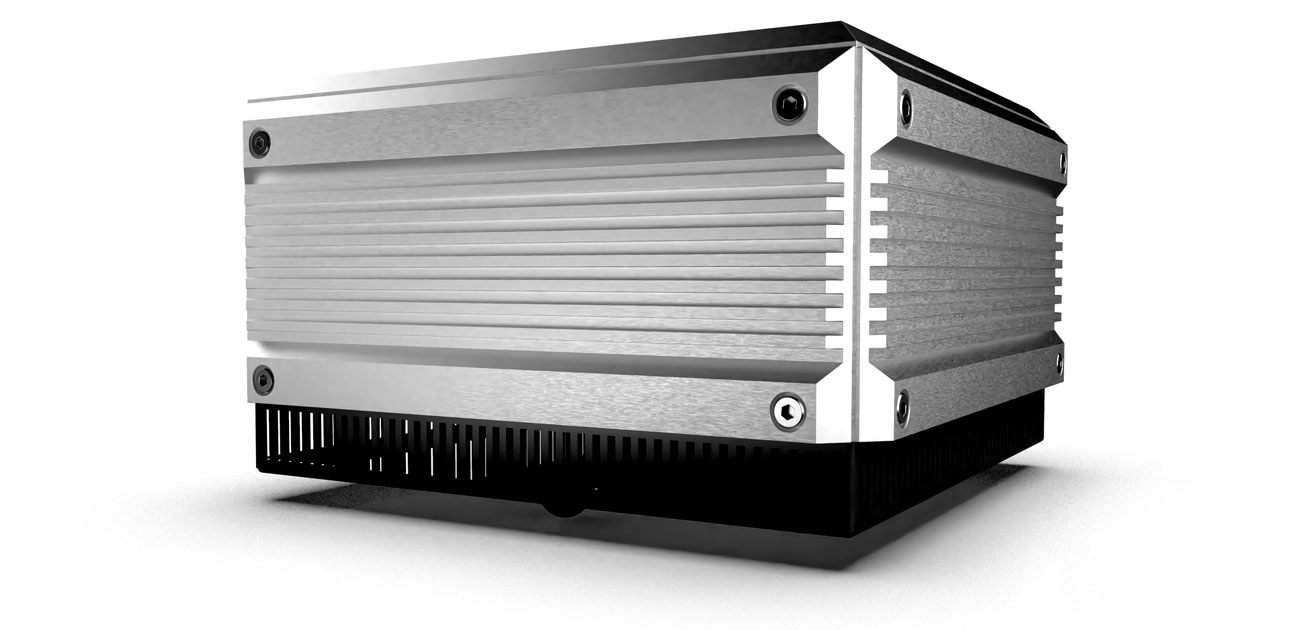

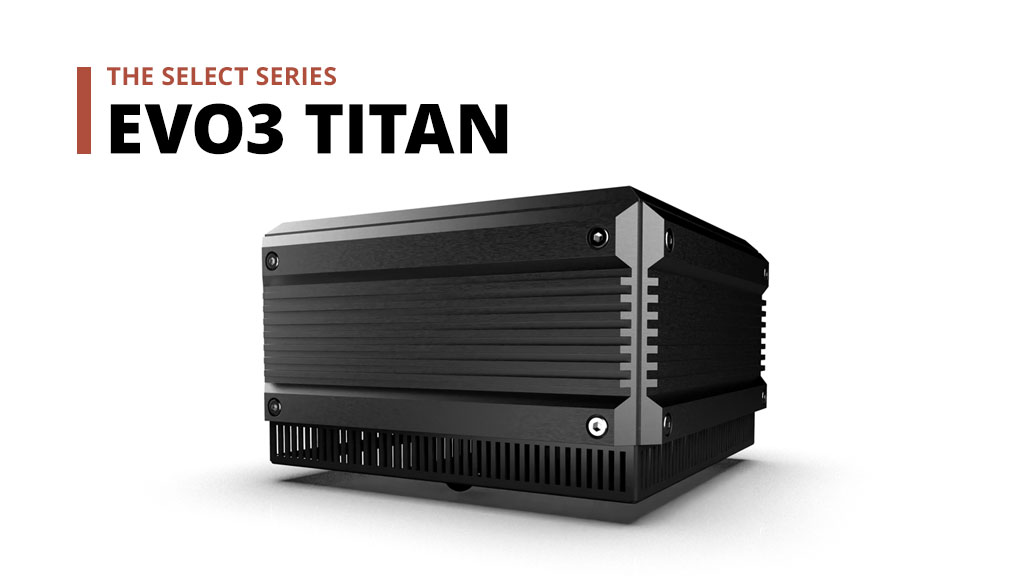

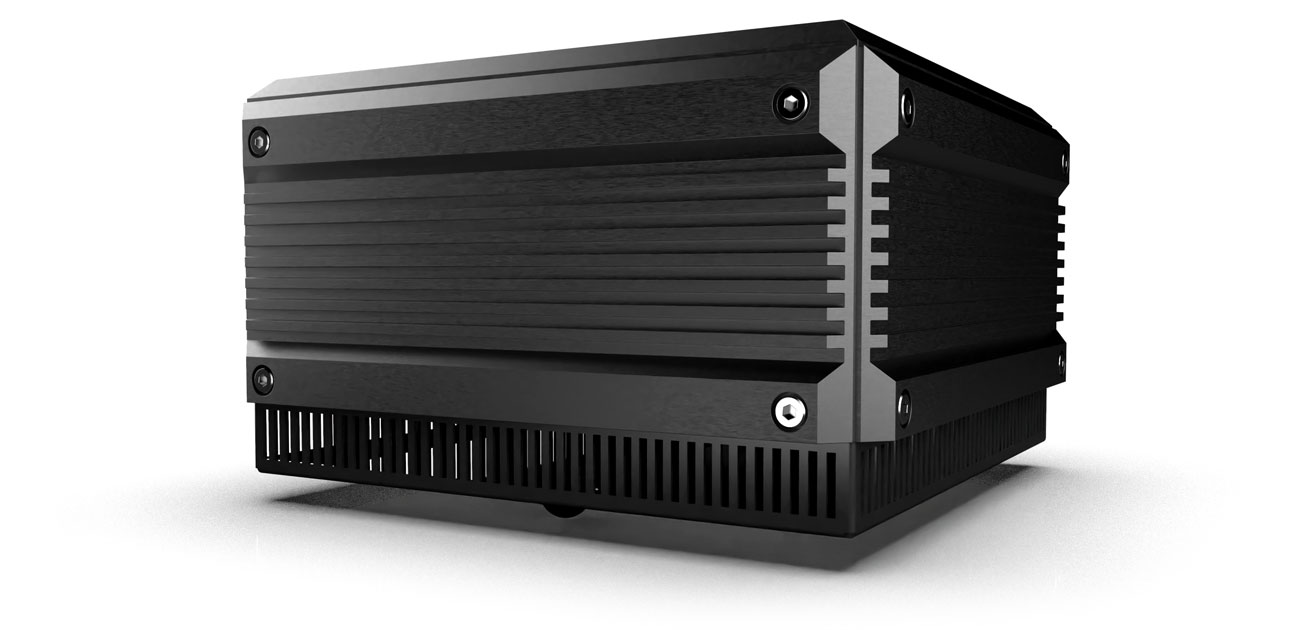

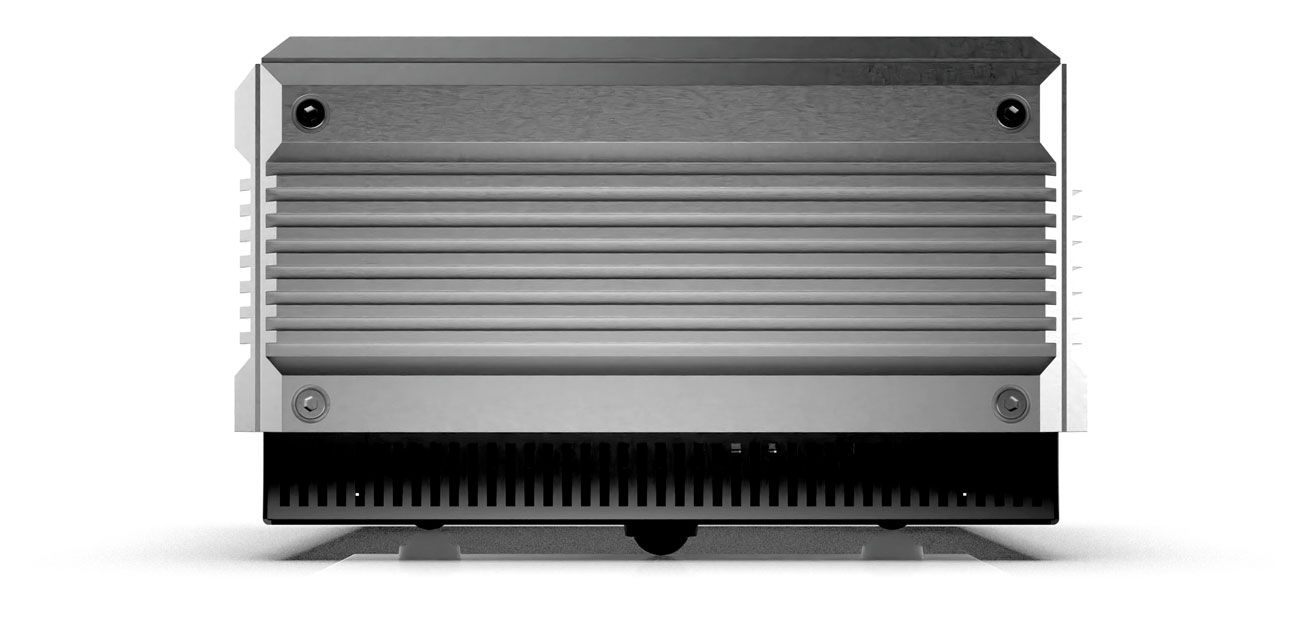

EVO3 Titan
6 photographs · 5 shown
From Isotek
EVO3 Titan is the high-current EVO3 conditioner built around IsoTek's Direct Coupled conditioning. It has 2 outlets plus System Link, a 16A IEC C20 mains inlet, high-current outlet ratings for 230V and 115V systems, and a 17kg chassis.
Specifications

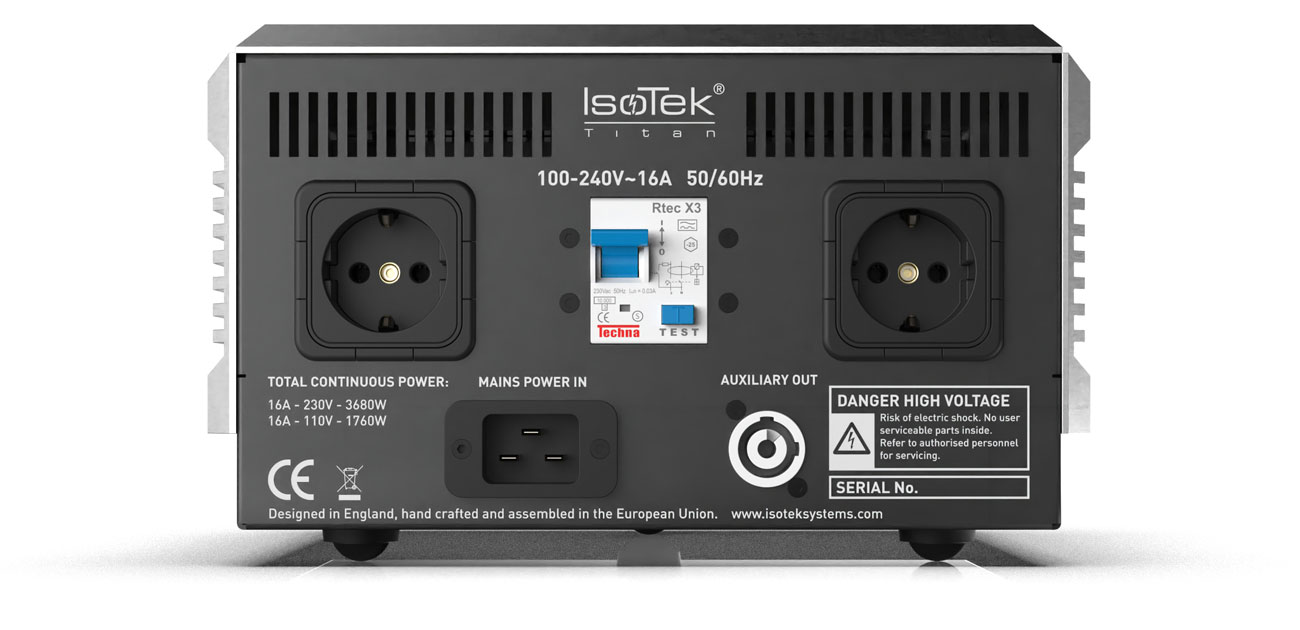

| Output sockets | 2 + System Link |
|---|---|
| Output socket types | UK, EU, US, AU & CH |
| Mains inlet | 16A IEC C20 |
| Mains voltage | 100-240V / 50-60Hz |
| High-current outlets - 230V | x2 (16A 3'680W total) |
| High-current outlets - 115V | x2 (16A 1'840W total) |
| System Link | x1 |
| Surge protection | 112'500A |
| Dimensions (W x H x D) | 275 x1 82.5 x 275mm |
| Weight | 17kg |
| Product type | mains power conditioner |
| Series | EVO3 |
