Isotek · Power Conditioning
SMART Delta PDU
Network-controlled 2U SMART PDU with 16 C14 IEC outlets, System Link, and RS232/RJ45/Wi-Fi control.
fig. 01 · power conditioning

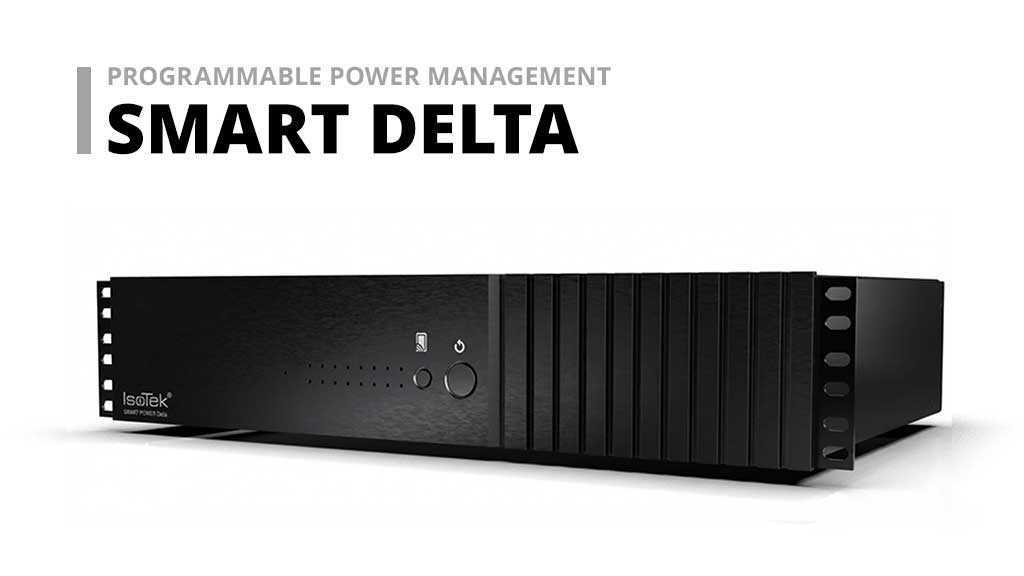

SMART Delta PDU
From Isotek
SMART Delta PDU is the 16-outlet network-controlled rack unit in IsoTek's SMART lineup. It has a 16A IEC C20 mains inlet, 3,680W total wattage at 230V, System Link, RS232, RJ45, and Wi-Fi control, and 54,000A surge protection.
Specifications

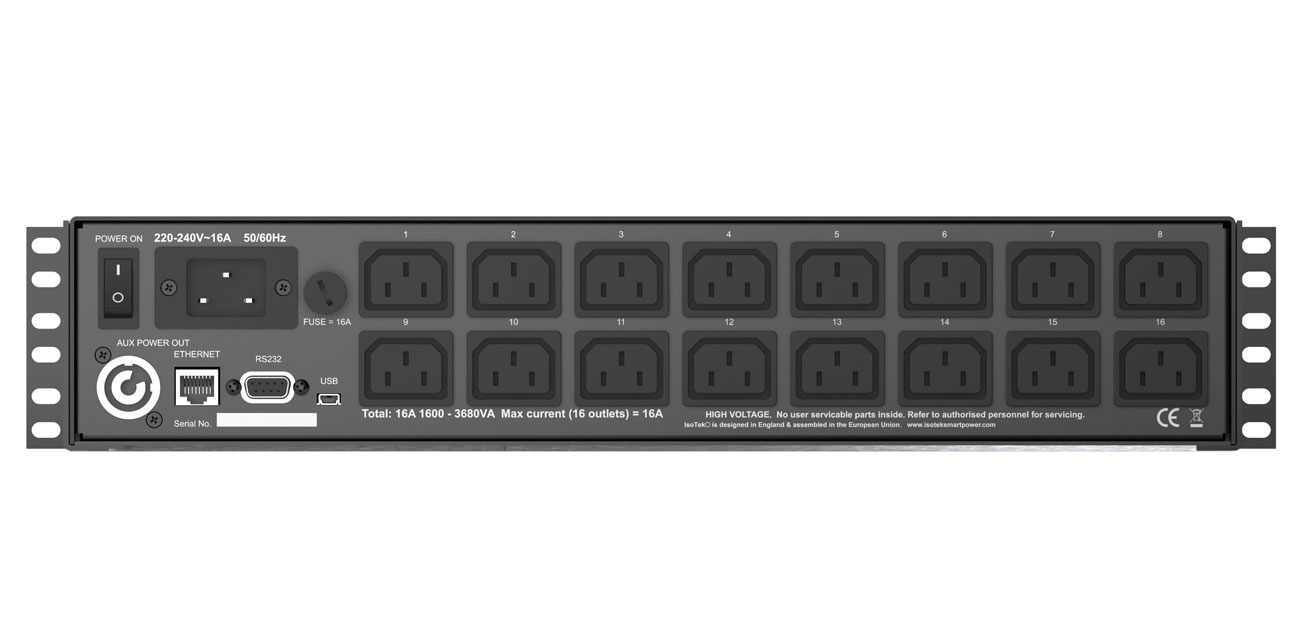

| Output sockets | 16 |
|---|---|
| Output socket types | C14 IEC |
| System Link | 1 |
| Mains inlet | 16A IEC 20 (20A North America) |
| Mains voltage | 100-240V / 50-60Hz |
| Maximum current | 16A (20A North America) |
| Total wattage | 3'680W (@230V) / 2'300W (@115V, North America) |
| Surge protection | 54'000A |
| RS232 control | 1 |
| Network control (RJ45) | 1 |
| WEB INTERFACE (GUI) | YES |
| DIMENSIONS (W x D x H) | 448 x 305 x 89mm |
| Weight | 8.3kg |
| Product type | network-controlled power distribution unit |
| Series | SMART |
