Isotek · Power Conditioning

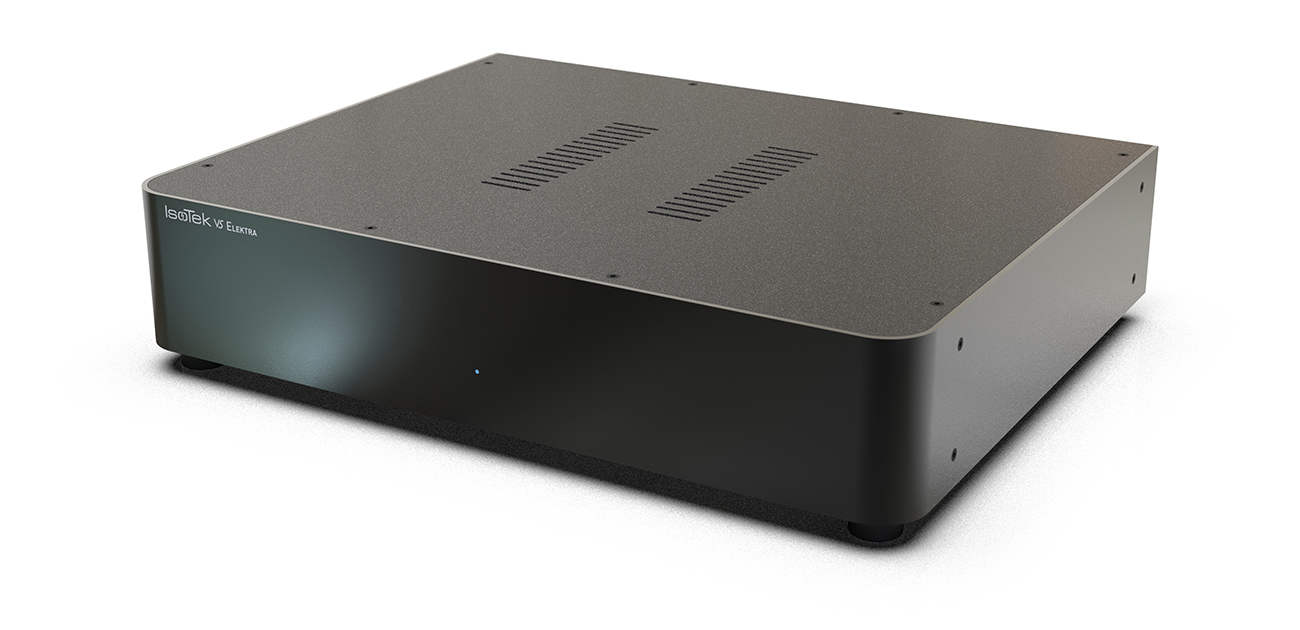

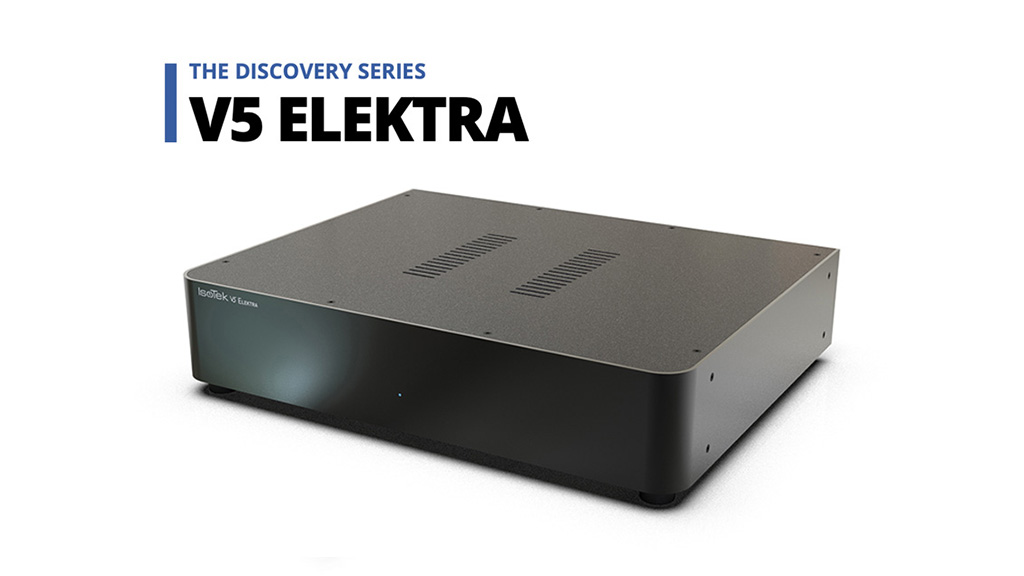

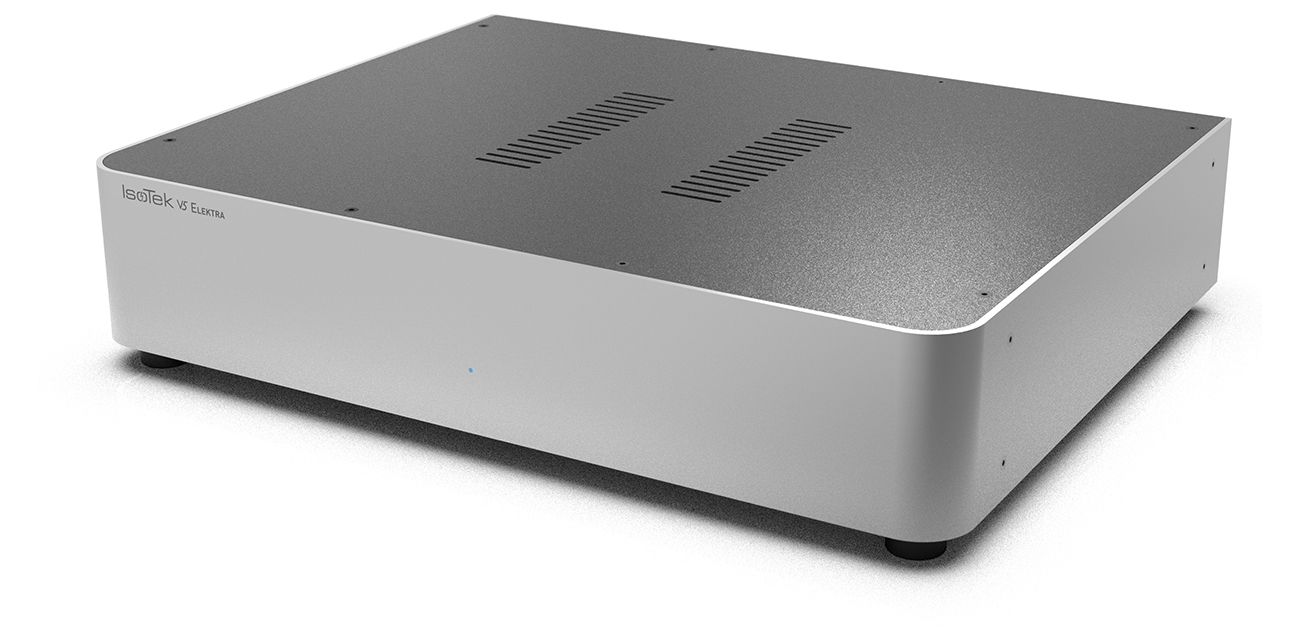

V5 Elektra
Six-way V5 mains power conditioner with separate medium-current and high-current outlet groups plus System Link.
fig. 01 · power conditioning
V5 Elektra
From Isotek
V5 Elektra has 6 outlets plus System Link, split into 4 medium-current outlets and 2 high-current outlets. It runs on 100-240V / 50-60Hz, with 67,500A surge protection and a 450 x 106 x 350mm chassis.
Specifications

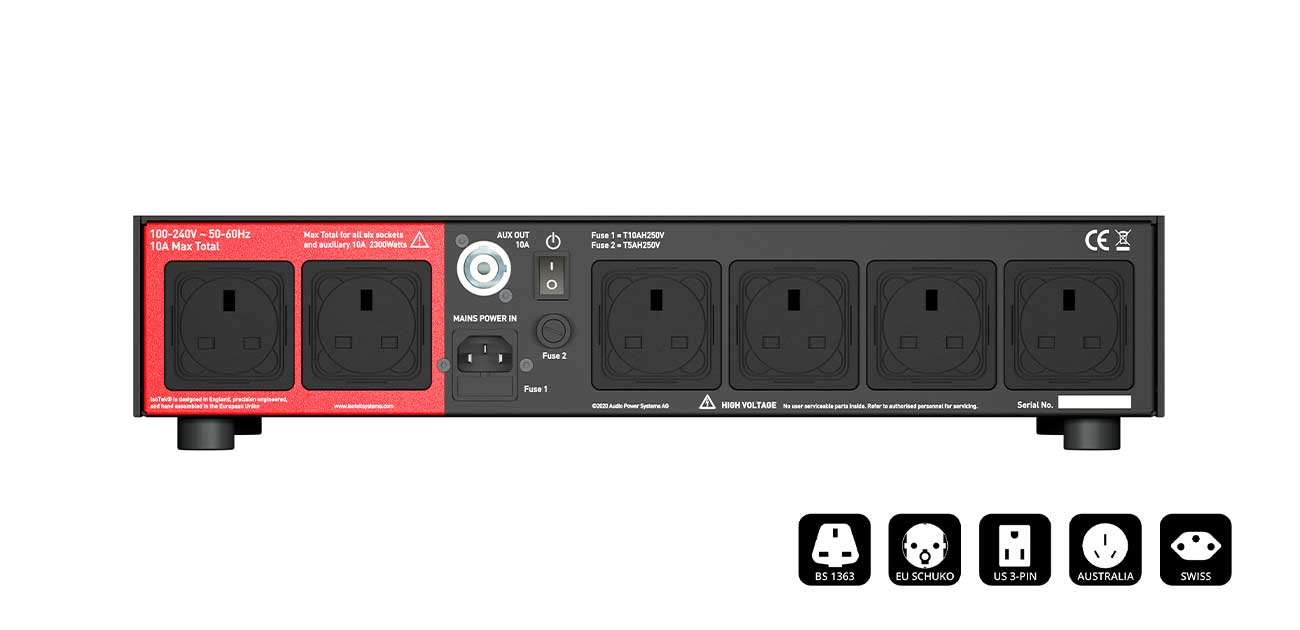

| Output sockets | 6 + System Link |
|---|---|
| Output socket types | UK, EU, US, AU & CH |
| Mains inlet | 10A IEC C14 |
| Mains voltage | 100-240V / 50-60Hz |
| Medium-current outlets - 230V | x4 (5A 1'150W total) |
| Medium-current outlets - 115V | x4 (5A 575W total) |
| High-current outlets - 230V | x2 (10A 2'300W total) |
| High-current outlets - 115V | x2 (10A 1'150W total) |
| System Link | x1 |
| Surge protection | 67'500A |
| Dimensions (W x H x D) | 450 x 106 x 350mm |
| Weight | 9,0kg |
| Product type | mains power conditioner |
| Series | V5 |
