Isotek · Power Conditioning

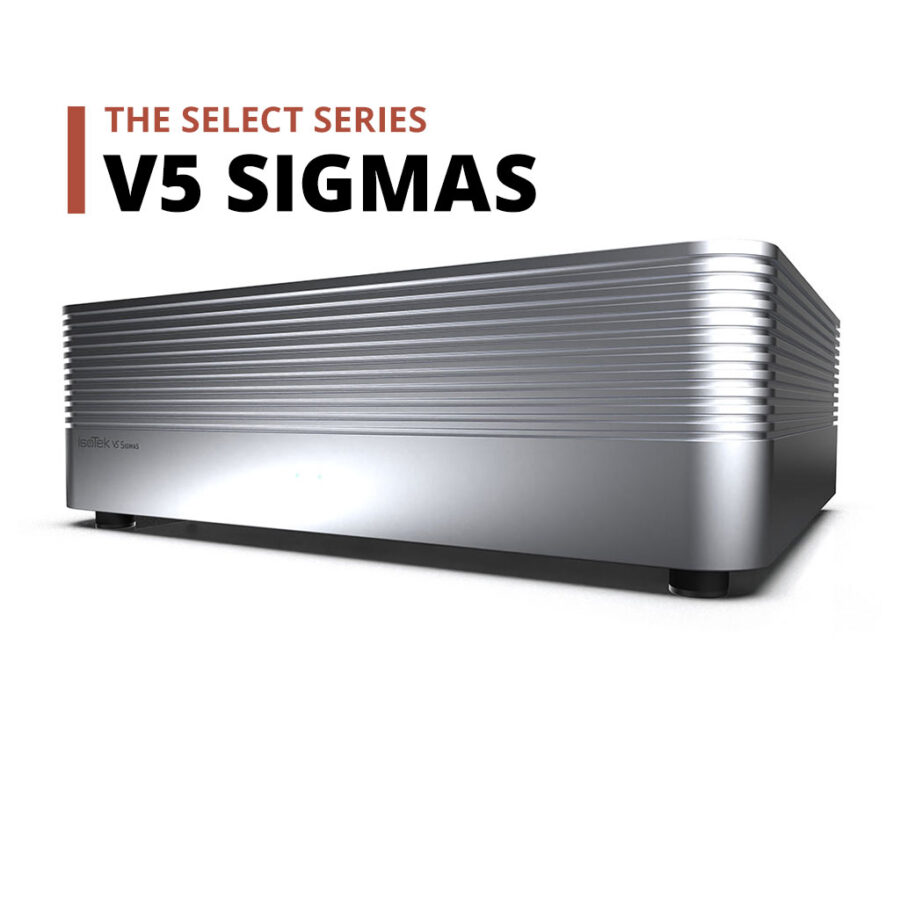

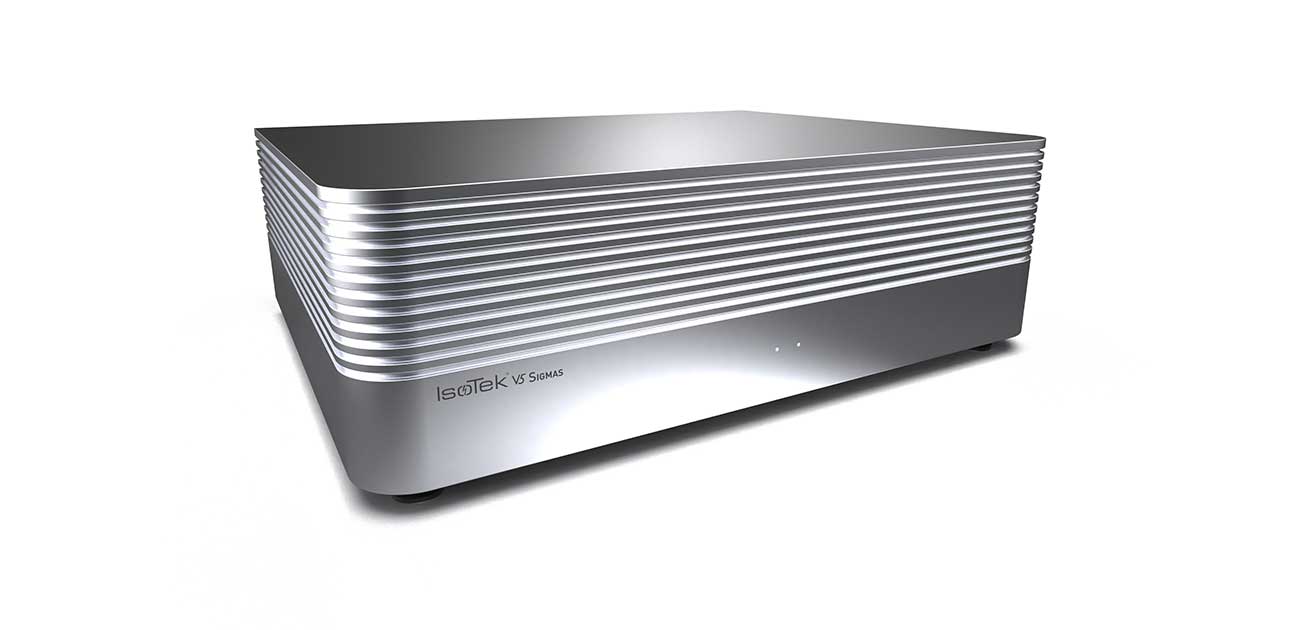

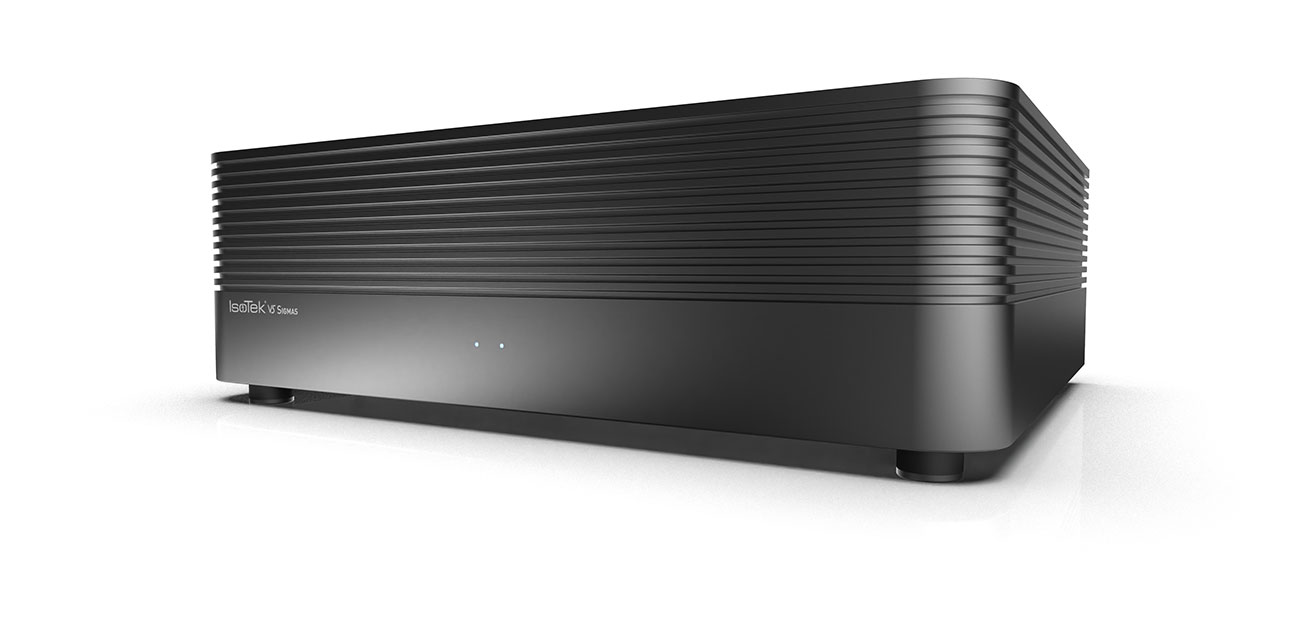

V5 Sigmas
Seven-way V5 mains power conditioner with 3 high-current outlets, 4 medium-current outlets, and System Link.
fig. 01 · power conditioning
V5 Sigmas
From Isotek

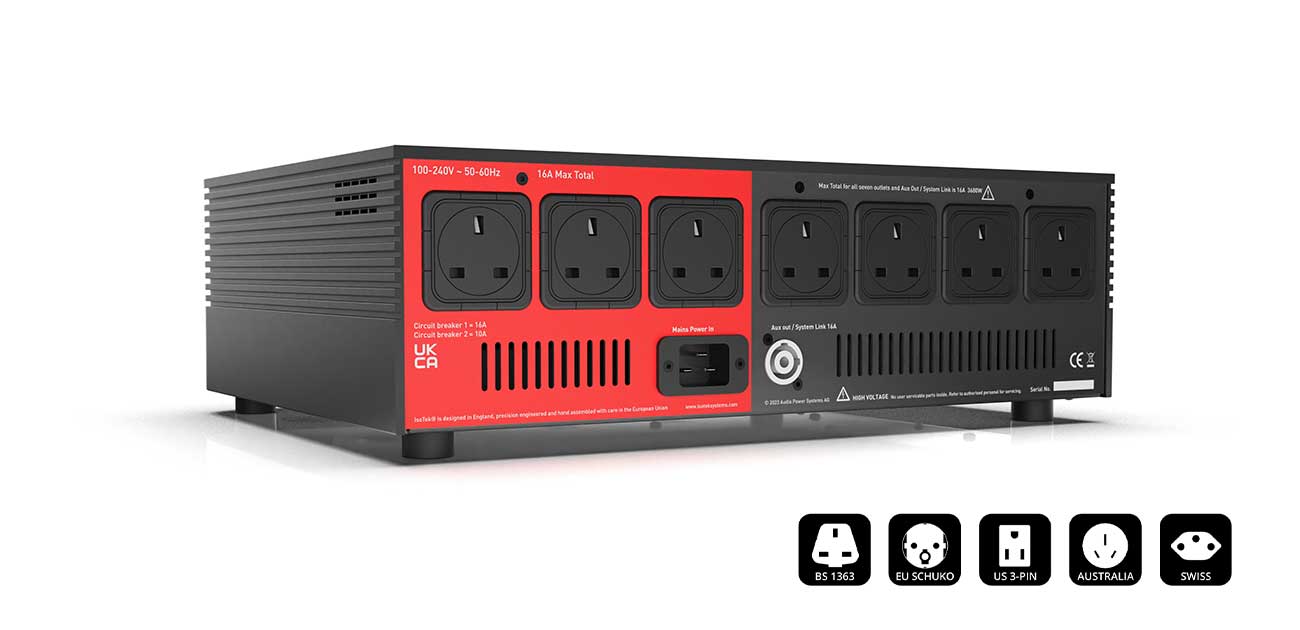

V5 Sigmas has 7 outlets for mixed source and high-current components: 3 high-current and 4 medium-current. It has a 16A IEC C20 inlet, 121,500A surge protection, and a 450 x 150 x 350mm chassis.
Specifications
| Output sockets | 7 |
|---|---|
| Output socket types | UK, EU, US, AU & CH |
| Mains inlet | 16A IEC C20 |
| Mains voltage | 100-240V / 50-60Hz |
| Medium-current outlets - 230V | x4 (10A 2'300W total) |
| Medium-current outlets - 115V | x4 (10A 1'150W total) |
| High-current outlets - 230V | x3 (16A 3'680W total) |
| High-current outlets - 115V | x3 (16A 1'840W total) |
| System Link | 1 |
| Surge protection | 121'500A |
| Dimensions (W x H x D) | 450 x 150 x 350mm |
| Weight | 15Kg |
| Product type | mains power conditioner |
| Series | V5 |
