J. Sikora · Tonearms

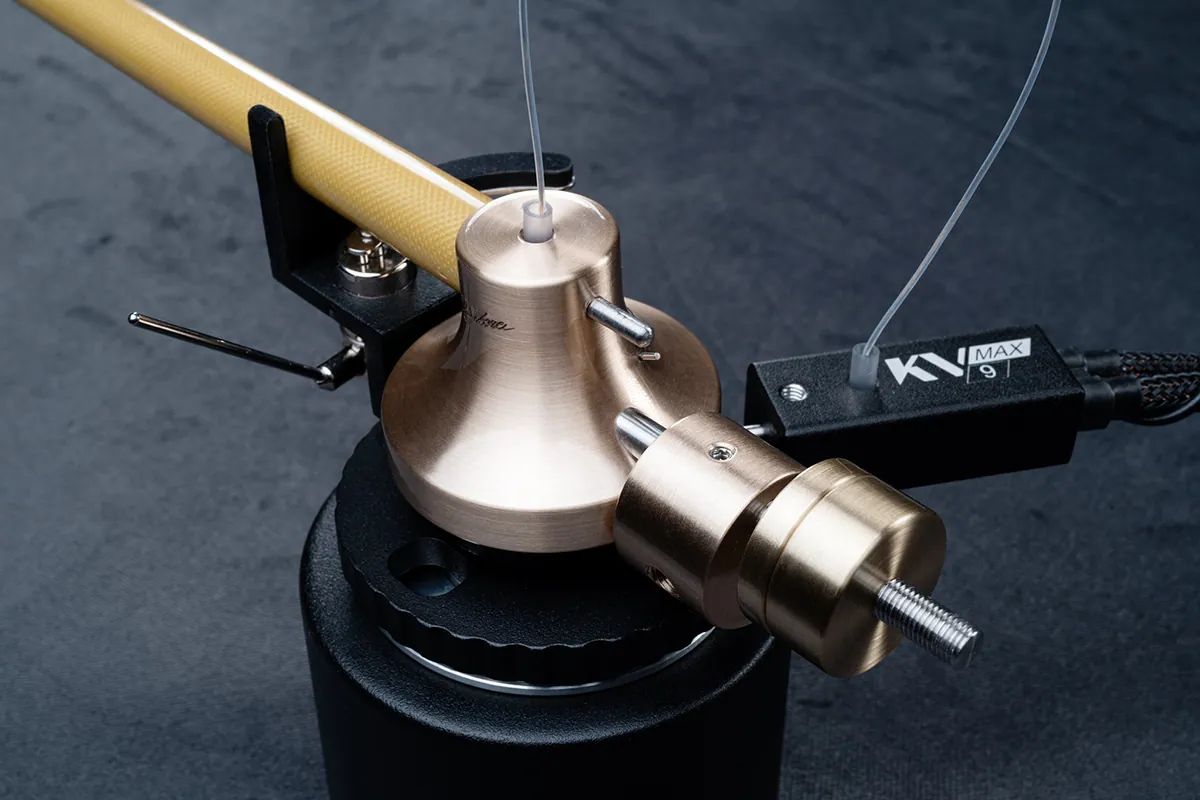

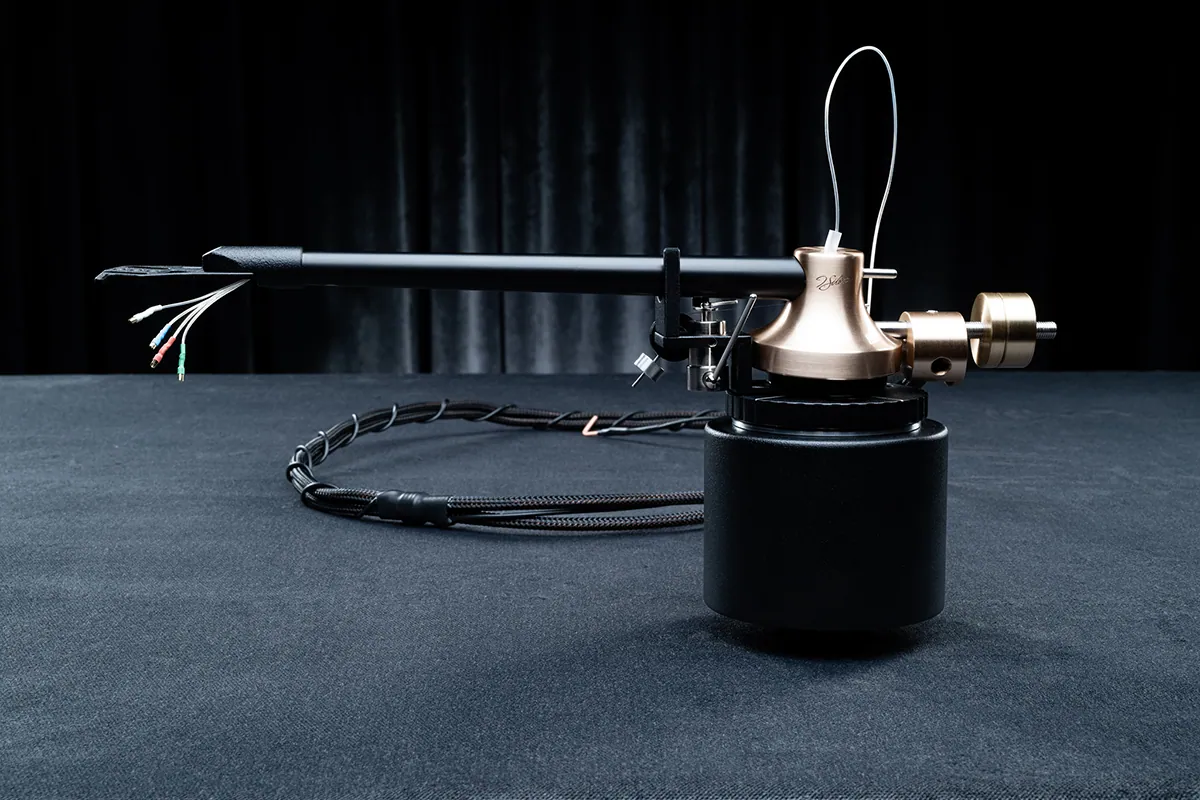

KV9 Max Tonearm
KV9 Max Tonearm is a KV Max Tonearm model with a unipivot bearing, conical Kevlar tube, oil damping, and 228.6 mm effective length.
fig. 01 · tonearms
KV9 Max Tonearm
From J. Sikora
KV9 Max Tonearm is the shorter KV Max row in the saved tonearm evidence. Its source specs list Kevlar, aluminium, bronze, brass, and stainless steel construction, VTA and azimuth adjustment, 245 g mass, 225 g VTA mass, 212 mm mounting distance, and 10.7 g effective mass. The wiring is listed as 24K gold-plated 6N OCC copper.
Specifications
| Product type | Tonearm |
|---|---|
| Series | KV Max Tonearm |
| Bearing type | unipivot |
| Material | Kevlar®, aluminium, bronze, brass, stainless steel |
| Oil damping | yes |
| Tube | conical (Kevlar®) |
| VTA adjustment | yes |
| Azimuth | yes |
| Mass | 245 g |
| VTA mass | 225 g |
| Effective lenght | 228,6 mm |
| Mounting distance | 212 mm |
| Effective mass | 10,7 g |
| Available colours | natural yellow / lacquered black mat |
| Wiring | 24K Gold plated 6N OCC Copper |
