J. Sikora · Tonearms

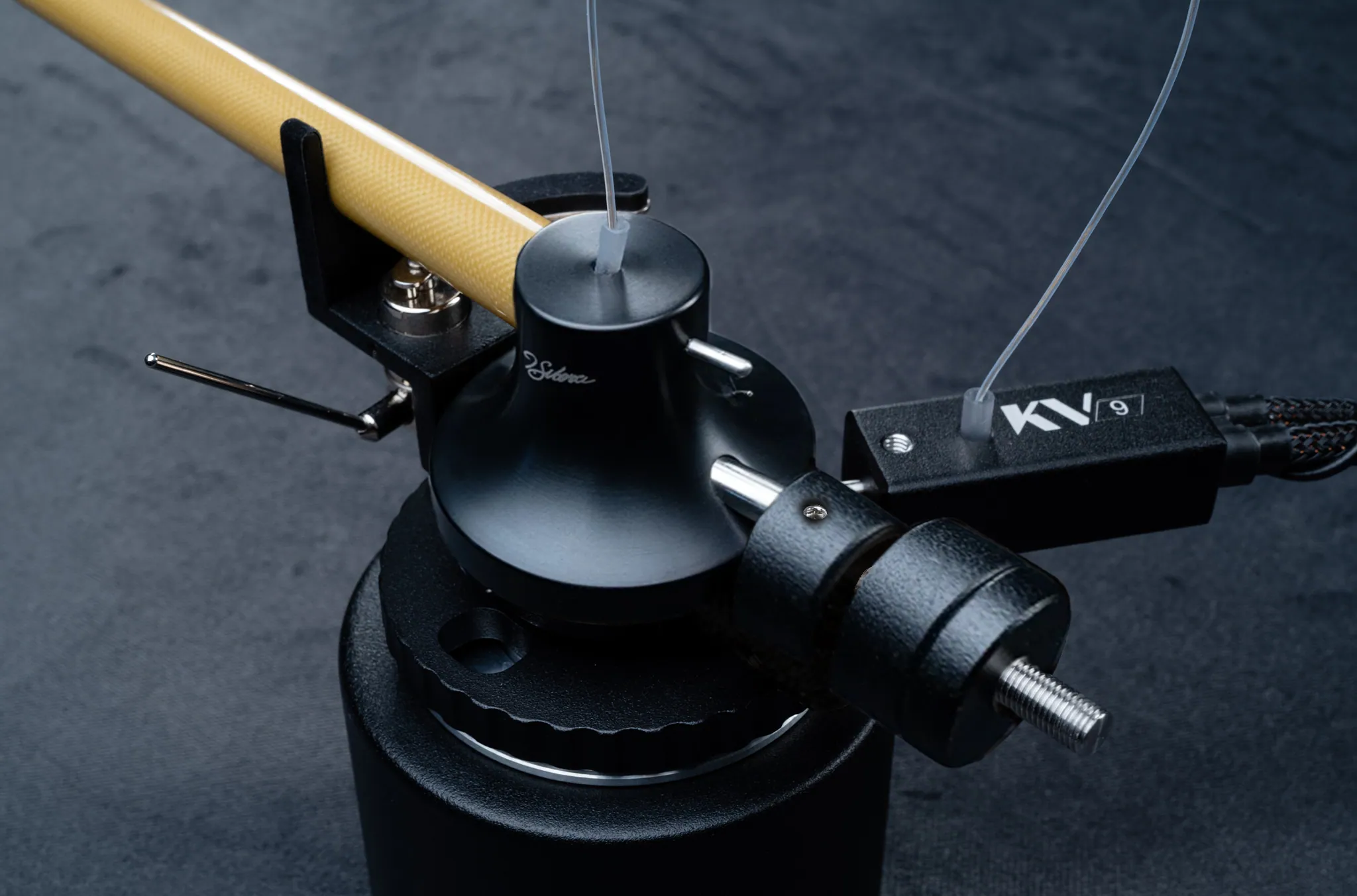

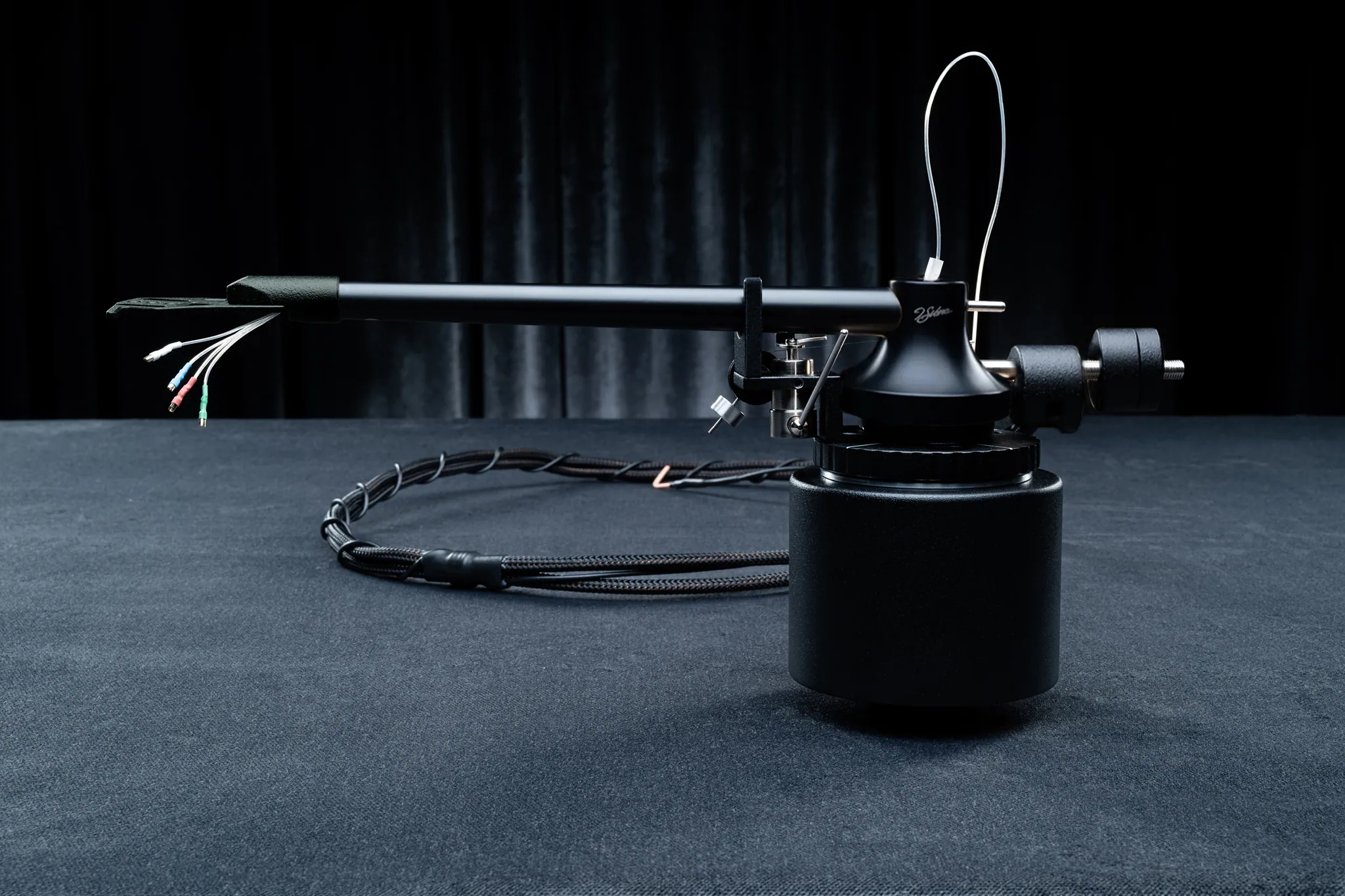

KV9 Tonearm
KV9 Tonearm is a 9-inch KV Tonearm model with a unipivot bearing, conical Kevlar tube, oil damping, and 228.6 mm effective length.
fig. 01 · tonearms
KV9 Tonearm
From J. Sikora
The KV9 Tonearm row is a KV Tonearm entry built from Kevlar, aluminium, bronze, brass, and stainless steel. The source specs list VTA adjustment, azimuth adjustment, oil damping, 160 g mass, 212 mm mounting distance, and 11.2 g effective mass. Its saved wiring spec is 24K gold-plated 6N OCC copper, with natural yellow / lacquered black mat colour notation.
Specifications
| Product type | Tonearm |
|---|---|
| Series | KV Tonearm |
| Bearing type | unipivot |
| Material | Kevlar®, aluminium, bronze, brass, stainless steel |
| Oil damping | yes |
| Tube | conical (Kevlar®) |
| VTA adjustment | yes |
| Azimuth | yes |
| Mass | 160 g |
| Effective lenght | 228,6 mm |
| Mounting distance | 212mm |
| Effective mass | 11,2 g |
| Available colours | natural yellow / lacquered black mat |
| Wiring | 24K Gold plated 6N OCC Copper |
