J. Sikora · Turntables
Reference

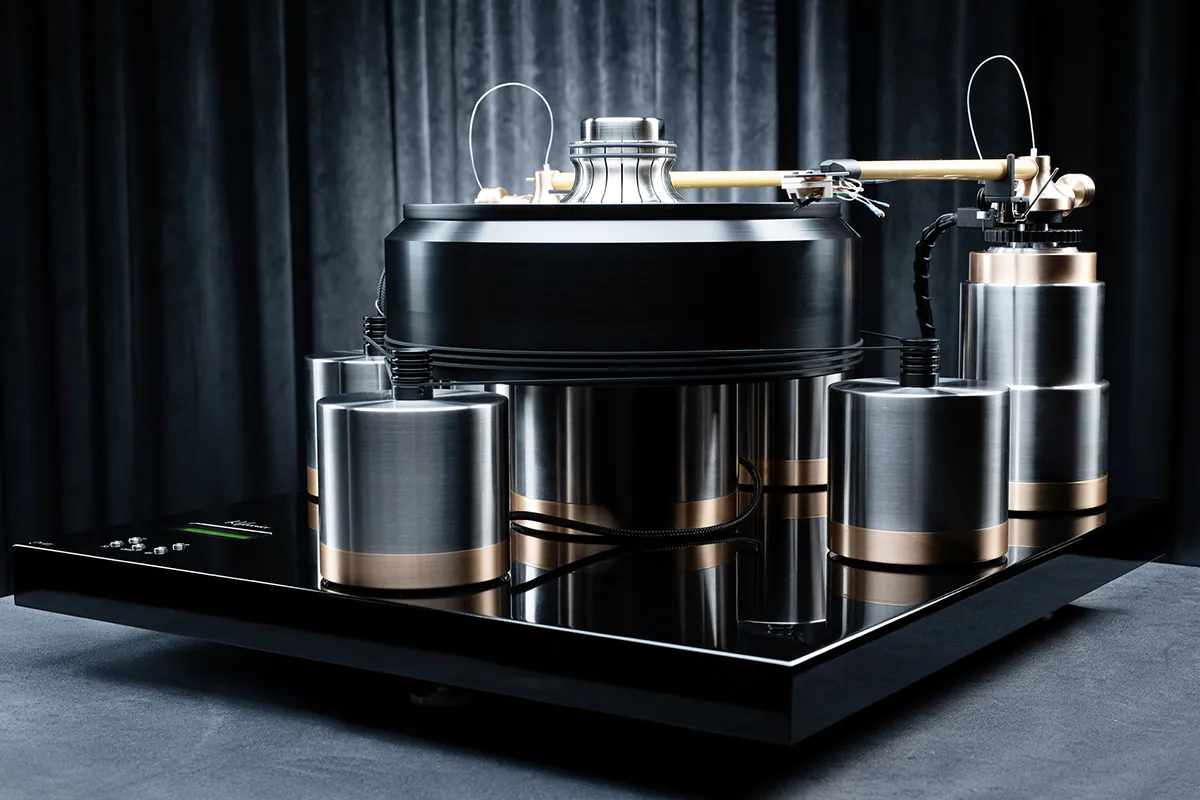

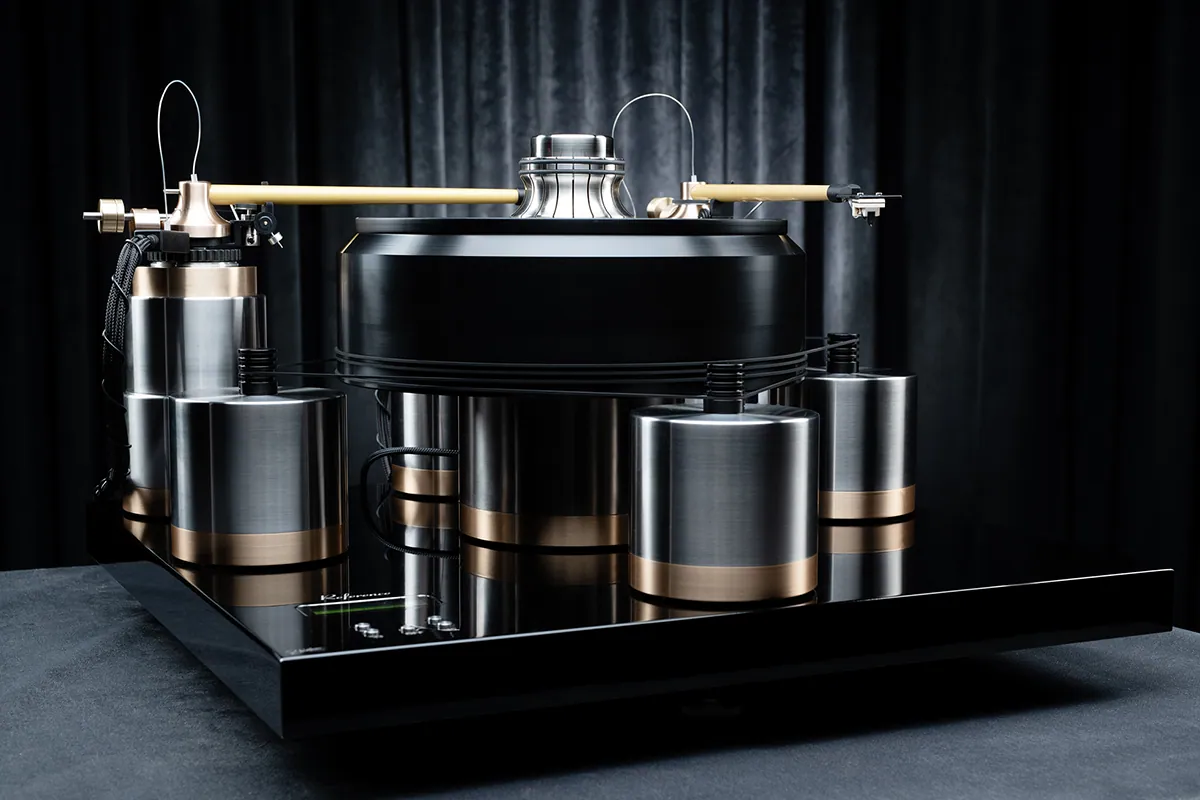

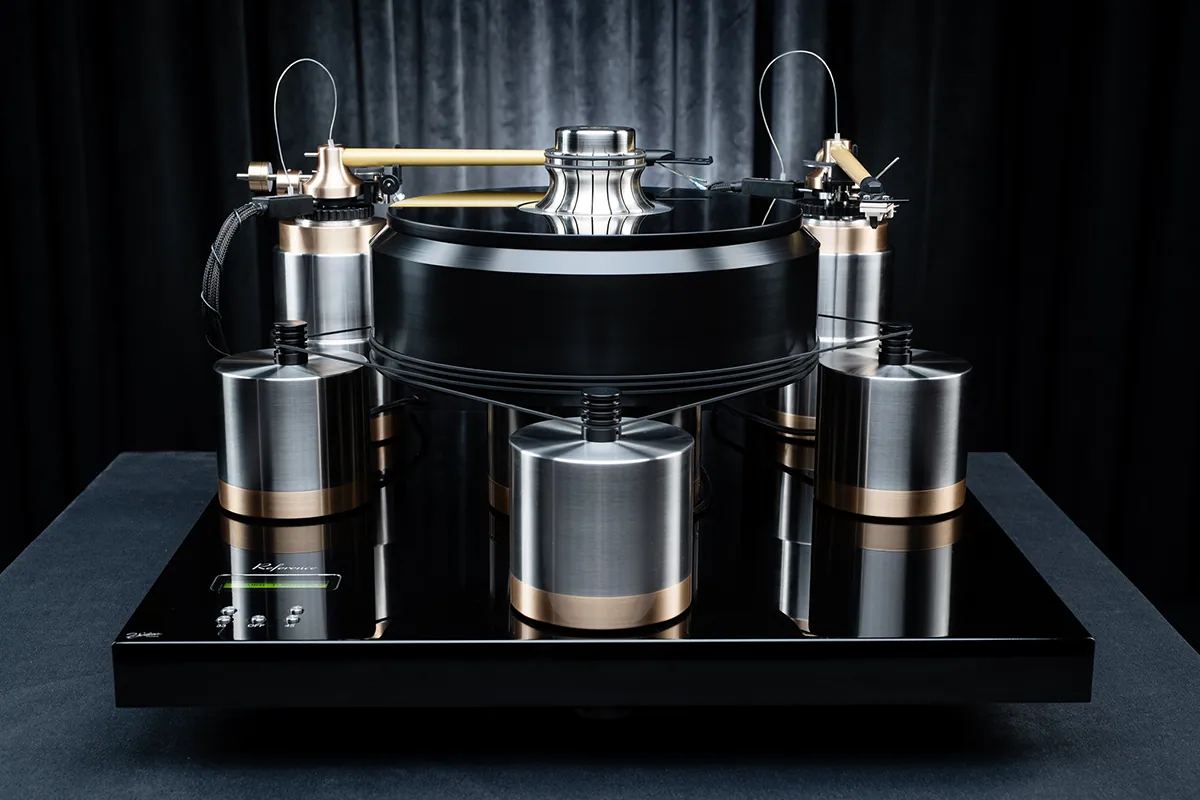

Reference is a 100 kg J. Sikora Reference Line turntable with 4 DC motors, an 18 kg platter, and 1 tonearm position plus optional expansion.
fig. 01 · turntables
Reference
From J. Sikora
Reference is the heaviest turntable row in the current J. Sikora tail, with source specs listing aluminium, copper, inox, bronze, and cast iron construction. It uses a Delrin-and-cast-iron platter, ceramic-ball inverted bearing, rubber belt drive, and 33 and 45 rpm speeds. The saved row lists 1 tonearm position plus 2 optional positions, with armboard, clamp, glass mat, and power supply included in the source data.
Specifications
| Product type | Turntable |
|---|---|
| Series | Reference Line |
| Total weight [kg] | 100 |
| Platter weight [kg] | 18 |
| Platter material | Delrin® and cast iron |
| Material | aluminium, copper, inox, bronze, cast iron |
| Bearing type | ceramic ball - inverted |
| Motor [pcs] | 4 DC |
| Belt | rubber |
| Rotation speed [rpm] | 33; 45 |
| No. of tonearms | 1 (+2 optional) |
| Armboard | yes |
| Clamp | yes |
| Glass mat | yes |
| Power supply | yes |
| Dimensions [mm] | 560 x 560 x 380 |
| Available colours | silver / black high gloss /black matt |
