Linn · Speakers
360
The 360 is Linn's 4-way floorstanding speaker with a Power DAC and Pistonik motor bass, running as a complete Exakt loudspeaker or as a passive model.
fig. 01 · speakers
360
7 photographs · 5 shown
From Linn
The 360 is a 4-way floorstanding speaker from Linn. It runs either as a complete Exakt loudspeaker, with the digital crossover and amplification built in, or as a passive design with active bass, paired with external amps and an Exaktbox.
Both versions share the same driver set: a 19mm thin-ply woven carbon dome tweeter, a 64mm thin-ply woven carbon dome midrange, a 190mm aluminium upper bass diaphragm, and two 220mm long-throw aluminium lower bass diaphragms. The Exakt version runs Class AB amplifiers with Adaptive Bias Control and a digital crossover. The passive version uses a three-way analogue passive crossover with active bass and separate amplification.
Room correction runs through Space Optimisation+ on the Exakt version, or through a Linn Network Music Player on the passive version. Cabinet volume is 60 litres, with a footprint of 411 mm wide, 1141 mm tall, and 484 mm deep on its stand, weighing 66.4 kg.
Finish options span the Glasgow Collection (Clyde Built, Single Malt, Linn Heritage), the Signature Collection (Triton), and the Classic Collection (Piano Black, Alpine White, Walnut), plus custom color matching. Trim comes in silver or black anodised.
Specifications
| 360 Exakt Integrated | 360 Passive with Active Bass |
|---|---|
| Fully integrated loudspeaker with built-in Exakt technology | Passive loudspeaker with active bass |
| Speaker Type | 4-way floorstanding 4-way floorstanding |
| Exakt | Yes Yes - with external amps and Exaktbox |
| Crossover | Exakt digital Three-way analogue passive with active bass |
| 360 Array | Class AB with Adaptive Bias Control Separate amplification |
| Bass System | Power DAC and Pistonik motor system Power DAC and Pistonik motor system |
| Room Correction | Space Optimisation+ Yes - with a Linn Network Music Player |
| Exakt Link | x2 X1 (for external Exakt operation) |
| Binding Post | n/a x3 pairs |
| XLR | n/a x1 |
| Tweeter | 19mm thin-ply woven carbon dome 19mm thin-ply woven carbon dome |
| Midrange | 64mm thin-ply woven carbon dome 64mm thin-ply woven carbon dome |

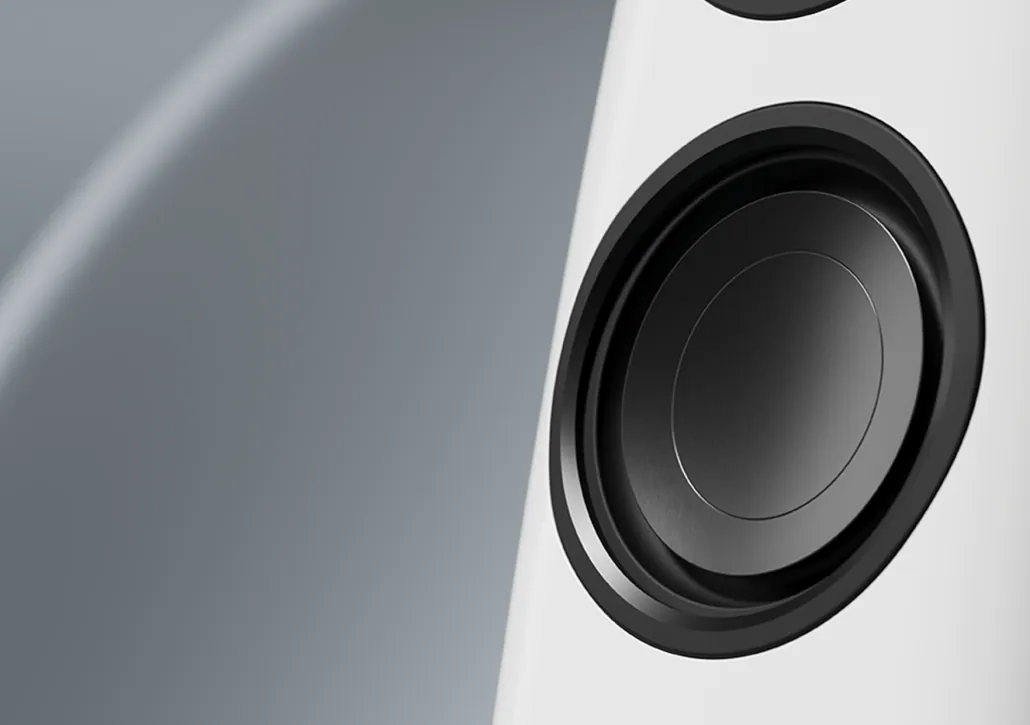

| Upper Bass | 190mm aluminium diaphragm 190mm aluminium diaphragm |
| Lower Bass | 220mm long-throw aluminium diaphragm x2 220mm long-throw aluminium diaphragm x2 |
| The Glasgow Collection | Clyde Built, Single Malt, Linn Heritage |
| The Signature Collection | Triton |
| The Classic Collection | Piano Black, Alpine White, Walnut |
| Custom | Yes - match any colour |
| Trim | Silver or Black anodised |
| Cabinet Volume | 60 litres 60 litres |
| Width (with stand) | 411 mm 411 mm |
| Height (with stand) | 1141 mm 1141 mm |
| Depth (with stand) | 484 mm 484 mm |
| Weight (with stand) | 66.4 kg 66.4 kg |
