Akurate Power Amps

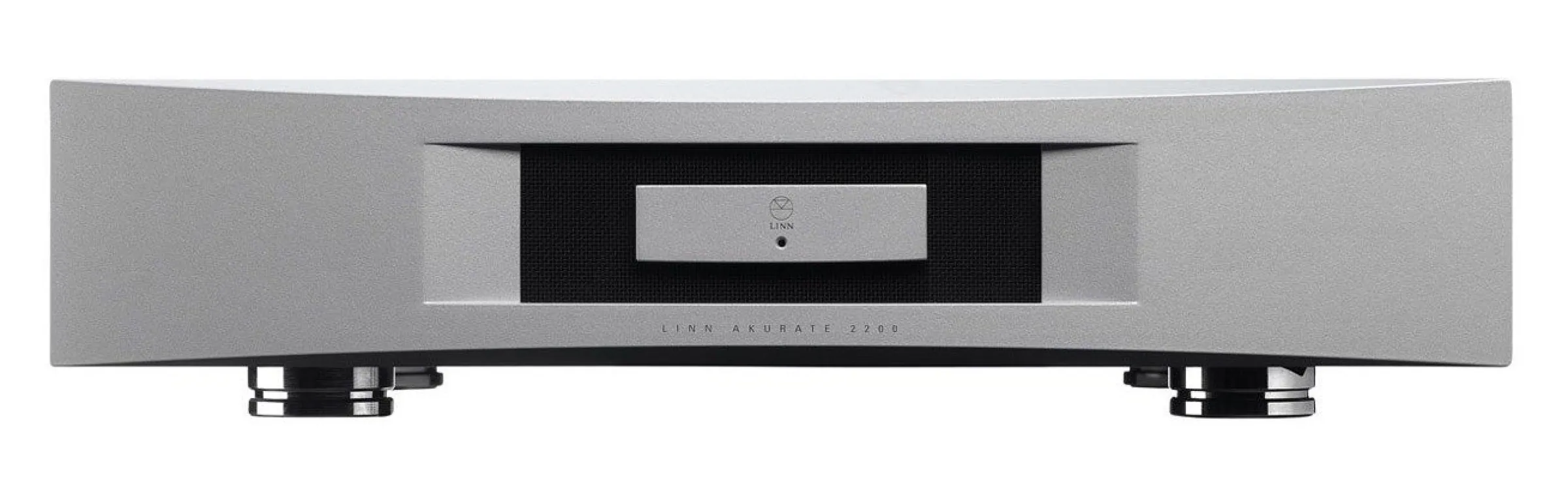

Akurate Power Amps are Linn's Chakra-based multichannel amplifiers in 2, 3, and 4-channel versions, each channel delivering 200W into 4Ω.
fig. 01 · power amplifiers
Akurate Power Amps
8 photographs · 5 shown
From Linn
Akurate Power Amps are a family of multichannel amplifiers from Linn, built around the same Linn Chakra amplification and Dynamik switch mode power supply across three sizes: the 2-channel Akurate 2200, the 3-channel Akurate 3200, and the 4-channel Akurate 4200.
Every channel on every model outputs 200W into 4Ω, or 111W into 8Ω, with a 300W max input rating. Balanced versions use XLR inputs and unbalanced versions use RCA phono, scaling from two to four connections to match the channel count.
Speaker connections run through banana or binding posts, four pairs on the 2200, six on the 3200, and eight on the 4200. All three share the same 380 mm by 380 mm footprint at 91 mm tall, weighing between 6.4 kg and 8.3 kg depending on channel count, finished in silver or black.
Specifications
| Akurate 2200 | Akurate 3200 Akurate 4200 |
|---|---|
| 2-channel power amp | 3-channel power amp 4-channel power amp |
| Number of Channels | Two Three Four |
| Max Output | 200 W into 4 Ω per channel 200 W into 4 Ω per channel 200 W into 4 Ω per channel |
| 111 W into 8 Ω per channel | 111 W into 8 Ω per channel 111 W into 8 Ω per channel |
| Max Input | 300 W 300 W 300 W |
| Amp Technology | Linn Chakra Linn Chakra Linn Chakra |
| Power Supply | Linn Dynamik Switch Mode Linn Dynamik Switch Mode Linn Dynamik Switch Mode |
| Finishes | Silver or Black Silver or Black Silver or Black |
| Inputs | Akurate 2200 Akurate 3200 Akurate 4200 |
| Balanced Model | Balanced XLR x2 Balanced XLR x3 Balanced XLR x4 |
| Unbalanced Model | RCA phono x2 RCA phono x3 RCA phono x4 |
| Line Outputs | Akurate 2200 Akurate 3200 Akurate 4200 |
| Speaker Outputs | Akurate 2200 Akurate 3200 Akurate 4200 |
| Banana / Binding Post | x4 x6 x8 |
| Dimensions | Akurate 2200 Akurate 3200 Akurate 4200 |
| Width | 380 mm 380 mm 380 mm |
| Height | 91 mm 91 mm 91 mm |
| Depth | 380 mm 380 mm 380 mm |
| Weight | 6.4 kg 8.2 kg 8.3 kg |
