Linn · Power Amplifiers
Klimax Solo 500
The Klimax Solo 500 is a monoblock delivering 500W into 4Ω with Adaptive Bias Control, machined from solid aluminium at just 88.5mm tall.
fig. 01 · power amplifiers
Klimax Solo 500
8 photographs · 5 shown
From Linn
The Klimax Solo 500 is a single-channel monoblock power amplifier, machined from solid aluminium into a low-profile enclosure. Like the Klimax Solo 800, it runs on Adaptive Bias Control and a Utopik power supply, one amp per speaker.
Output reaches 500W into 4Ω or 250W into 8Ω, with distortion as low as 0.0004% THD+N at 1kHz and an output impedance of 0.01Ω. A single RCA phono input handles the signal, with a passthrough RCA phono output for linking a second unit.

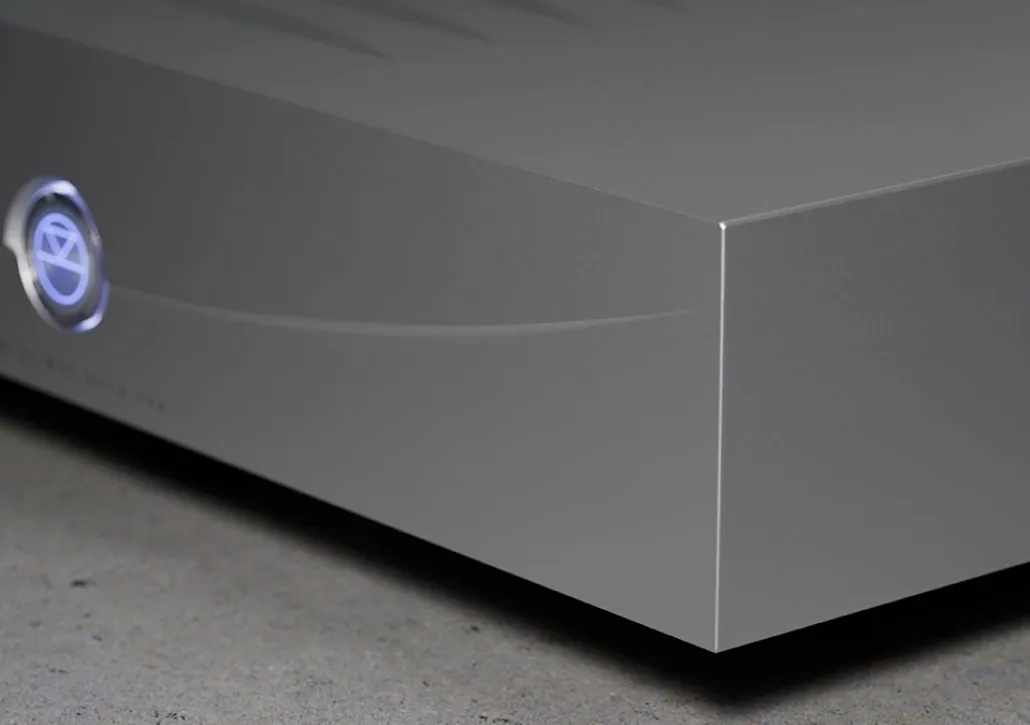

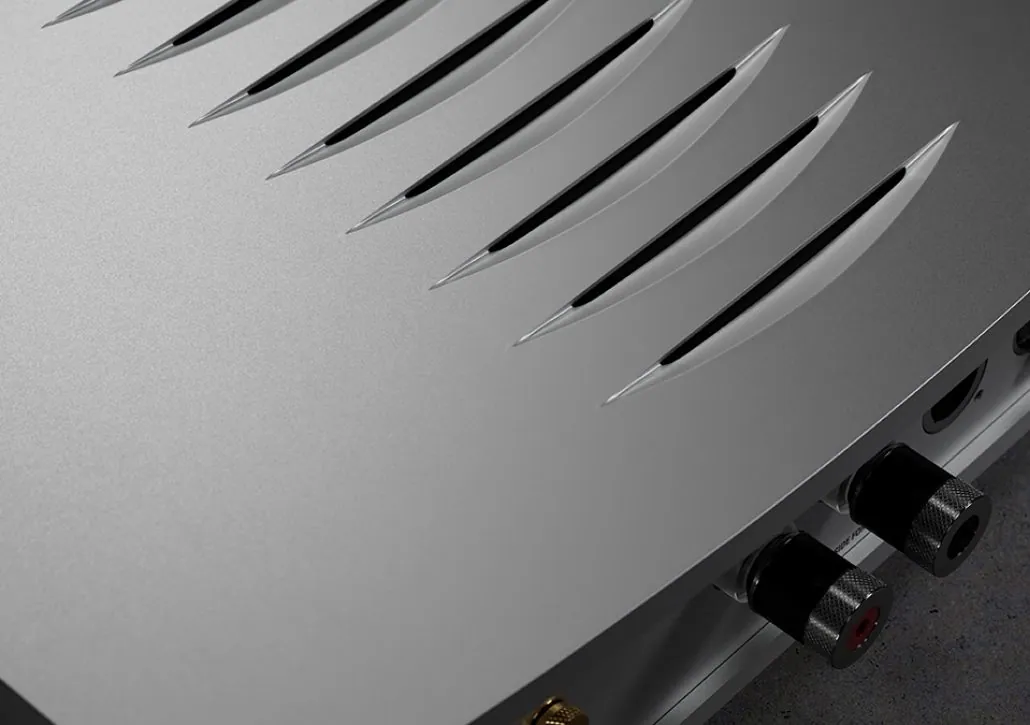

The chassis stands just 88.5 mm tall, at 350 mm wide and 364 mm deep, weighing 10.6 kg. Speaker outputs are binding-post terminals that accept banana or spade connectors, finished in silver or black anodised.
Specifications
| Number of Channels | One |
|---|---|
| Max Output | 500W into 4Ω |
| Max Input | 1 kW |
| Amp Technology | Adaptive Bias Control |
| Power Supply | Utopik |
| Inputs | RCA Phono x1 |
| Passthrough | RCA Phono x1 |
| Speaker Outputs | Binding-post / Banana / Spade x2 |
| Output Impedance | 0.01Ω at 1kHz |
| THD+N, 4 Ω | 0.0005% | 1kHz | 500W |
| THD+N, 8 Ω | 0.0004% | 1kHz | 250W |
| Finishes | Silver or Black anodised |
| Width | 350 mm |
| Height | 88.5 mm |
| Depth | 364 mm |
| Weight | 10.6 kg |
