Linn · Power Amplifiers
Klimax Solo 800
The Klimax Solo 800 is a monoblock power amplifier that delivers 800W into 4Ω using Linn's Adaptive Bias Control technology. It runs one channel per amp, so a stereo system needs a matched pair.
fig. 01 · power amplifiers

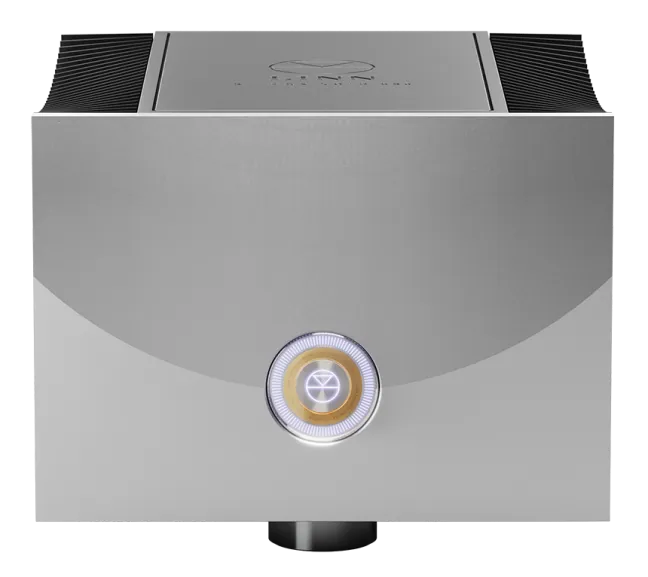

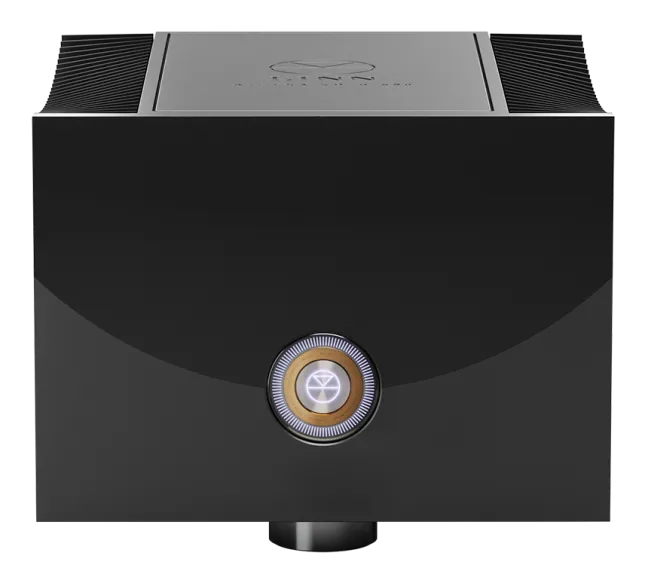

Klimax Solo 800
8 photographs · 5 shown
From Linn
The Klimax Solo 800 is a single-channel monoblock power amplifier. Adaptive Bias Control shapes how the output stage handles the signal, and a 2kW Utopik power supply feeds it.
Output runs to 800W into 4Ω, 400W into 8Ω, or 1.2kW into 2Ω, with distortion figures as low as 0.0004% THD+N at 1kHz. Output impedance is 0.01Ω at 1kHz.
It takes a single RCA phono input with a matching passthrough for daisy-chaining a second unit. Speaker outputs are binding-post terminals that accept banana or spade connectors. The chassis measures 350 mm wide, 268 mm high, and 412 mm deep, weighing 27 kg, in silver or black anodised finish.
Specifications
| Number of Channels | One |
|---|---|
| Max Output | 800W into 4Ω |
| Max Input | 2 kW |
| Amp Technology | Adaptive Bias Control |
| Power Supply | Utopik (2 kW Max) |
| Inputs | RCA Phono x1 |
| Passthrough | RCA Phono x1 |
| Speaker Outputs | Binding-post/Banana/Spade x2 |
| Output Impedance | 0.01Ω at 1kHz |
| THD+N, 4 Ω | 0.0005% | 1kHz | 800 W |
| THD+N, 8 Ω | 0.0004% | 1kHz | 400 W |
| THD+N, 2 Ω | 0.0006% | 1kHz | 1.2 kW |
| Finishes | Silver or Black anodised |
| Width | 350 mm |
| Height | 268 mm |
| Depth | 412 mm |
| Weight | 27 kg |
