Klimax Twin
The Klimax Twin is a two-channel stereo amplifier delivering 200W per channel into 4Ω, built on Chakra amplification in a 60mm-tall chassis.
fig. 01 · power amplifiers

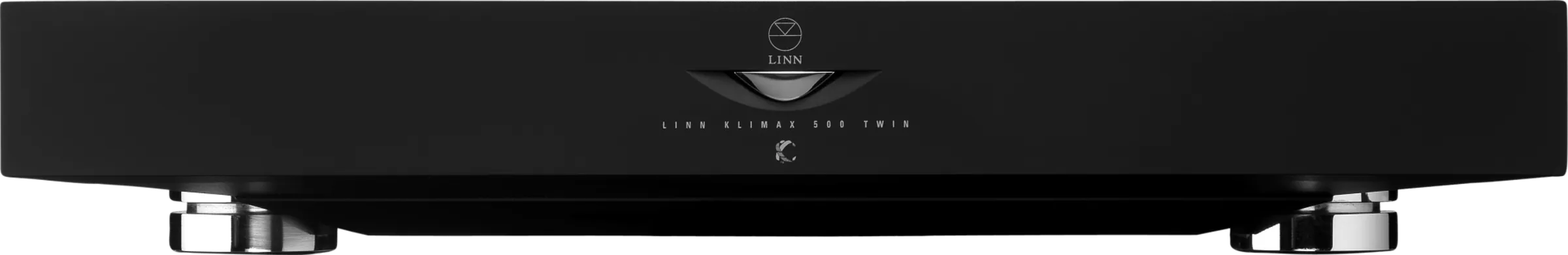

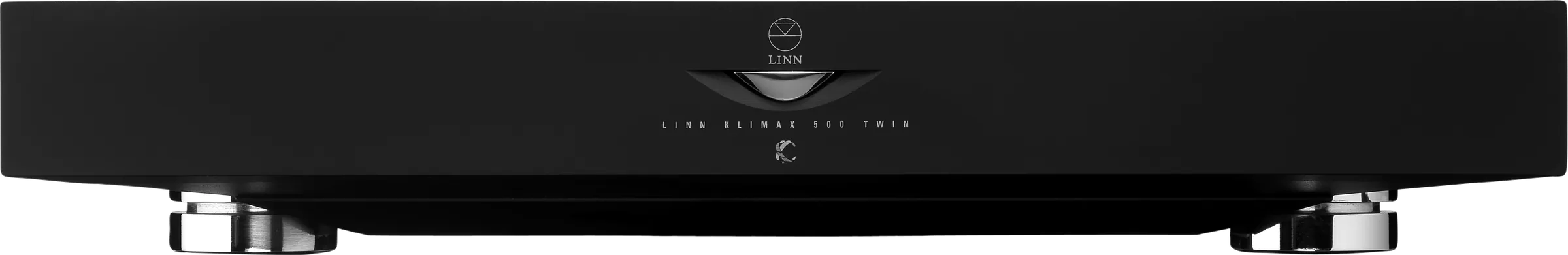

Klimax Twin
8 photographs · 5 shown
From Linn
The Klimax Twin is a two-channel stereo power amplifier, running Linn's Chakra amplification technology from a machined-from-solid enclosure. A Dynamik switch mode power supply drives it.
Each channel outputs 200W into 4Ω, with a 1000W maximum input rating. Two WBT RCA phono inputs feed the amp, and it connects to speakers through four WBT banana or binding post terminals.
The chassis is 350 mm wide, 355 mm deep, and just 60 mm tall, weighing 9 kg. It comes finished in silver or black anodised.
Specifications
| Number of Channels | Two |
|---|---|
| Max Output | 200 W into 4 Ω |
| Max Input | 1000 W |
| Amp Technology | Linn Chakra |
| Power Supply | Linn Dynamik Switch Mode |
| Inputs | RCA phono (WBT) x2 |
| Passthrough | None |
| Speaker Outputs | Banana/Binding posts (WBT) x4 |
| Finishes | Silver or Black anodised |
| Width | 350 mm |
| Height | 60 mm |
| Depth | 355 mm |
| Weight | 9 kg |
