BLUE HEAVEN 3 DIGITAL INTERCONNECT
75 Ohm digital interconnect with Micro Mono-Filament construction.
fig. 01 · digital cables
BLUE HEAVEN 3 DIGITAL INTERCONNECT
From Nordost

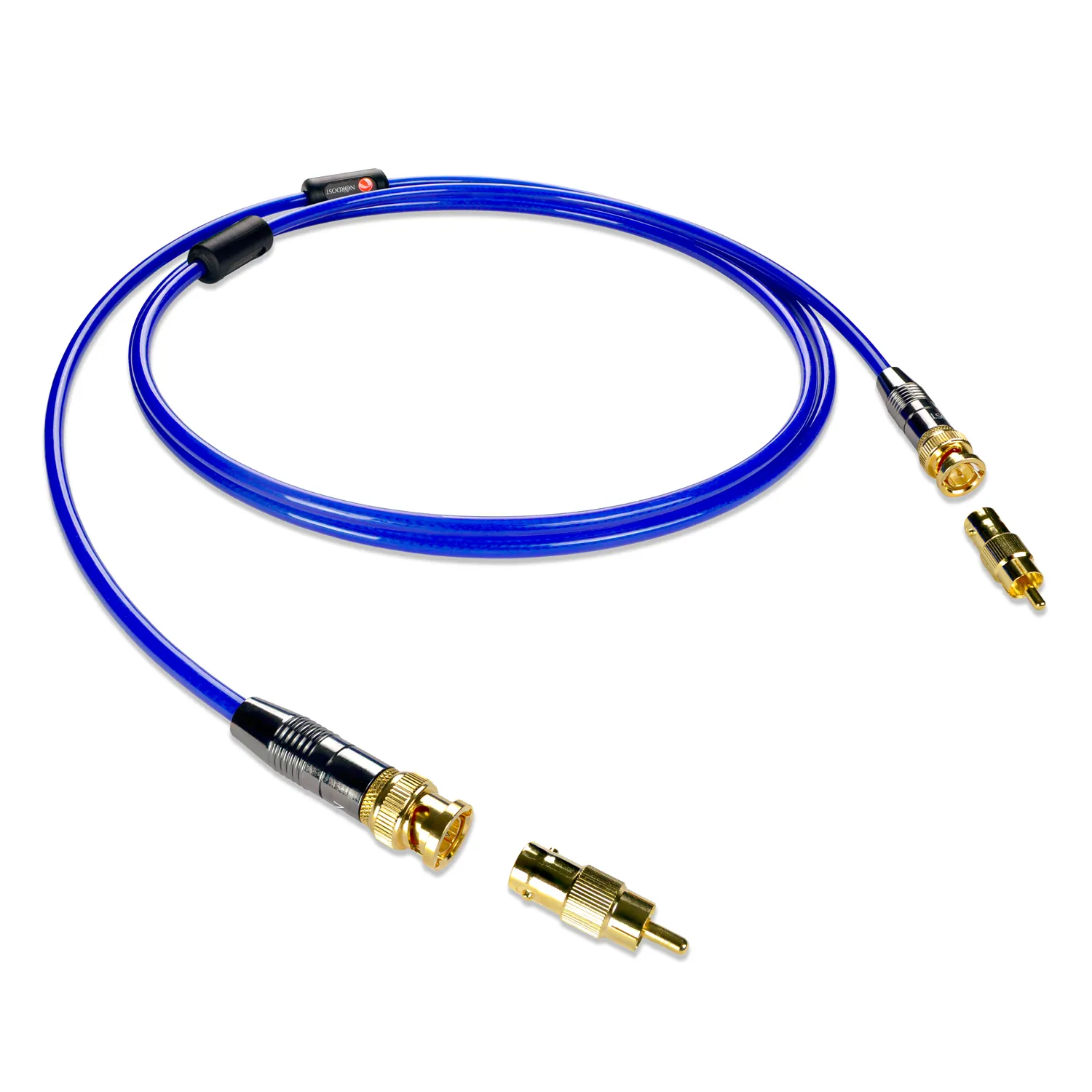

Blue Heaven 3 Digital Interconnect is a 75 Ohm co-axial Nordost cable for S/PDIF digital connections. It uses a 1 x 24 AWG silver-plated solid-core OFC conductor, FEP insulation, Micro Mono-Filament construction, 95% shield coverage, 16pF/ft capacitance, and 85% velocity of propagation. Listed termination options include true 75 Ohm BNC, 3.5mm mono mini, and included BNC-to-RCA adapters.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned spacing, Micro Mono-Filament, co-axial design |
| Conductors | 1 x 24 AWG |
| Material | Silver-plated 99.9999% solid core OFC |
| Capacitance | 16pF/ft |
| Impedance | 75 Ohm |
| Overall Shield Coverage | 95% |
| Velocity of Propagation | 85% |
| Termination | Gold-plated true 75 Ohm BNC to Gold-plated true 75 Ohm BNC or Gold-plated 3.5mm mono mini (Gold-plated BNC to RCA adapters included) |
