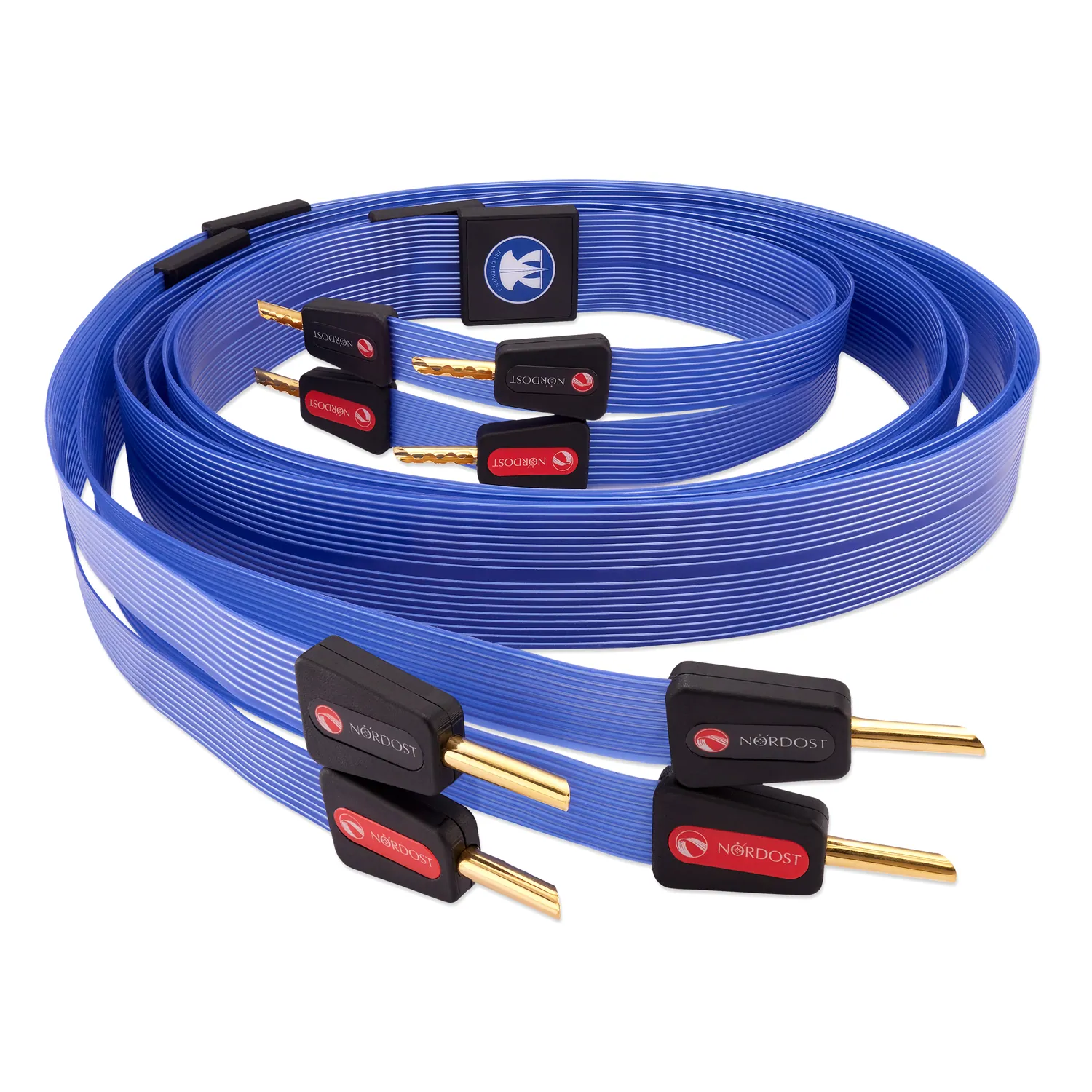

BLUE HEAVEN 3 SPEAKER CABLES
Flat speaker cable with 18 x 24 AWG silver-plated OFC conductors.
fig. 01 · speaker cables
BLUE HEAVEN 3 SPEAKER CABLES
From Nordost
Blue Heaven 3 Speaker Cables are Nordost Leif-series loudspeaker cables with flat geometry and mechanically tuned spacing. Each cable uses 18 x 24 AWG silver-plated 99.9999% solid-core OFC conductors with FEP insulation. Standard termination is gold-plated Z-plug banana or gold-plated spade, with a larger spade option available.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned spacing |
| Conductors | 18 x 24 AWG |
| Material | Silver-plated 99.9999% solid core OFC |
| Capacitance | 22.9 pF/m (7.0 pF/ft) |
| Inductance | 0.60 μH/m (0.18 μH/ft) |
| Velocity of Propagation | 90% |
| Termination | Gold-plated Z-plug Banana or Gold-plated Spade (6.5mm [1/4in] internal, 12mm external) standard. Large Gold-plated Spade also available (8.5mm internal, 15mm external). |
| Conductor count | 18 |
| Conductor gauge | 24 AWG |
| Conductor material | silver-plated solid-core OFC |
| Dielectric / insulation | FEP extrusion |
| Connectors / termination | gold-plated z-plug banana or spade connectors |
