BLUE HEAVEN ANALOG INTERCONNECTS
Analog interconnect with 4 x 24 AWG silver-plated OFC conductors.
fig. 01 · interconnects
BLUE HEAVEN ANALOG INTERCONNECTS
From Nordost
Blue Heaven Analog Interconnects are fully shielded Nordost cables for balanced or single-ended line-level connections. They use 4 x 24 AWG silver-plated solid-core OFC conductors, FEP insulation, mechanically tuned lay, and 95% shield coverage. Listed termination options are gold-plated RCA or XLR.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay |
| Conductors | 4 x 24 AWG |
| Material | Silver-plated 99.99999% solid core OFC |
| Capacitance | 45.0pF/ft |
| Inductance | 0.046μH/ft |
| Overall Shield Coverage | 95% |
| Velocity of Propagation | 80% |

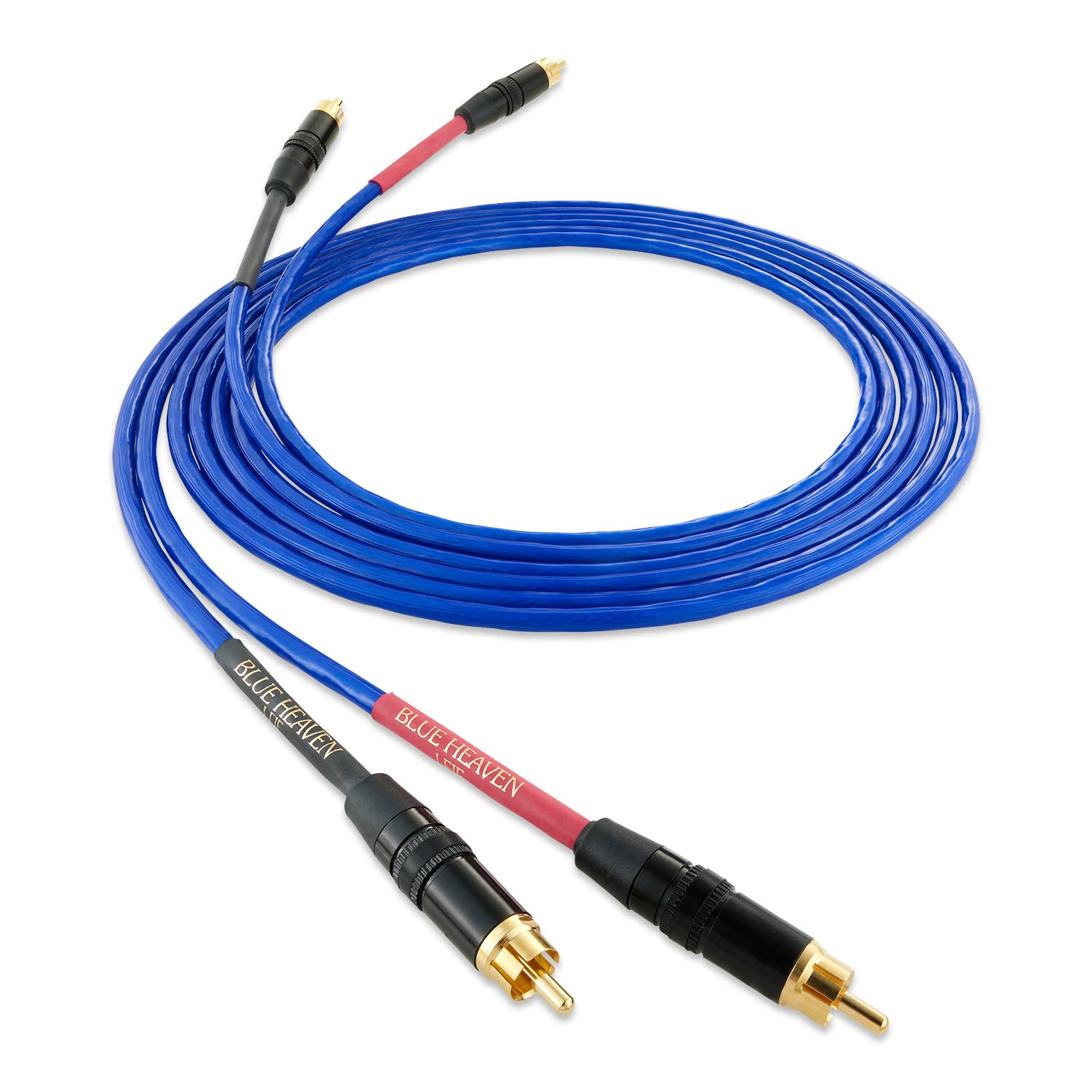

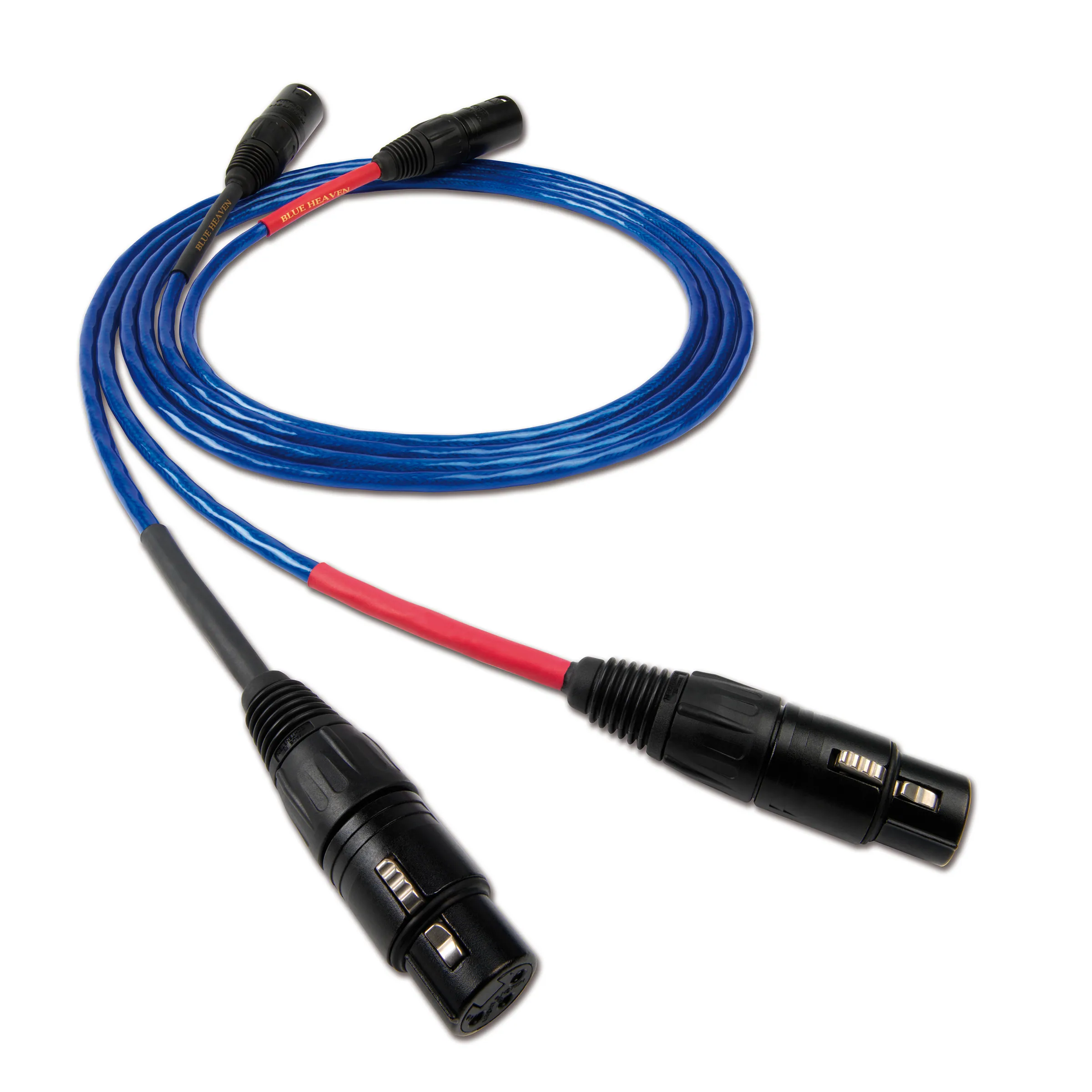

| Termination | Gold-plated RCA or XLR |
| Conductor count | 4 |
| Conductor gauge | 24 AWG |
| Conductor material | silver-plated solid-core 99.9999% OFC |
