Nordost · Cables

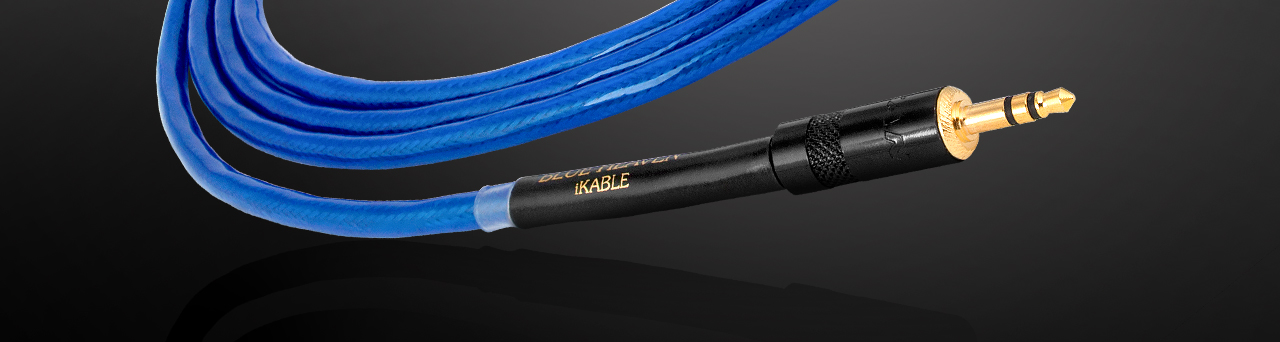

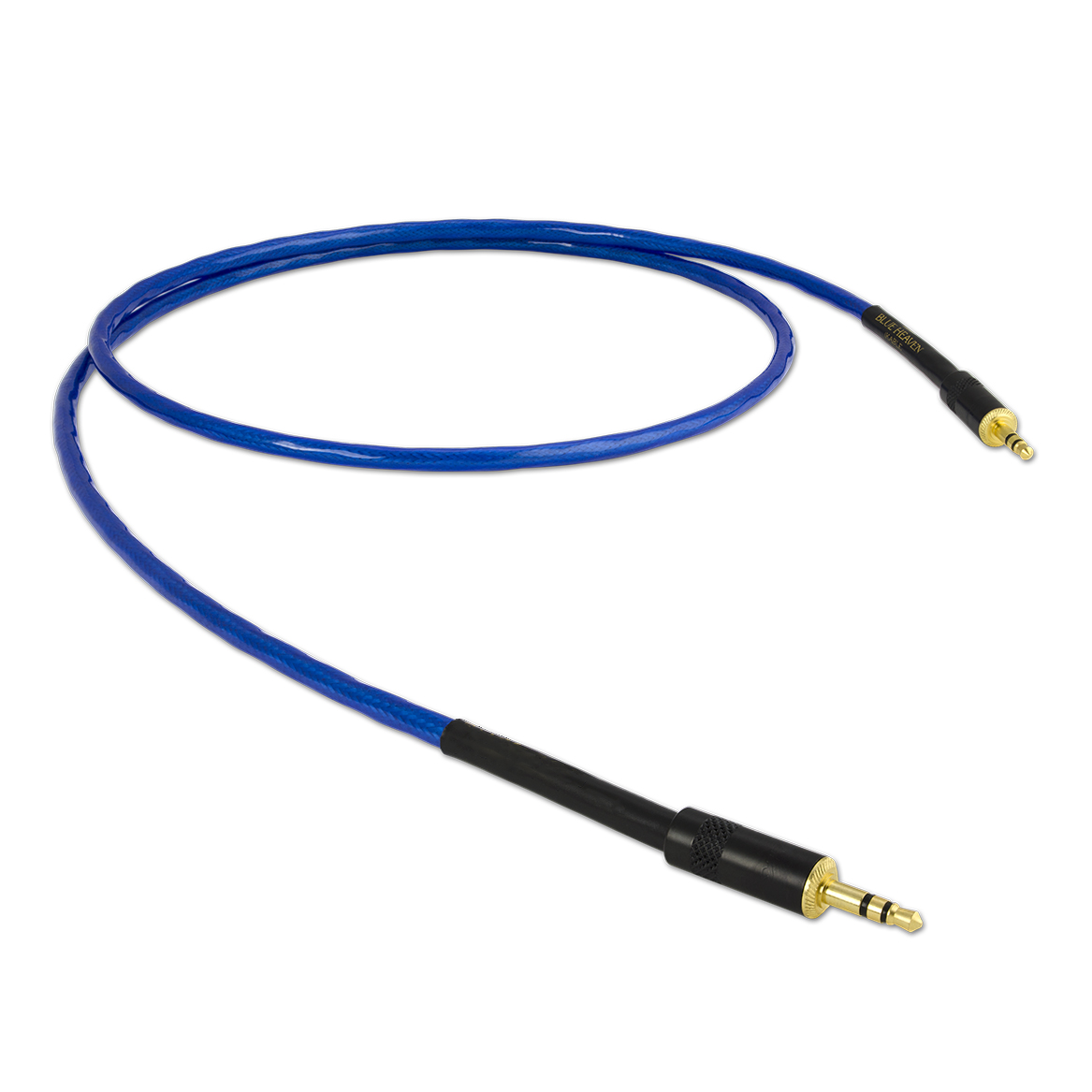

BLUE HEAVEN iKABLE
Portable-audio cable with 3.5mm, RCA, or XLR termination options.
fig. 01 · cables
BLUE HEAVEN iKABLE
From Nordost
Blue Heaven iKable connects portable audio devices to hi-fi systems. It uses 4 x 24 AWG silver-plated 99.9999% solid-core OFC conductors, FEP insulation, mechanically tuned lay, and 95% shield coverage. Termination options include 3.5mm stereo mini to 3.5mm stereo mini, dual XLR, or dual RCA connectors.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay |
| Conductors | 4 x 24 AWG |
| Material | Silver-plated 99.9999% solid core OFC |
| Capacitance | 45.0 pF/ft |
| Inductance | 0.046 μH/ft |
| Overall Shield Coverage | 95% |
| Velocity of Propagation | 80% |
| Termination | Gold-plated connectors available in 3.5mm stereo mini to 3.5mm stereo mini, (2x) XLR or (2x) RCA |
