BLUE HEAVEN POWER CORD

IEC-C15 power cord with 3 x 16 AWG OFC conductors.

fig. 01 · power cables

BLUE HEAVEN POWER CORD

Nordost BLUE HEAVEN POWER CORD

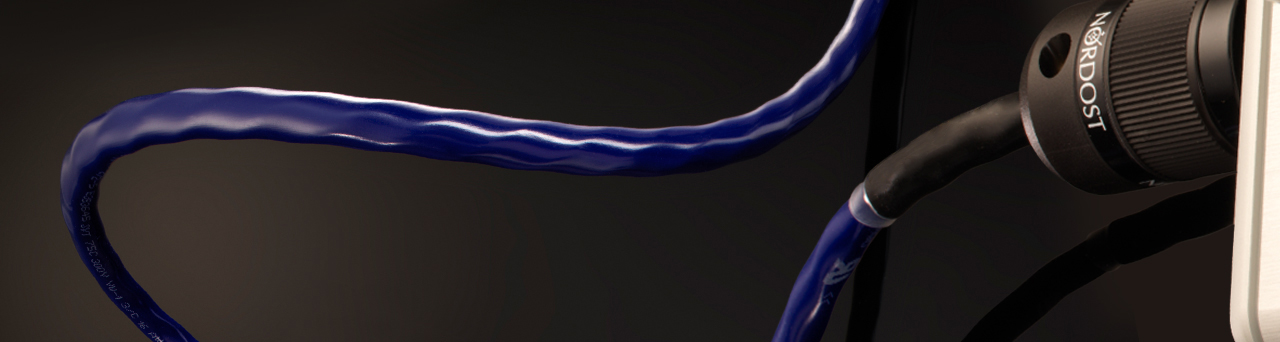

fig. 01 · BLUE HEAVEN POWER CORDphotograph · Nordost

From Nordost

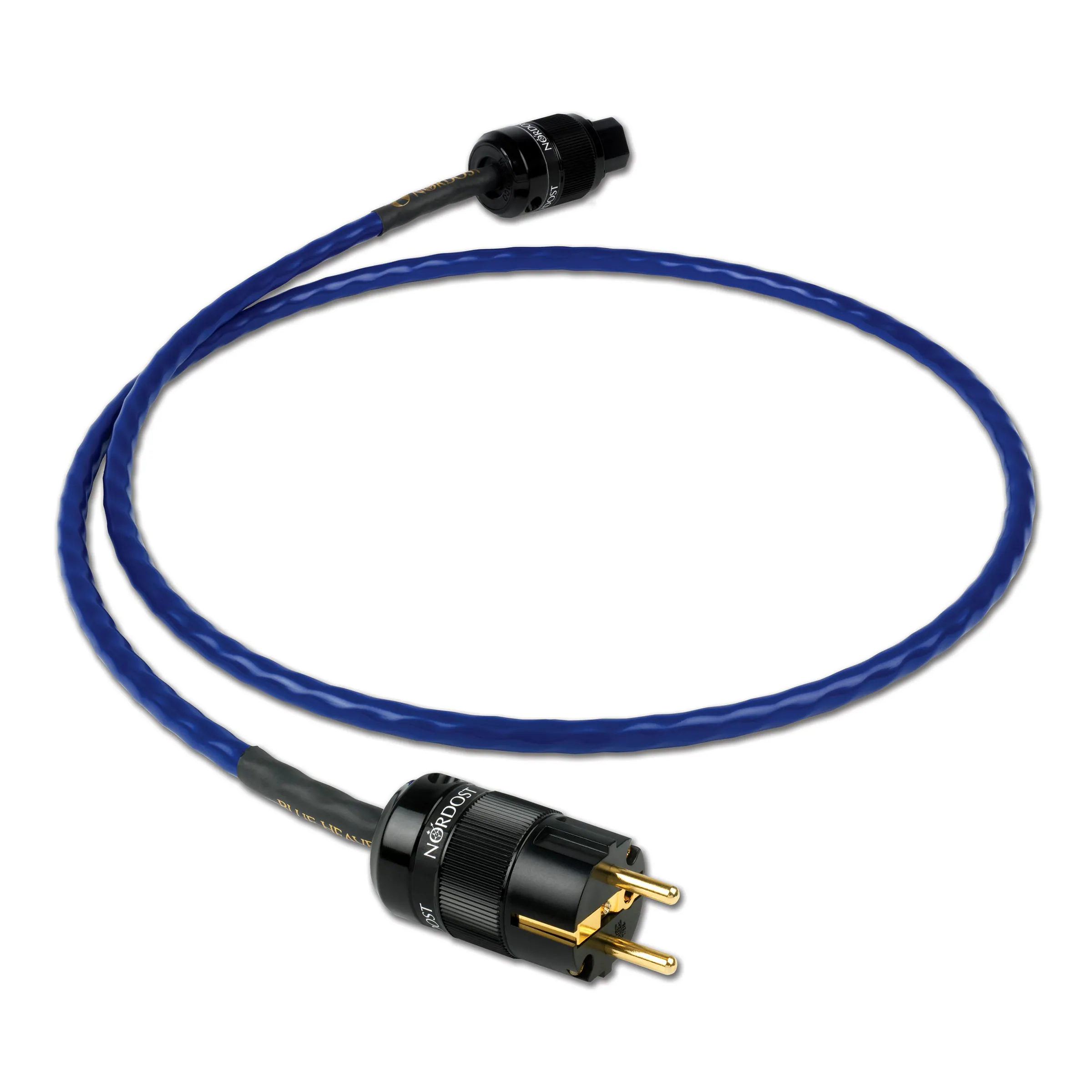

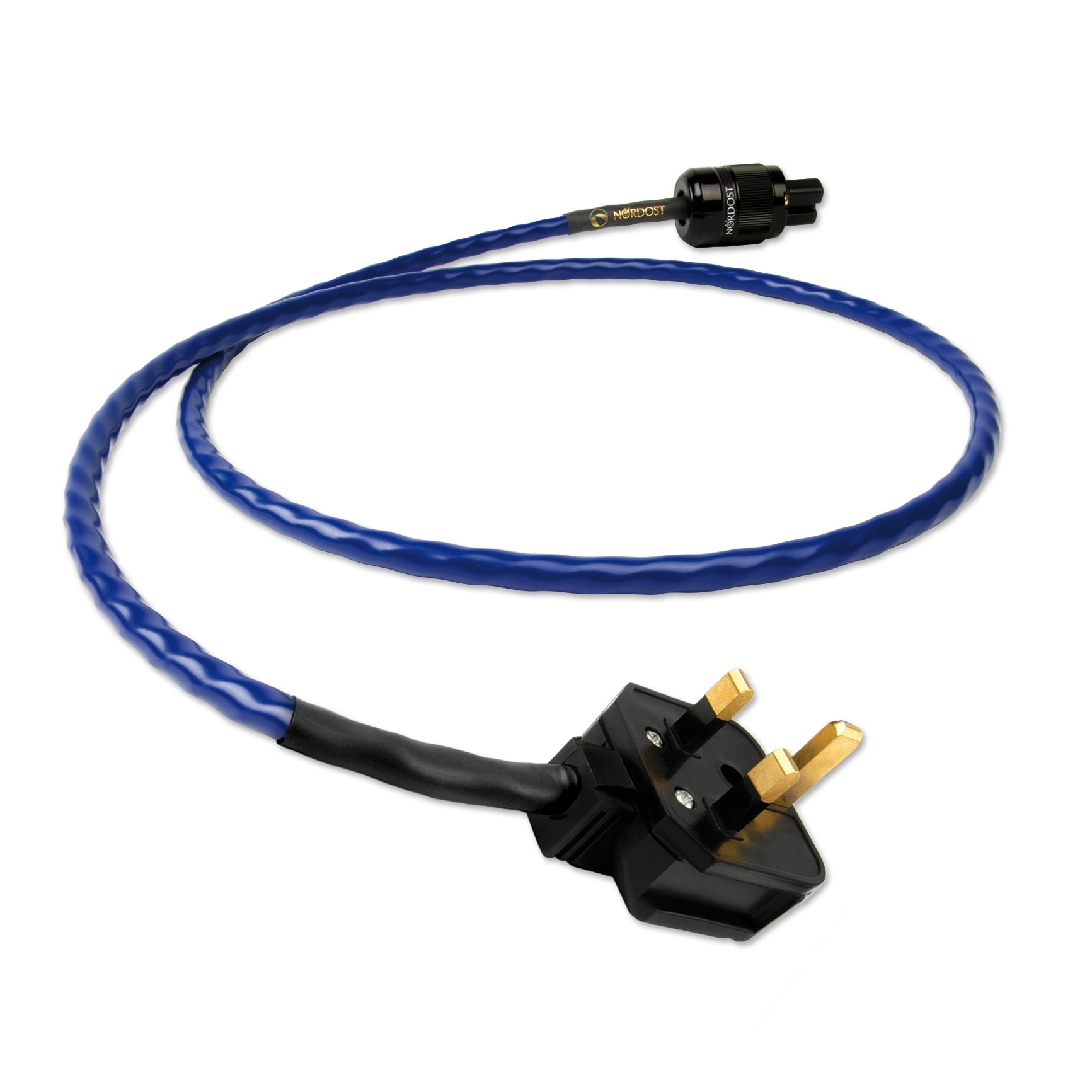

Blue Heaven Power Cord is a Nordost AC power cable with FEP insulation and Micro Mono-Filament construction. It uses 3 x 16 AWG, 65-strand 99.9999% OFC conductors. Listed termination options include US, EU, UK, or AUS mains plugs to an IEC-C15 connector.

Specifications

InsulationFluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned lay, Micro Mono-Filament design
Conductors3 x 16 AWG
Material65 strand 99.9999% OFC
Capacitance10.0pF/ft
Inductance0.155μH/ft
DC Resistance4.4 Ohms per 1000ft
Velocity of Propagation81%
TerminationUS (Nema), EU (Schuko), UK, or AUS to IEC-C15 connector
Dielectric / insulationFEP
Geometry / constructionMicro Mono-Filament
