BLUE HEAVEN SPEAKER CABLES

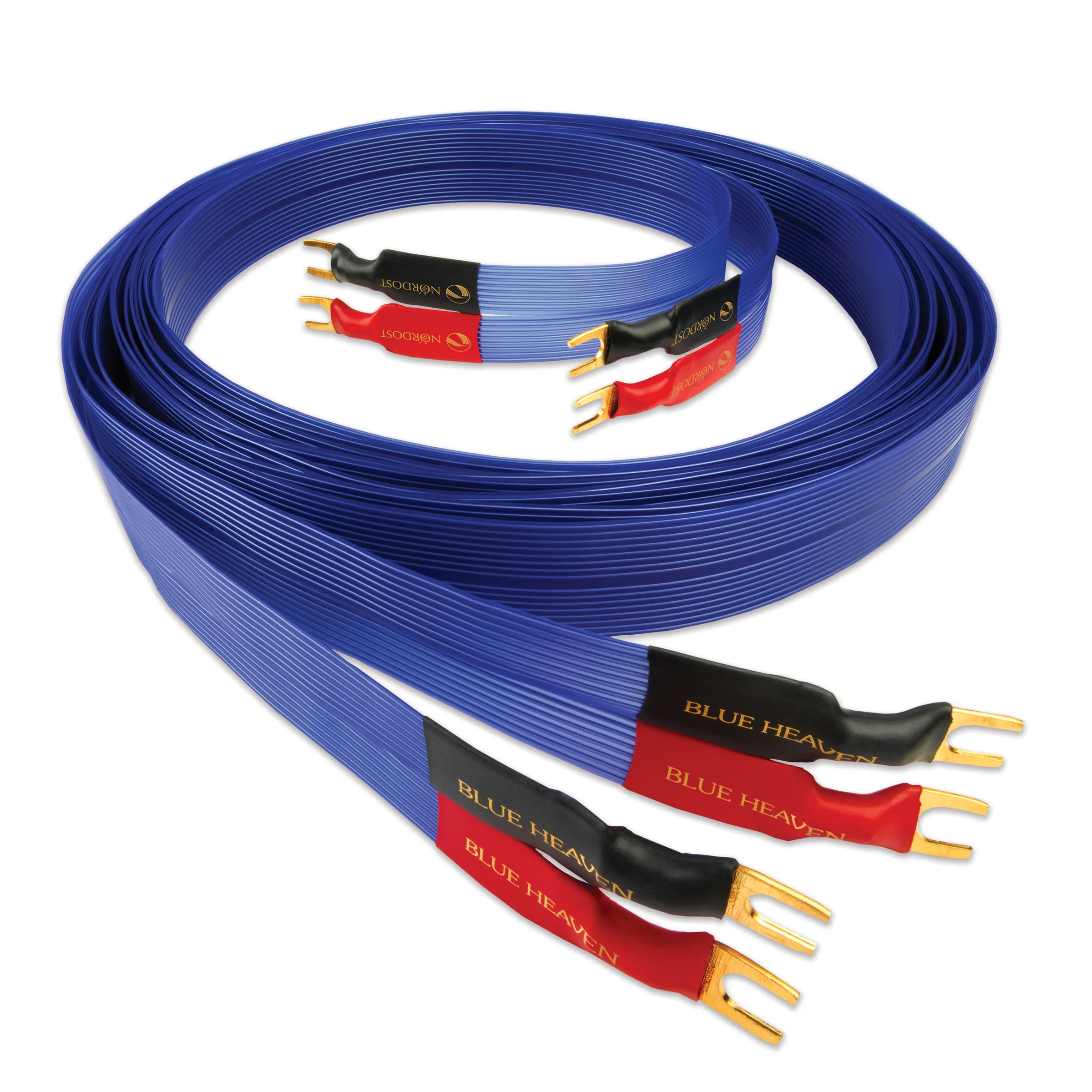

Blue Heaven LS speaker cable with 16 x 26 AWG conductors.

fig. 01 · speaker cables

BLUE HEAVEN SPEAKER CABLES

Nordost BLUE HEAVEN SPEAKER CABLES
fig. 01 · BLUE HEAVEN SPEAKER CABLESphotograph · Nordost

From Nordost

Blue Heaven Speaker Cables are Nordost Leif-series loudspeaker cables with flat ribbon-style geometry and mechanically tuned conductor spacing. The design uses 16 x 26 AWG silver-plated 99.9999% solid-core OFC conductors with FEP insulation. Standard termination is gold-plated Z-plug banana or gold-plated spade, with a larger spade option available.

Specifications

InsulationFluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned spacing
Conductors16 x 26 AWG
MaterialSilver-plated 99.9999% solid core OFC
Capacitance9.6pF/ft
Inductance0.16μH/ft
Velocity of Propagation95%
TerminationGold-plated Z-plug Banana or Gold-plated Spade (6.5mm [1/4in] internal, 12mm external) standard. Large Gold-plated Spade also available (8.5mm internal, 15mm external).
