Nordost · Interconnects · Cables
BLUE HEAVEN SUBWOOFER CABLE
Shielded Blue Heaven subwoofer cable with RCA or XLR termination.
fig. 01 · interconnects
BLUE HEAVEN SUBWOOFER CABLE
7 photographs · 5 shown
From Nordost

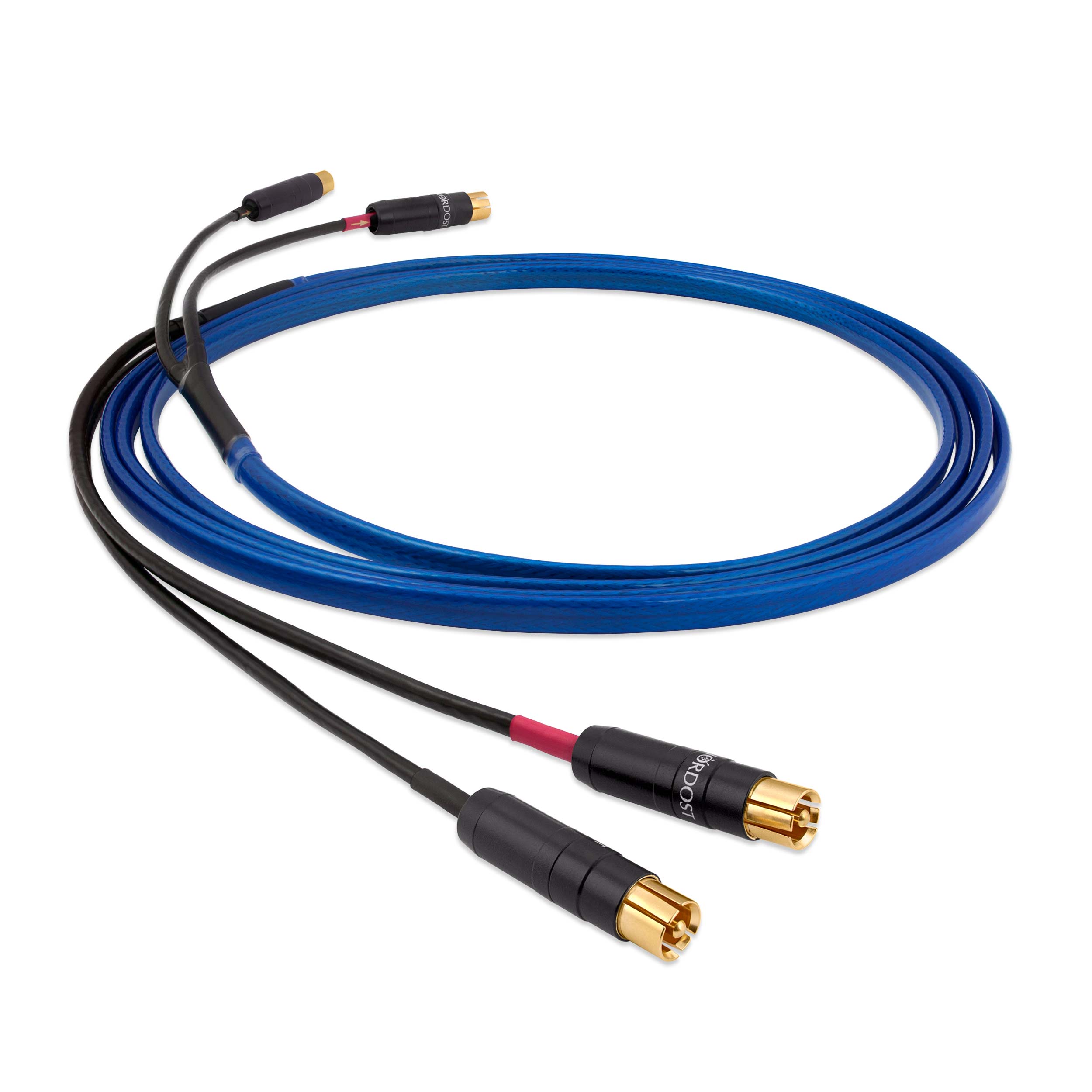

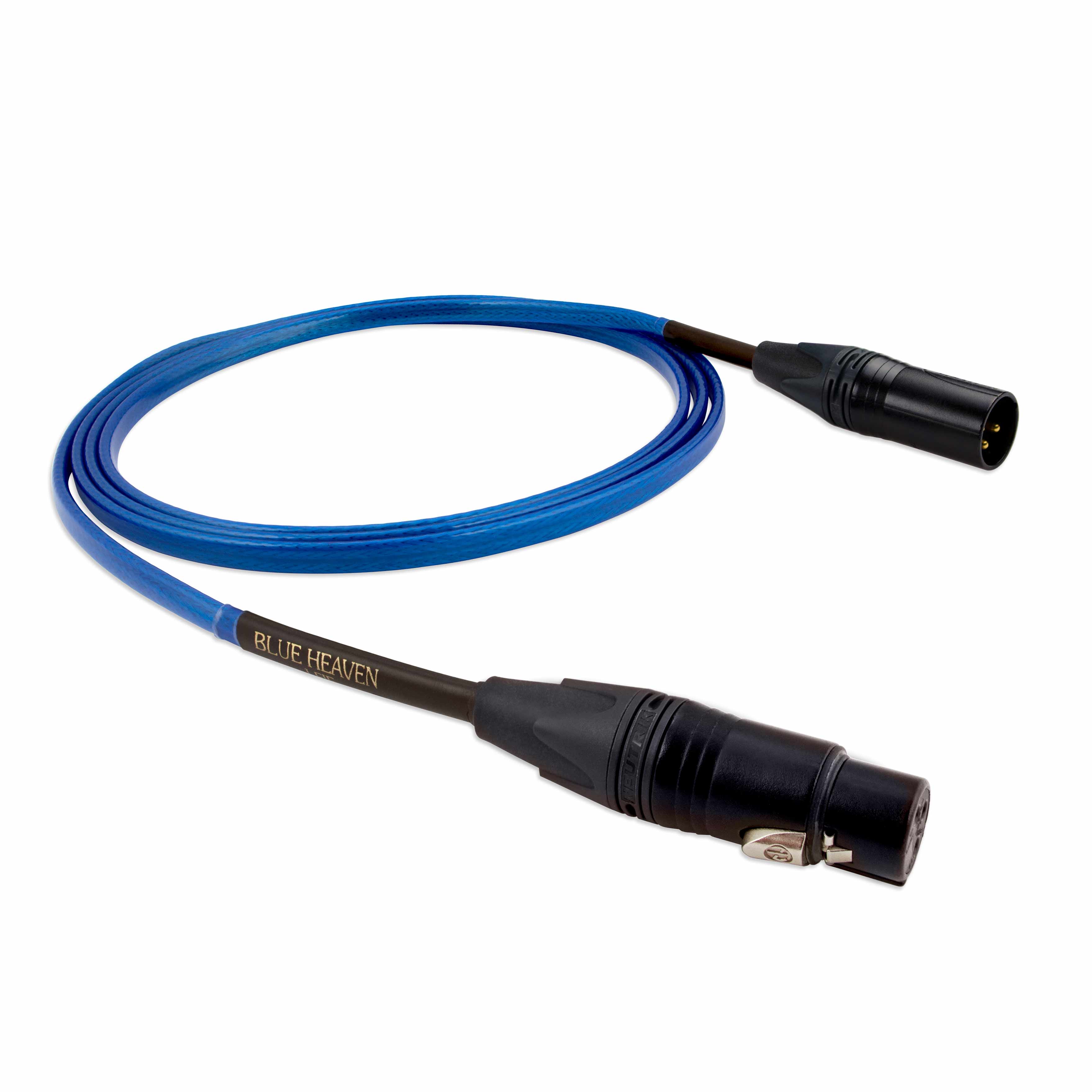

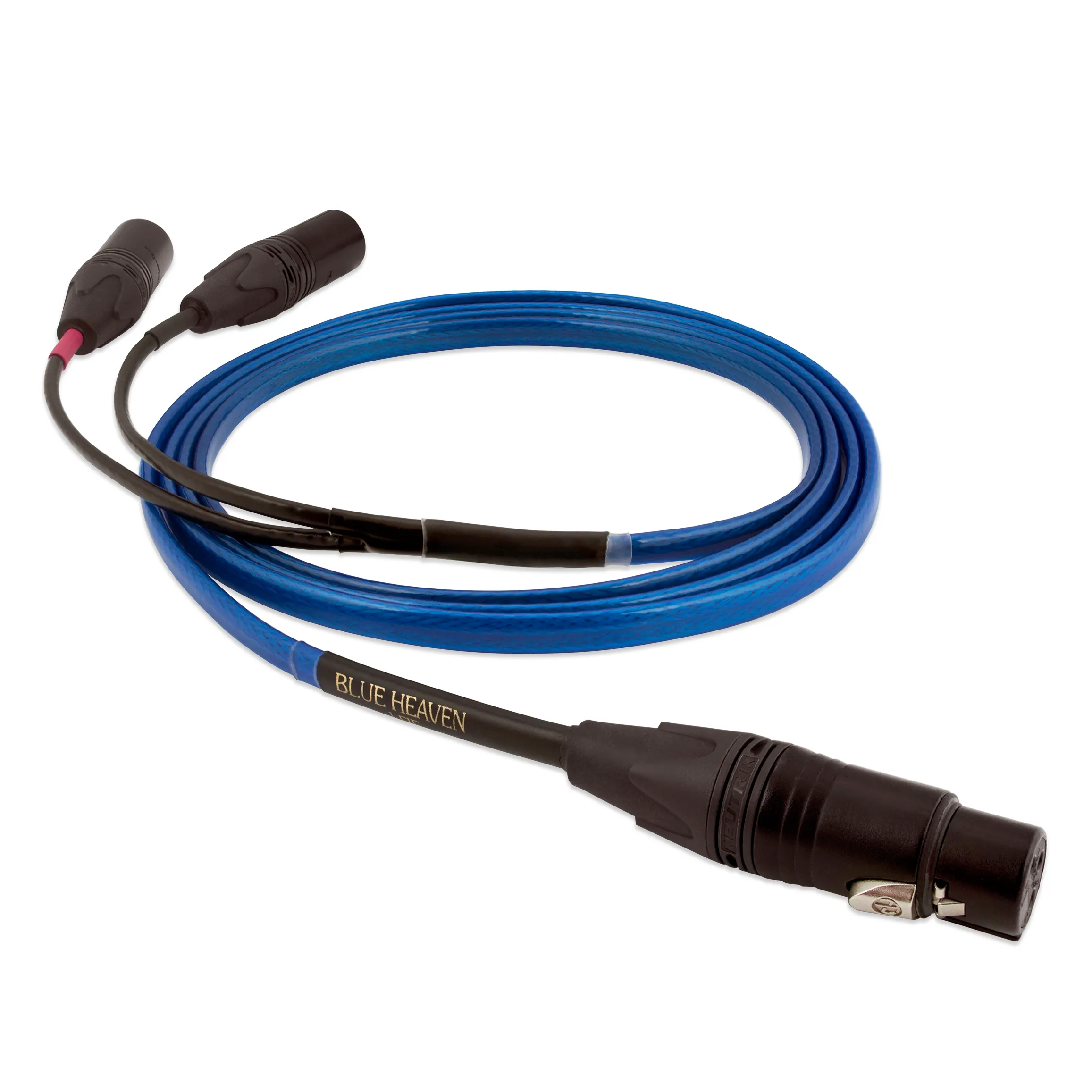

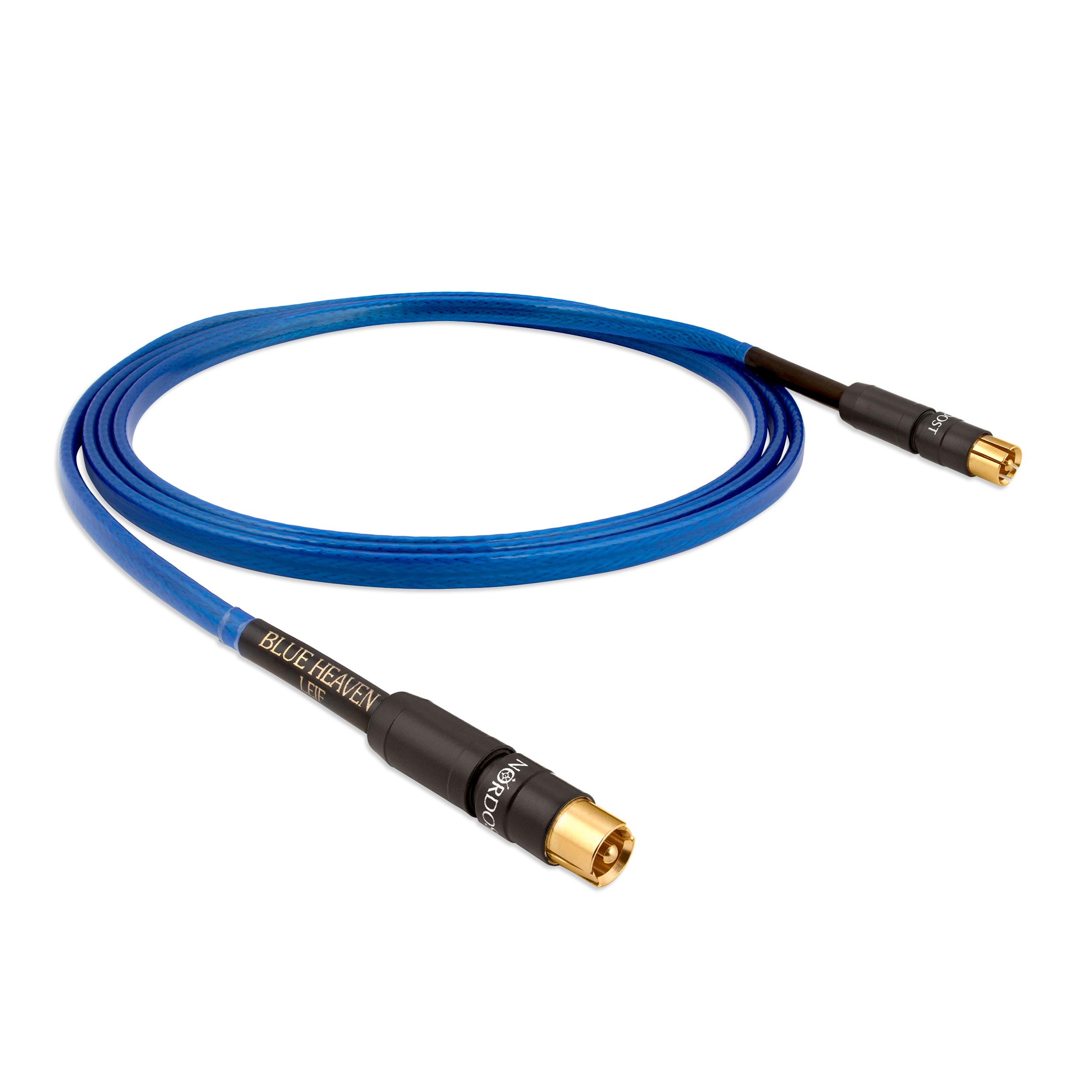

Nordost Blue Heaven Subwoofer Cable is a low-frequency cable for connecting a subwoofer into a hi-fi system. It uses four 22 AWG solid-core, silver-plated 99.9999% OFC conductors, FEP insulation, and 95% braided shield coverage. Available configurations include straight, Y, and Y-Y layouts with RCA or XLR termination.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Flat, Parallel |
| Conductors | 4 x 22 AWG |
| Material | Solid core, silver-plated 99.9999% OFC |
| Capacitance | 60.5 pF/ft (198 pF/m) |
| Inductance | 0.03 μH/ft (0.10 uH/m) |
| Overall Shield Coverage | 95% |
| Velocity of Propagation | 74% |
| Configuration | Straight, Y, or Y-Y |
| Termination | RCA or XLR |
| Conductor count | 4 |
| Conductor gauge | 22 AWG |
| Conductor material | silver-plated solid-core 99.9999% OFC |
| Dielectric / insulation | FEP extrusion |
| Shielding | braided shield |
