BLUE HEAVEN TONEARM CABLE +
Tonearm cable with 4 x 28 AWG shielded conductor pairs.
fig. 01 · interconnects
BLUE HEAVEN TONEARM CABLE +
From Nordost

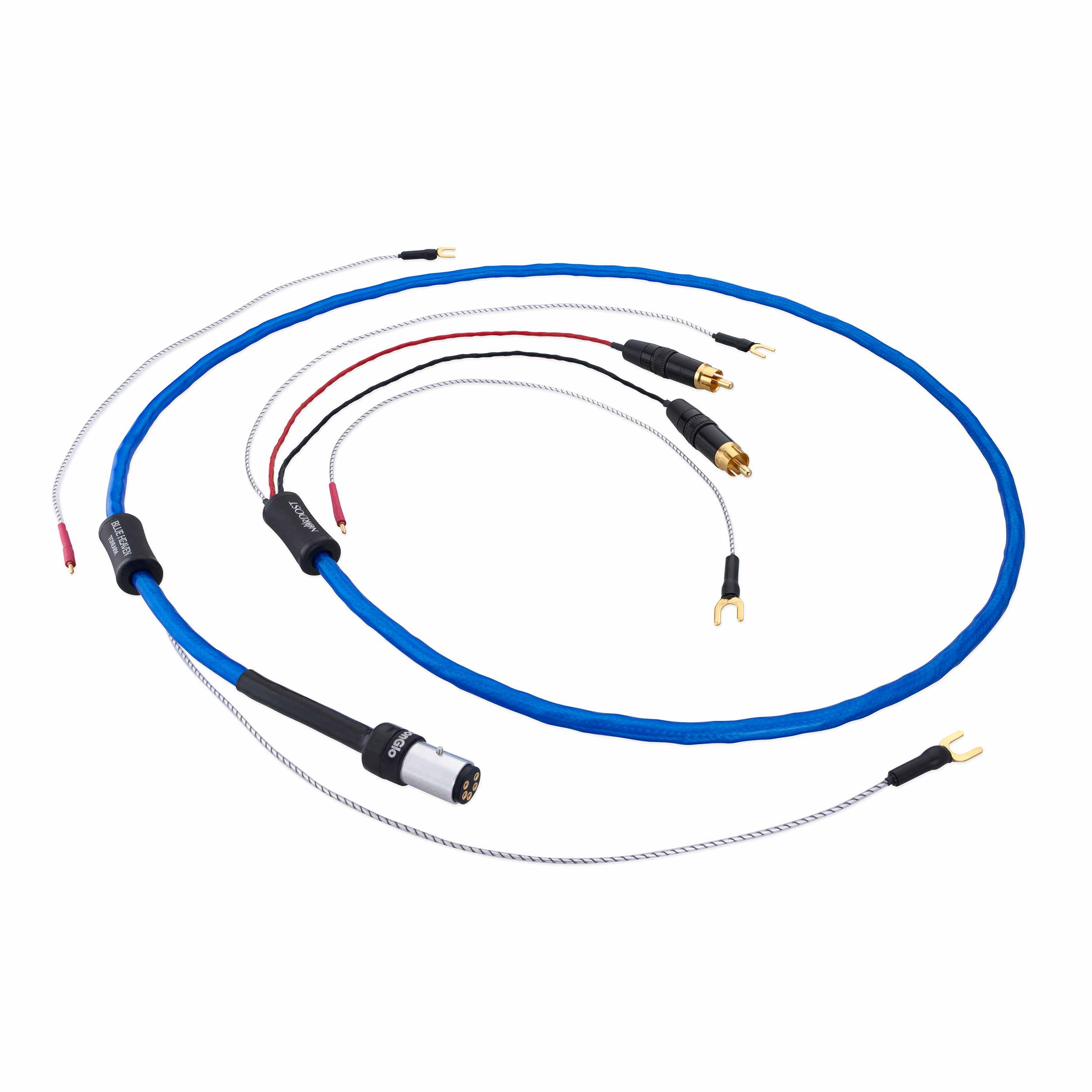

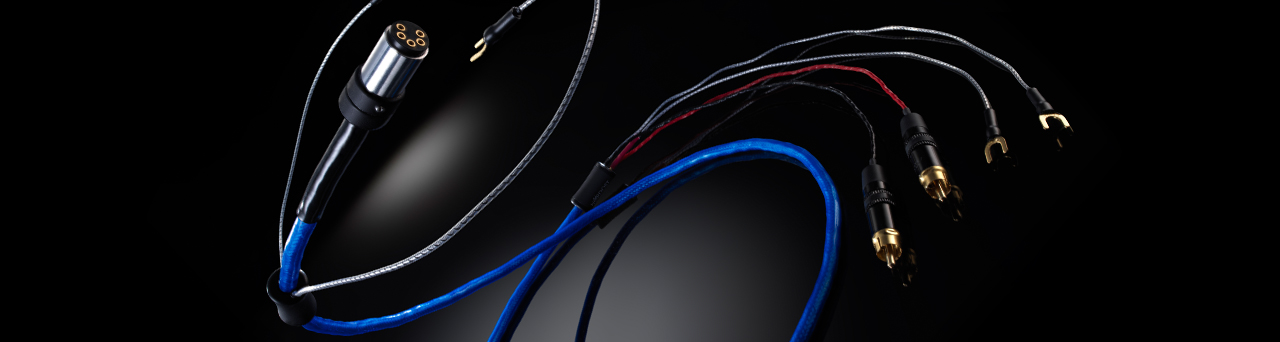

Blue Heaven Tonearm Cable + is a Nordost tonearm lead for the low-level signal path from tonearm to phono stage. It uses 2 individually shielded twisted pairs with 4 x 28 AWG silver-plated solid-core OFC conductors, FEP insulation, 97% shield coverage, and 15.13pF/ft capacitance. Termination options include low-mass 5-pin DIN, RCA, or XLR connectors, with grounding whips and bond wire terminated in gold-plated 5mm spades.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Conductors | 4 x 28 AWG |
| Construction | 2 Twisted pairs individually shielded |
| Material | Silver plated 99.9999% OFC Solid Core Conductors |
| Capacitance | 15.13pF/ft (49.5pF/m) |
| Velocity of Propagation | 74% |
| Overall Shield Coverage | 97% |
| Bond / Grounding Whips | 24 AWG silver-plated, stranded OFC, Micro Mono-Filament design. |
| Termination | MoonGlo® Straight or 90० low-mass 5-pin Din, RCA, or XLR connectors. Whips and bond wire terminated with gold-plated 5mm spades. |
