BLUE HEAVEN USB CABLE
USB 2.0 cable with Micro Mono-Filament construction.

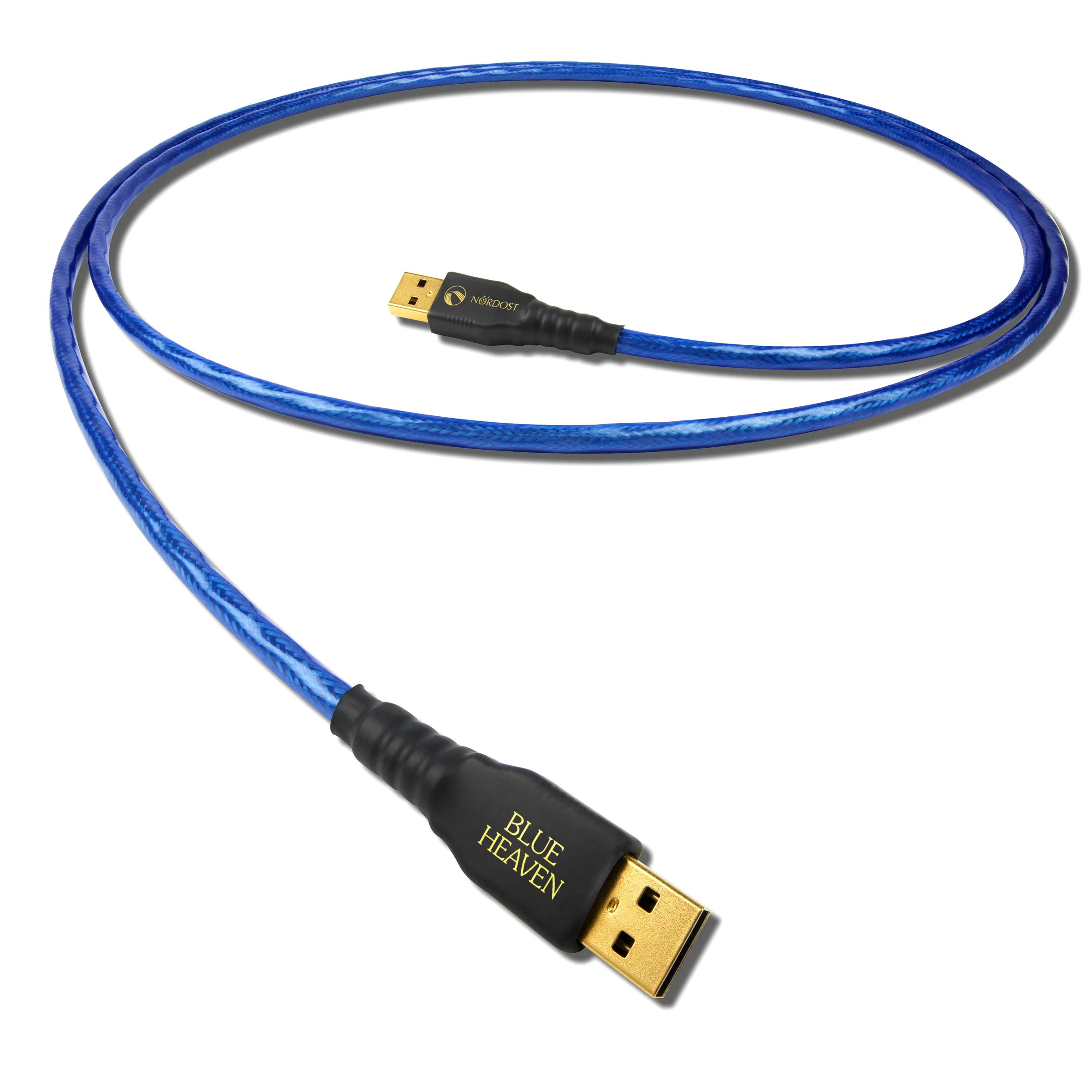

fig. 01 · usb cables
BLUE HEAVEN USB CABLE
From Nordost
Blue Heaven USB Cable is a Nordost USB 2.0 data cable for computer-audio connections. It uses four 20 AWG stranded silver-plated 99.9999% OFC conductors with FEP insulation, Micro Mono-Filament construction, and 100% shield coverage. Type A or B USB 2.0 termination is listed for this cable.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, Micro Mono-Filament and twisted shielded pair design |
| Conductors | 4 x 20 AWG |
| Material | Stranded silver-plated 99.9999% OFC |
| Overall Shield Coverage | 100% Total coverage |
| Velocity of Propagation | 86% |
| Termination | Type A or B USB 2.0 |
| Conductor count | 4 |
| Conductor material | OFC |
| Shielding | double-shielded construction |
| Connectors / termination | metal jacket in-molded connectors |
