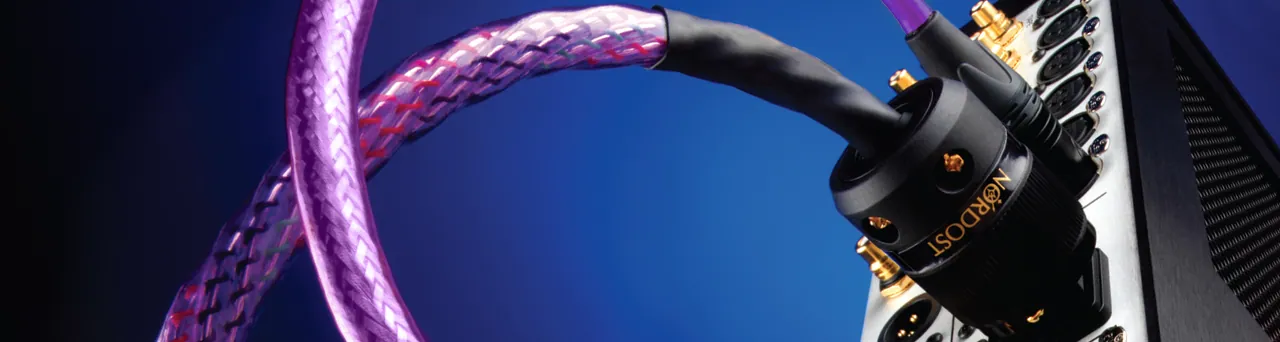

FREY 2 POWER CORD
Norse 2 power cord with 5 x 16 AWG silver-plated OFC conductors.
fig. 01 · power cables
FREY 2 POWER CORD
From Nordost
Frey 2 Power Cord uses Micro Mono-Filament construction, FEP insulation, and 5 x 16 AWG silver-plated solid-core OFC conductors. The saved specs list 2.0 ohms per 1000ft DC resistance, 85% velocity of propagation, and US, EU, UK, AUS, IEC-C15, IEC-C19, and Figure 8 IEC-C7 termination options. It sits above Heimdall 2 in this power-cord group with a higher conductor count and lower listed DC resistance.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, length and Micro Mono-Filament design |
| Conductors | 5 x 16 AWG |
| Material | Silver-plated 99.99999% solid core OFC |
| DC Resistance | 2.0 Ohms per 1000ft |
| Velocity of Propagation | 85% |
| Termination | US (Nema), EU (Schuko), UK or AUS to IEC-C15 or IEC-C19 connectors. Figure 8 IEC-C7 also available |
| Conductor material | silver-plated solid-core OFC |
| Dielectric / insulation | FEP |
