FREY 2 TONEARM CABLE +
Tonearm cable with 4 x 26 AWG conductors, low capacitance, and 98% shield coverage.
fig. 01 · interconnects
FREY 2 TONEARM CABLE +
From Nordost

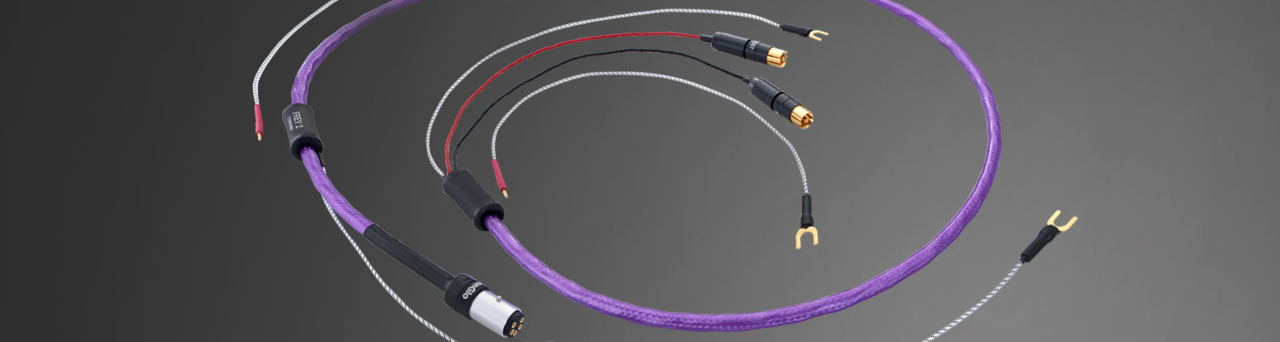

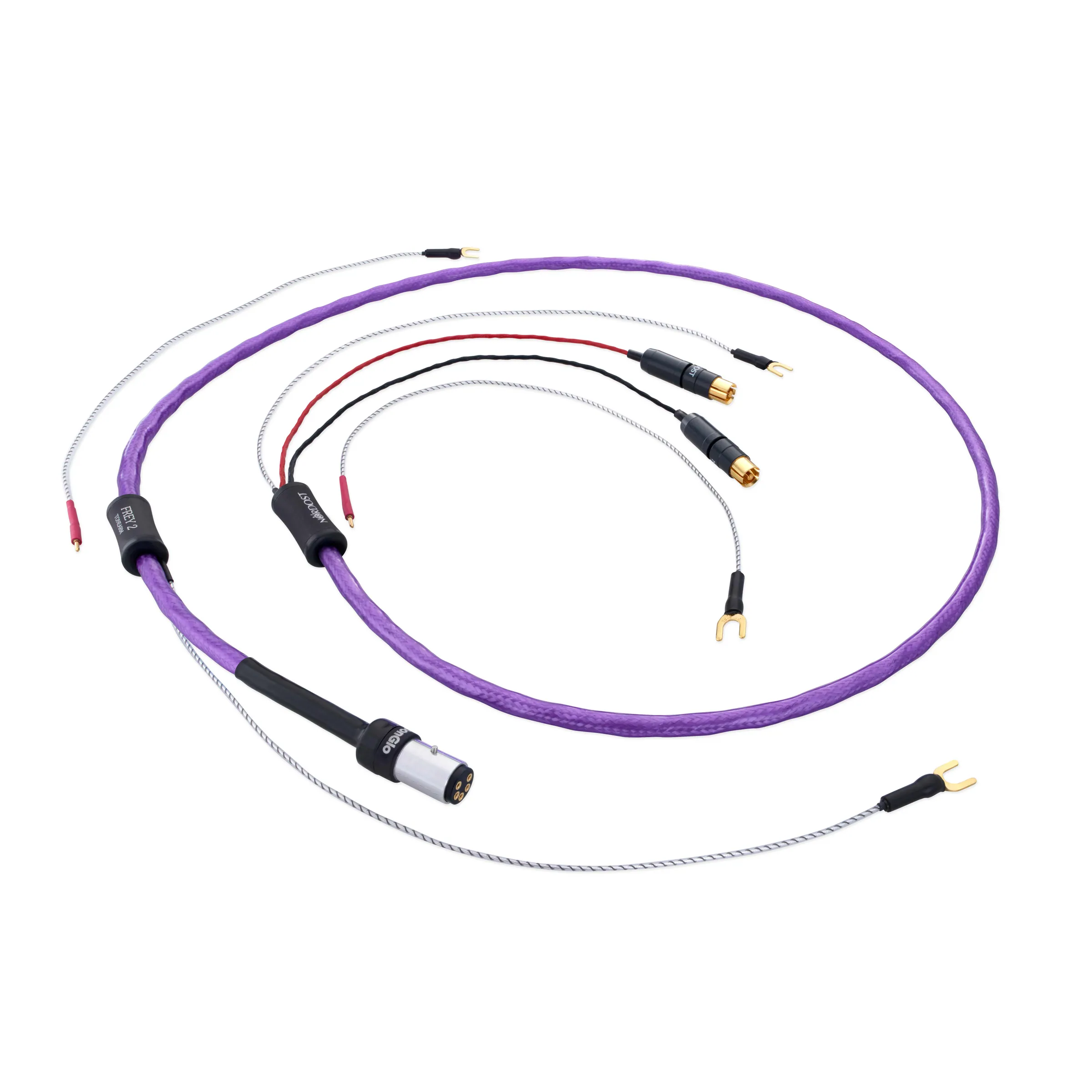

Frey 2 Tonearm Cable + is a Norse 2 tonearm cable for the low-level signal between a tonearm and phono stage. The saved specs list 4 x 26 AWG silver-plated OFC solid-core conductors, 2 individually shielded twisted pairs, FEP insulation, and 11.77pF/ft capacitance. It can be terminated with straight or 90 degree low-mass 5-pin DIN, RCA, or XLR connectors, with separate grounding whips and gold-plated 5mm spades.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Conductors | 4x26 AWG |
| Construction | 2 Twisted pairs individually shielded. Mechanically tuned lay and lengths. Dual Mono-Filament design. |
| Material | Silver plated 99.99999% OFC Solid Core Conductors |
| Capacitance | 11.77pF/ft (38.5pF/m) |
| Velocity of Propagation | 76% |
| Overall Shield Coverage | 98% |
| Bond / Grounding Whips | 24 AWG silver-plated, stranded OFC, Micro Mono-Filament design. |
| Terminations | MoonGlo® Straight or 90° low-mass 5-pin Din, RCA, or XLR connectors. |
| Terminations (Whips & Bond) | Whips and bond wire terminated with gold-plated 5mm spades. |
