HEIMDALL 2 ANALOG INTERCONNECTS

Analog interconnect with 4 x 24 AWG silver-plated OFC conductors.

fig. 01 · interconnects

HEIMDALL 2 ANALOG INTERCONNECTS

Nordost HEIMDALL 2 ANALOG INTERCONNECTS

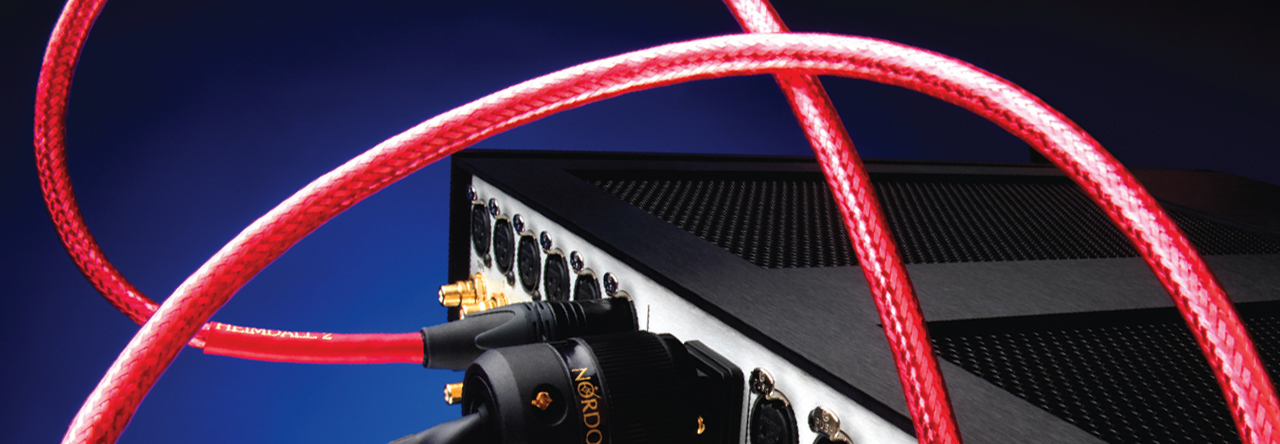

fig. 01 · HEIMDALL 2 ANALOG INTERCONNECTSphotograph · Nordost

From Nordost

Heimdall 2 Analog Interconnects use 4 x 24 AWG silver-plated 99.99999% solid-core OFC conductors with FEP insulation and Dual Mono-Filament construction. The saved specs list 25.0pF/ft capacitance, 0.06uH/ft inductance, 97% shield coverage, and 85% velocity of propagation. Termination options are gold-plated Nordost MoonGlo RCA or XLR connectors.

Specifications

InsulationFluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned lay, length and Dual Mono-Filament design
Conductors4 x 24 AWG
MaterialSilver-plated 99.99999% solid-core OFC
Capacitance25.0pF/ft
Inductance0.06μH/ft
Overall Shield Coverage97%
Velocity of Propagation85%

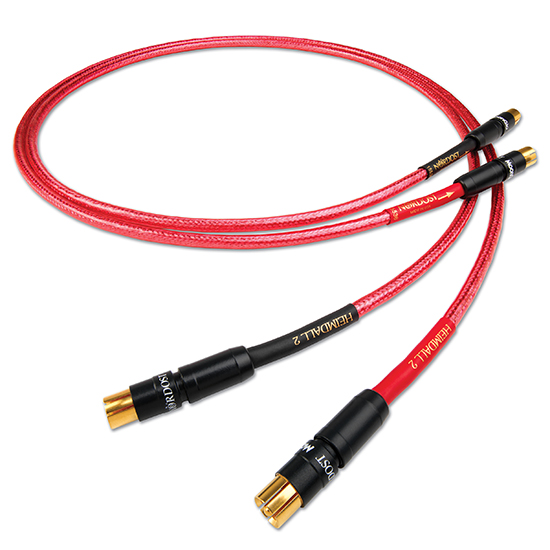

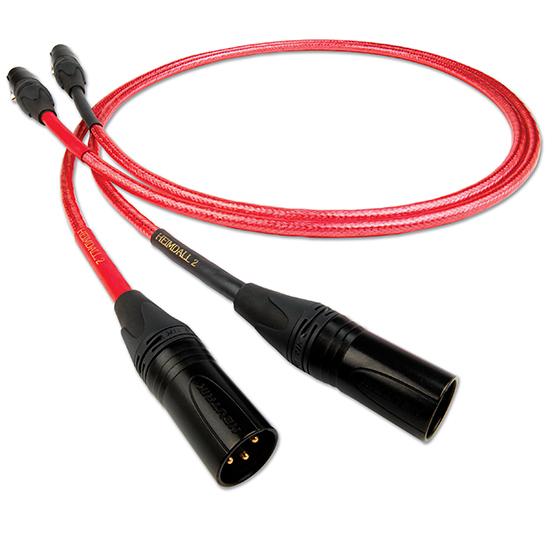

TerminationGold-plated Nordost MoonGlo® RCA or XLR
Conductor materialsilver-plated solid-core OFC
Dielectric / insulationFEP
